2005 Suzuki DR650SE Rear Swinging ARM Diagram

← All diagrams

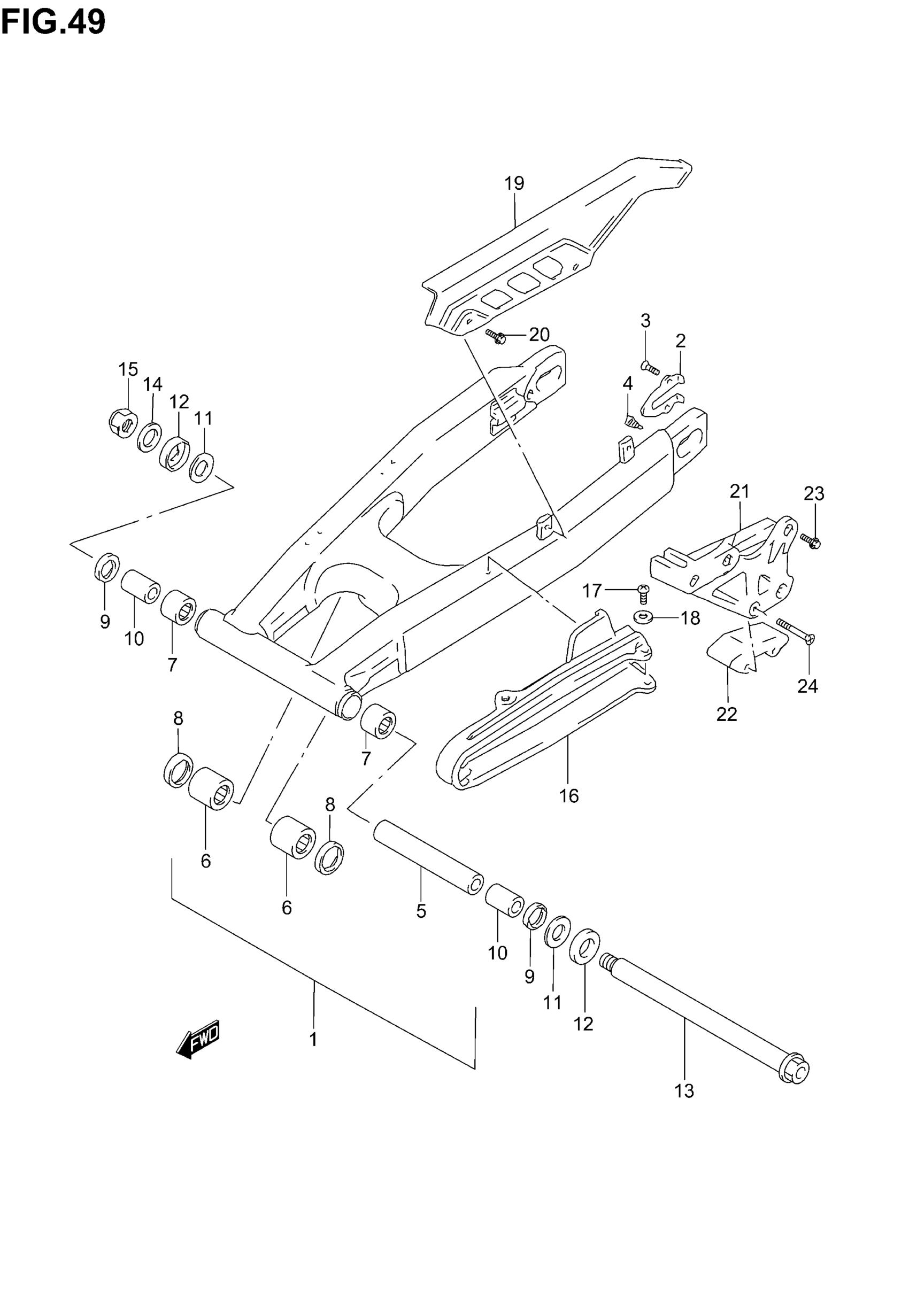

Find the part on the Rear Swinging ARM diagram for your 2005 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR650SE Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

.PLATE RR SWING ARM AXLE

61128-29E00

1
Out of stock

3

SCREW (5X8)

09126-05009

2
Out of stock

4

BOLT, STOPPER (10X17)

61431-13E00

2

$13.03

In stock

5

SPACER, PIVOT

61282-32E00

1
Out of stock

6

BEARING, ROD (20X27X23.5)

09263-20071

2
Out of stock

7

2

$21.98

In stock

8

SEAL, ROD OIL (20X27X5)

09283-20031

2
Out of stock

9

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

2
Out of stock

10

SPACER, PIVOT BEARING

61251-14D00

2

$31.55

In stock

11

WASHER

08211-17341

2

$2.73

In stock

12

2

$7.00

In stock

13

AXLE,REAR

64711-08D00

1

$115.35

In stock

14

1

$2.00

In stock

15

NUT

09159-16007

1

$12.21

In stock

16

1

$45.69

In stock

17

3

$1.35

In stock

18

WASHER

09169-06057

3

$3.14

In stock

19

CASE, CHAIN

61311-01A03

1
Out of stock

20

BOLT (6X10)

09116-06096

2
Out of stock

21

GUIDE, CHAIN

61340-15E00

1

$79.33

In stock

22

DEFENSE, CHAIN GUIDE

61348-15E00

1

$29.55

In stock

23

BOLT This part replaces 01550-06163.

01550-0616A

3
Out of stock

24

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

2
Out of stock
