Description

Price

1

HUB,FRONT WHEEL

54111-31D01

$345.75

2

SPACER,FRONT HUB BEARING

54731-32E00

$20.88

3

BEARING

08123-60037

$19.92

4

OIL SEAL (23X35X6)

09284-23001

$7.33

5

AXLE, FRONT

54711-05D01

$110.18

6

SPACER, AXLE, LH

54751-05D00

$22.07

7

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$139.57

8

DISC,FRONT BRAKE

59220-32E00

$676.73

9

BOLT (8X20)

09106-08155

$3.44

10

TIRE,FRONT (90/90-21 54S) This part replaces 55110-32E00.

55110-32E01

$76.38

11

TUBE ASSY, WHEEL INNER This part replaces 55200-32E00.

55200-32E01

$66.32

12

PROTECTOR WHL INR TUBE This part replaces 55261-32E00.

55261-32E01

$5.32

13

RIM, FRONT WHEEL (1.85X21)

55311-44B00

$543.37

14

SPOKE SET,FRONT WHEEL

55320-31D00

$116.62

15

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

15

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$9.95

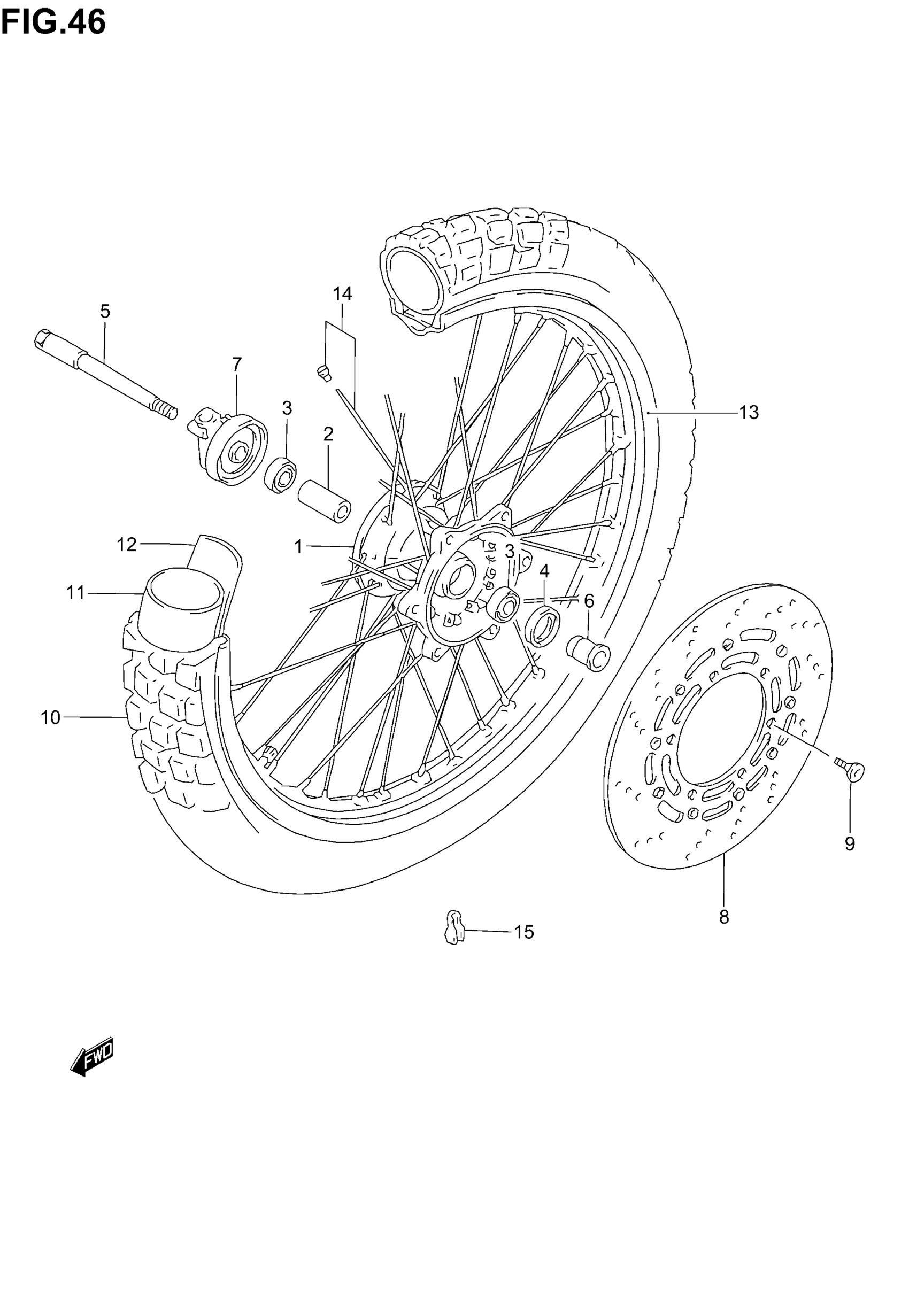

Suzuki DR650SE (2005) FRONT WHEEL Diagram
