Description

Price

1

COOLER ASSY,OIL

16600-32E00

$892.05

2

BOLT (8X28) This part replaces 09116-08105.

09116-08120

$4.68

3

SPACER

09180-08193

Unavailable

4

CUSHION,OIL COOLER

16629-12D00

$4.33

5

HOSE, OIL COOLER NO.1

16460-32E00

$175.98

6

HOSE, OIL COOLER NO.2

16470-32E00

$156.75

7

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

8

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

9

O RING (D:2.4,ID:11.8)

09280-12012

$4.64

10

GUARD,OIL COOLER

16640-32E11

$82.87

11

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

12

BUMPER,OIL COOLER

16650-32E00

$74.52

13

SCREW This part replaces 02162-05103.

02162-0510A

$2.07

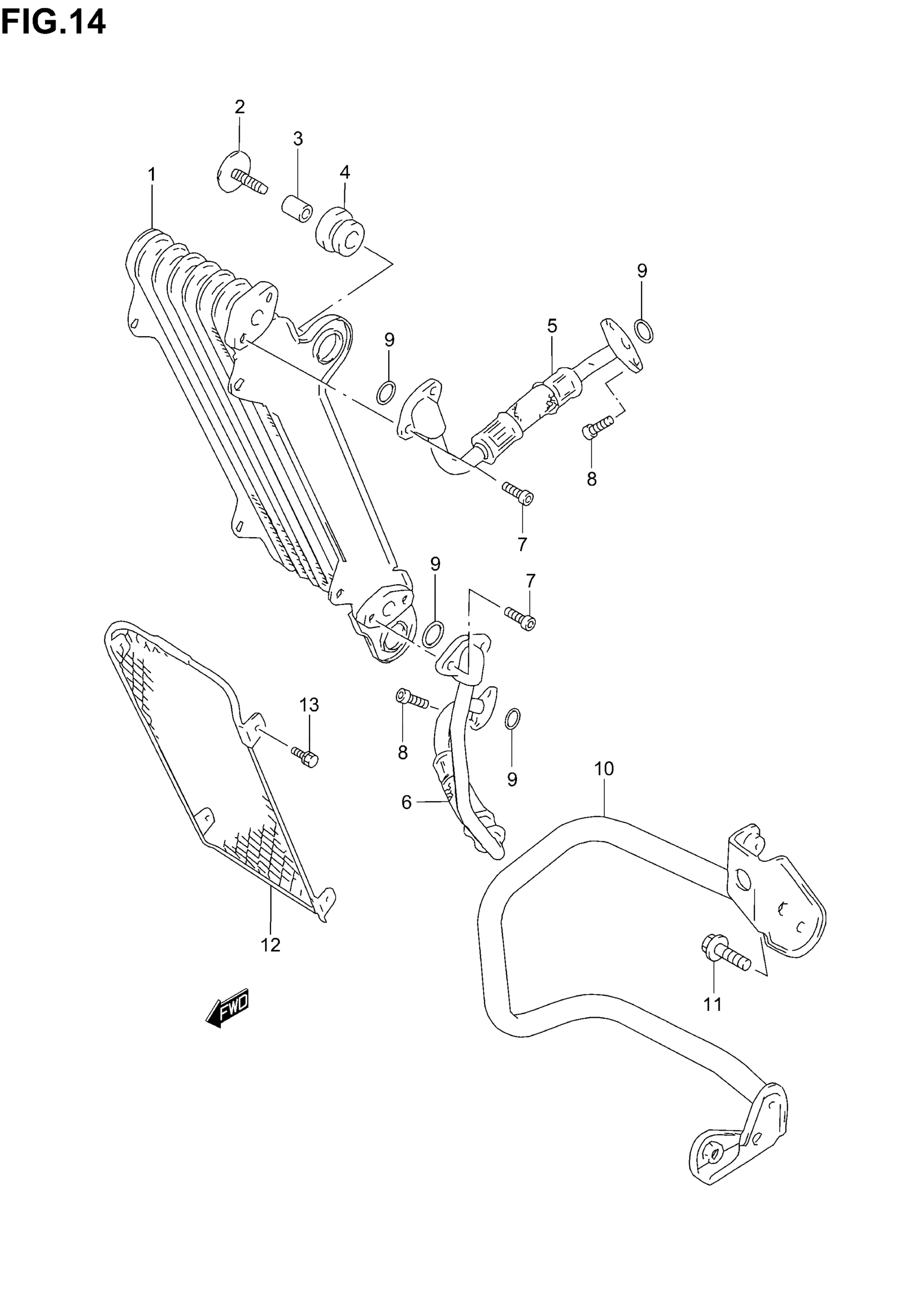

Suzuki DR650SE (2005) OIL COOLER Diagram
