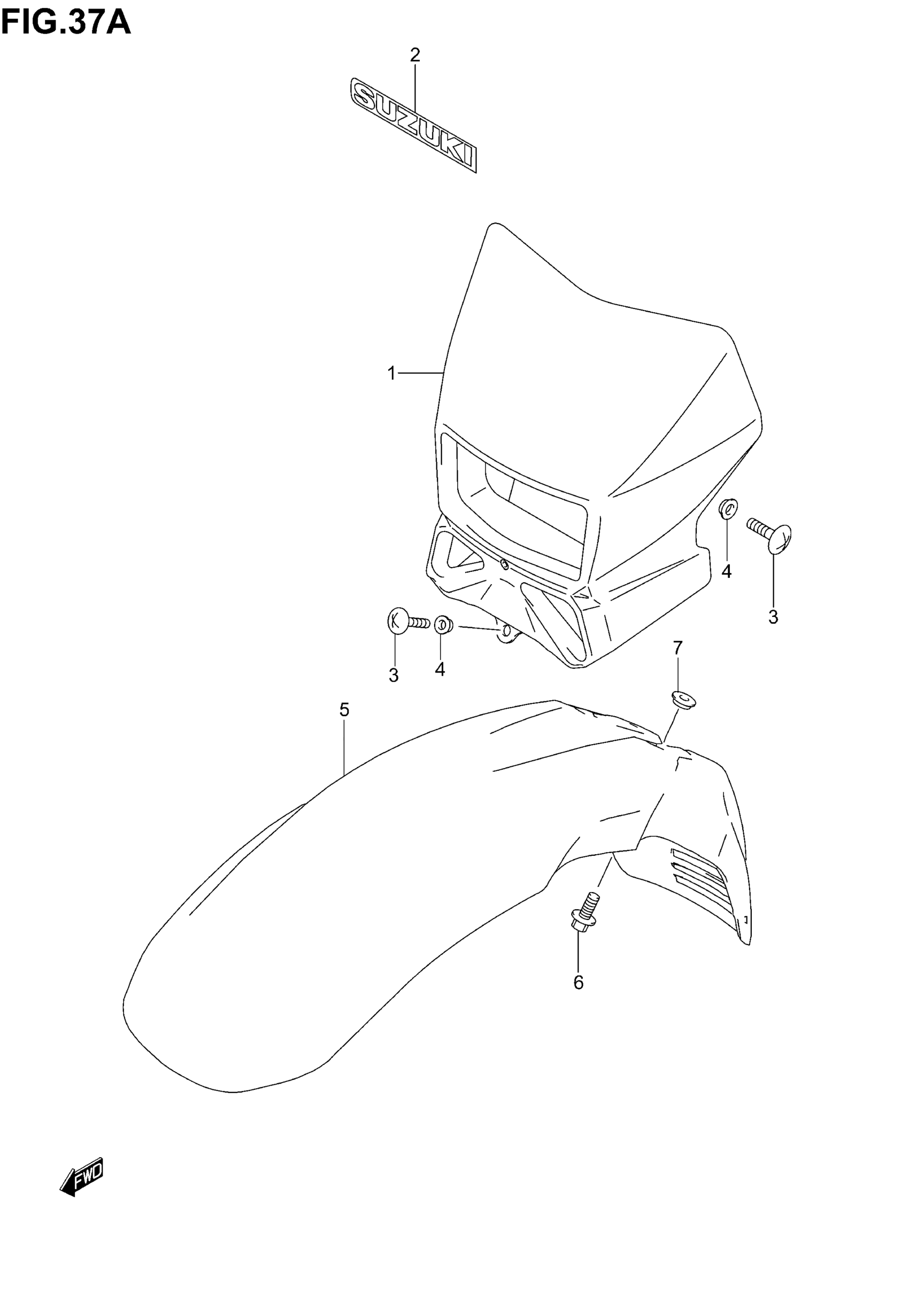

Suzuki DR650SE (2005) HEADLAMP HOUSING (MODEL K2) Diagram

#

Description

Price

1

COVER HEADLAMP (WHITE) | FOR N9J This part replaces 51811-29F10-30H.

51811-29F50-30H

$116.87

1

COVER, HEADLAMP (YELLOW) | FOR YU1 This part replaces 51811-29F10-YU1.

51811-29F50-YU1

$116.87

2

EMBLEM, SUZUKI | FOR N9J

68721-29F00-8YM

$12.73

2

EMBLEM, SUZUKI | FOR YU1

68721-29F00-GY8

$12.97

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

4

WASHER, COVER SIDE

09169-06033

$1.50

5

FENDER, FRONT (BLUE) | FOR N9J

53111-13E00-YJ4

Unavailable

5

FENDER, FRONT (YELLOW) | FOR YU1

53111-13E00-YU1

$135.22

6

BOLT

09116-06170

$2.50

7

WASHER

09169-06073

$3.42
