Description

Price

1

HANDLEBAR (BLACK)

56110-32E00-291

$147.54

2

BALANCER SET,HA | MODEL K1/K2/K3; Includes Item(s) 3 - 6 This part replaces 56200-32821.

56200-32823

$24.87

3

SCREW | MODEL K1/K2/K3 This part replaces 02122-06803.

02122-0680B

$3.72

4

NUT | MODEL K1/K2/K3 This part replaces 08316-10083.

08316-1008B

$2.66

5

EXPANDER | MODEL K1/K2/K3

56272-44500

$4.42

6

NUT | MODEL K1/K2/K3

09159-06024

$2.11

7

BALANCER SET,HN | MODEL K4/K5; Includes Item(s) 8 - 11 This part replaces 56200-16820.

56200-16823

$32.93

8

SCREW | MODEL K4/K5 This part replaces 02122-06603.

02122-0660B

$3.04

9

WASHER | MODEL K4/K5

09160-06131

$2.50

10

.EXPANDER,HANDLE BALANCER | MODEL K4/K5 This part replaces 56272-10G00.

56272-10G01

$4.72

11

NUT | MODEL K4/K5 This part replaces 56273-10G00.

56273-10G10

$8.65

12

MIRROR ASSY RR VIEW R This part replaces 56500-12D02.

56500-06G30

$156.05

13

MIRROR ASSY RR VIEW L | Includes Item(s) 14 This part replaces 56600-12D02.

56600-06G30

$156.05

14

CAP This part replaces 56524-28600.

56524-28601

$4.63

15

CABLE ASSY,CLUTCH

58200-32E01

$38.37

16

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

17

STOPPER,CLUTCH CABLE

58634-32E00

$15.00

18

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

19

CABLE ASSY,THROTTLE

58300-32E00

$81.84

20

CABLE,STARTER

58410-32E00

$37.77

21

CLIP

09408-00066

$2.07

22

CLAMP

09407-25401

$4.66

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

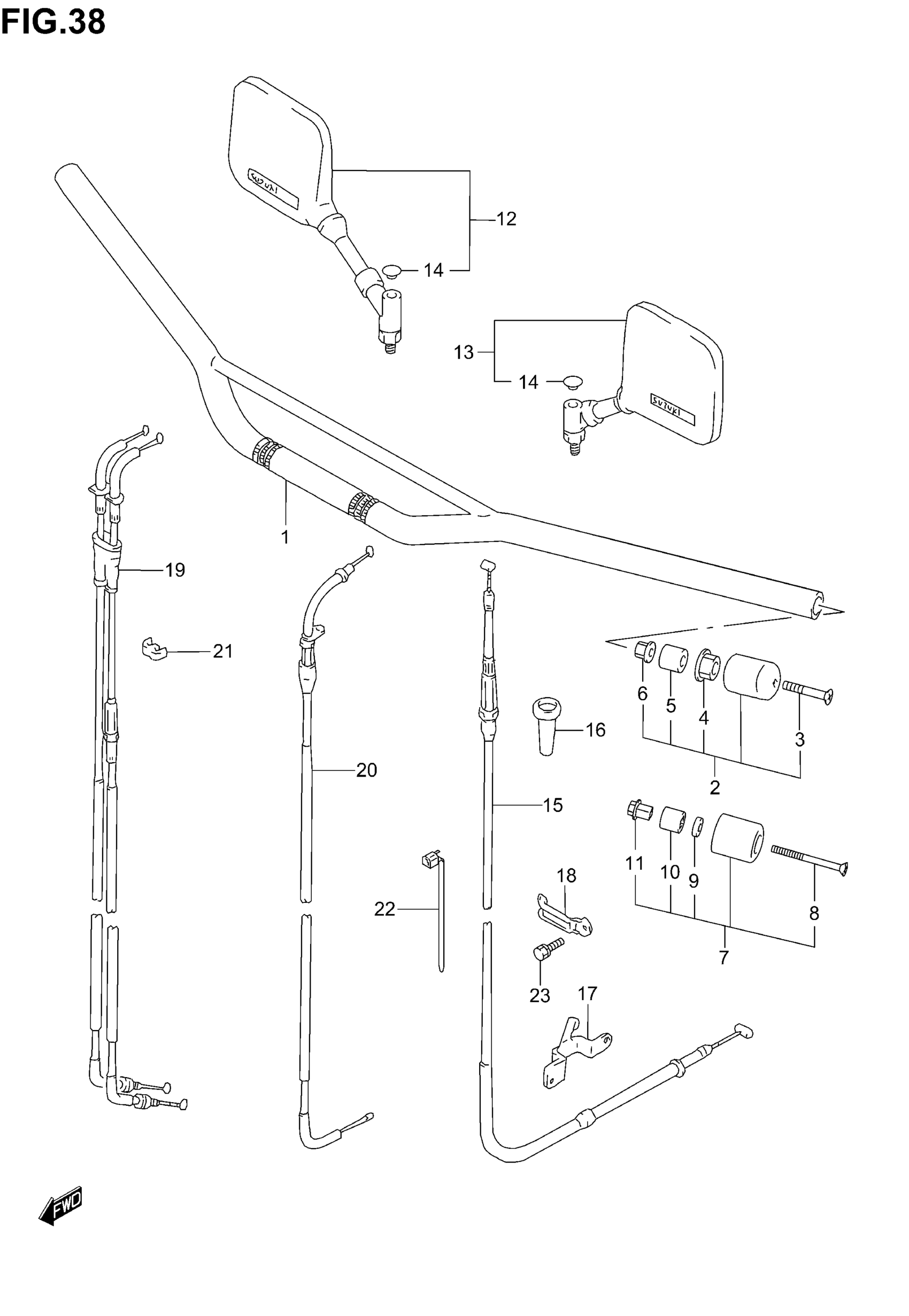

Suzuki DR650SE (2005) HANDLEBAR Diagram
