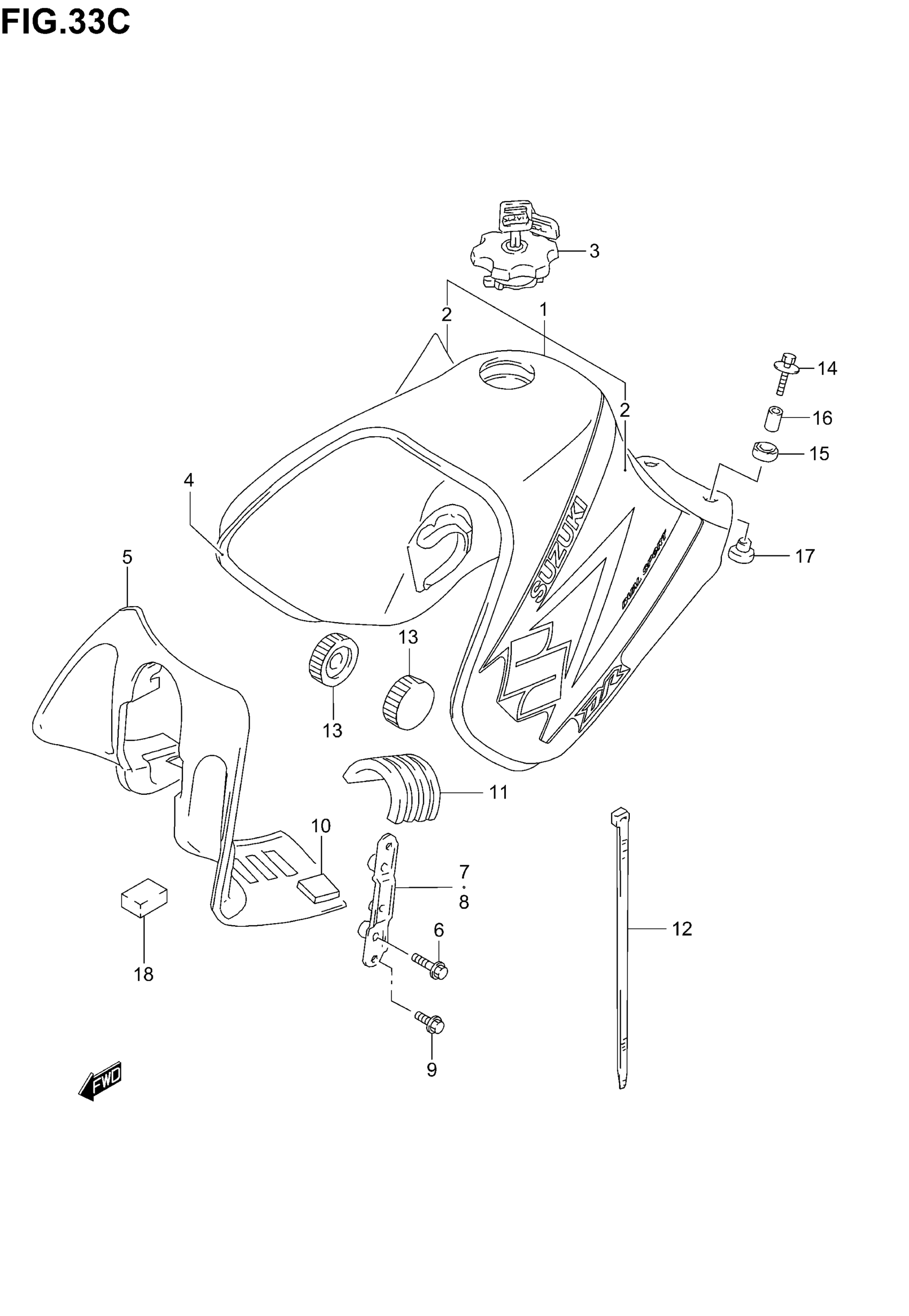

Suzuki DR650SE (2005) FUEL TANK (MODEL K4) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR N9J

44100-32EE0-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | FOR YU1

44100-32EE0-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR N9J

44100-32EF0-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E33 FOR YU1; Includes Item(s) 2 - 2

44100-32EF0-YU1

Unavailable

2

TAPE SET, FUEL TANK | FOR YC2

68110-32E70-ABM

Unavailable

2

TAPE SET, FUEL TANK | FOR YU1

68110-32E70-NN2

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-13830.

44200-13831

$130.18

3

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

4

MOLDING,FUEL TANK

68241-32E00

$56.05

5

COVER,FUEL TANK,FRONT

44271-32E00

$57.77

6

BOLT,6X14 This part replaces 09116-06098.

09116-06098-XC0

$2.47

7

BRACKET, FRONT COVER RH

44280-32E00

Unavailable

8

BRACKET, FRONT COVER LH

44290-32E00

Unavailable

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

10

CUSHION This part replaces 51827-12E00.

51827-01A00

$6.17

11

CUSHION, UPPER REAR

44541-13E00

$16.65

12

CLAMP

09407-25402

$4.64

13

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.93

14

BOLT, REAR

09116-06172

$2.50

15

CUSHION, UPPER

09320-14022

$3.63

16

SPACER

09180-06271

$2.35

17

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

18

CUSHION This part replaces 44613-13600.

44831-17B00

$6.70
