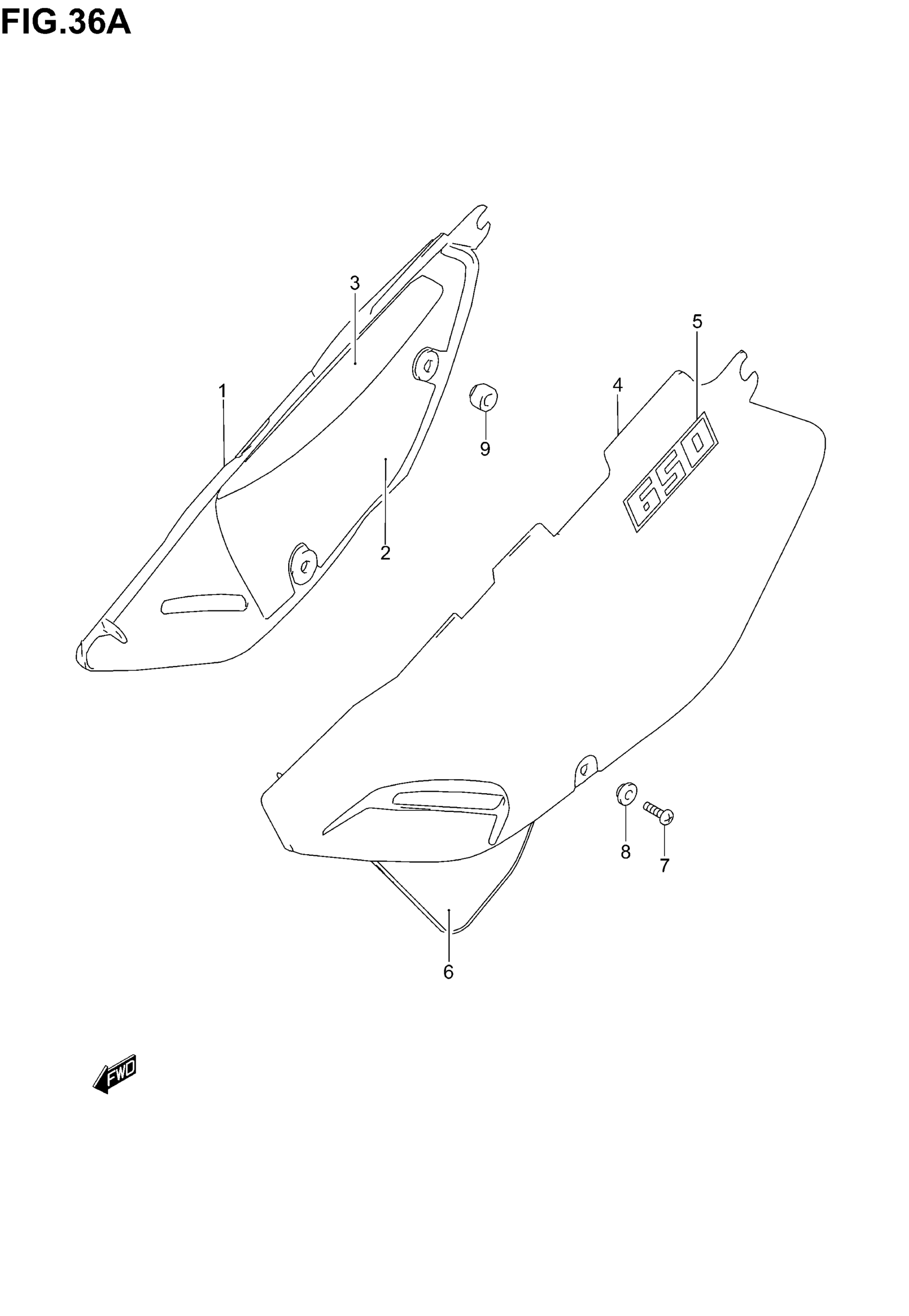

Suzuki DR650SE (2005) FRAME COVER (MODEL K2) Diagram

#

Description

Price

1

COVER,FRAME RH (WHITE) | FOR N9J This part replaces 47111-32E00-30H.

47111-32E10-30H

$137.28

1

COVER, FRAME RH (YELLOW) | FOR YU1

47111-32E00-YU1

$145.88

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

4

COVER,FRAME LH (WHITE) | FOR N9J This part replaces 47211-32E00-30H.

47211-32E10-30H

$137.28

4

COVER, FRAME LH (YELLOW) | FOR YU1

47211-32E00-YU1

$145.88

5

EMBLEM | FOR N9J

68131-32E10-8YM

Unavailable

5

EMBLEM | FOR YU1

68131-32E10-GY8

Unavailable

6

TAPE, NO.2, LH

68146-32E00

$15.08

7

SCREW

02142-06167

$1.49

8

WASHER This part replaces 09169-06028.

09169-06041

$2.20

9

CUSHION, MUFFLER

09321-10019

$4.90
