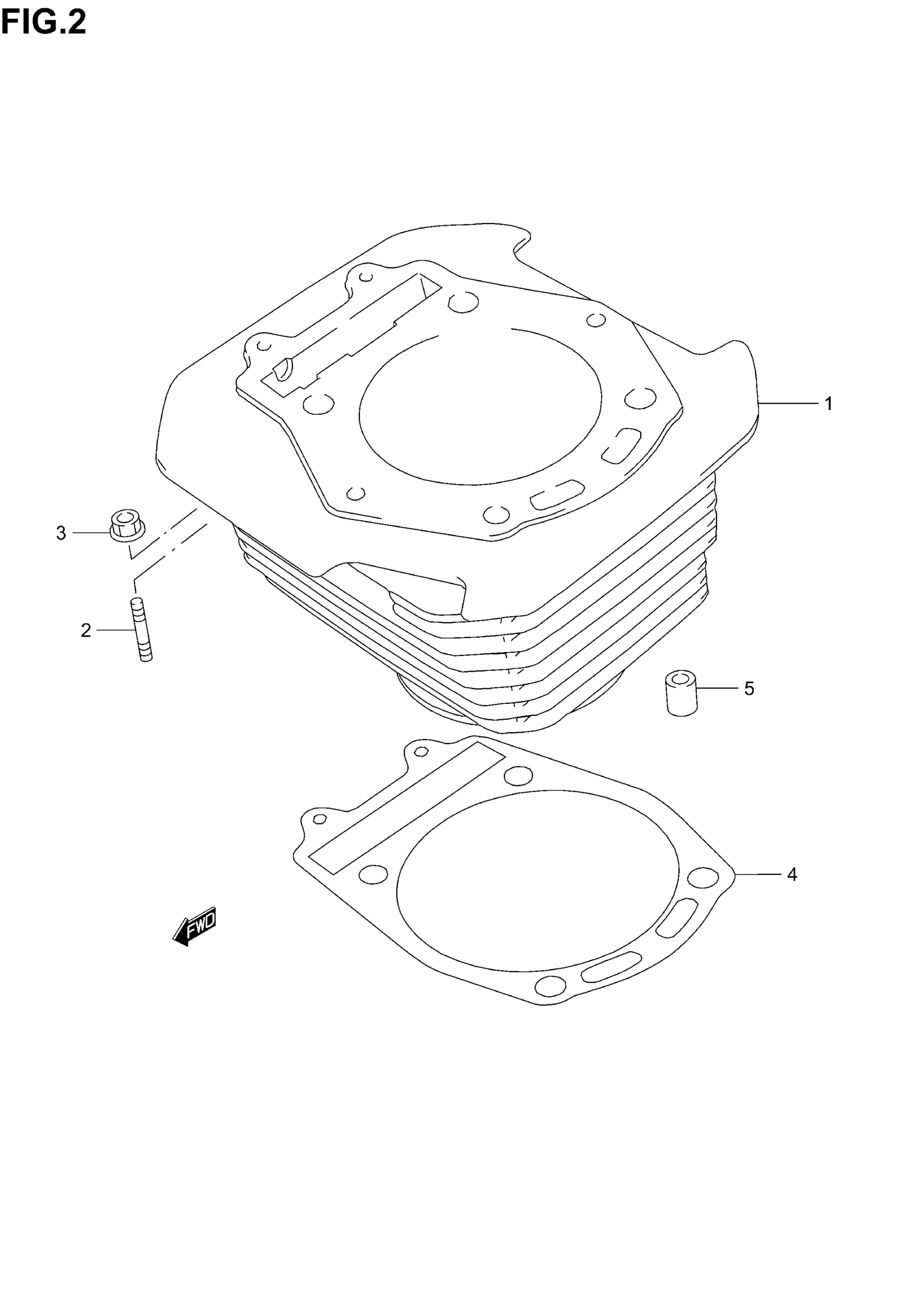

Suzuki DR650SE (2005) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL K1/K2/K3

11211-32E02-0F0

Unavailable

1

CYLINDER | MODEL K4/K5

11211-32E10-0F0

$1,209.37

2

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

3

NUT This part replaces 08316-10063.

08316-1006B

$2.50

4

GASKET, CYLINDER | MODEL K1 This part replaces 11241-04F00.

11241-04F20

$20.43

4

GASKET, CYLINDER | MODEL K2/K3 This part replaces 11241-04F10.

11241-04F20

$20.43

4

GASKET, CYLINDER | MODEL K4/K5

11241-04F20

$20.43

5

PIN

04211-13189

$2.19
