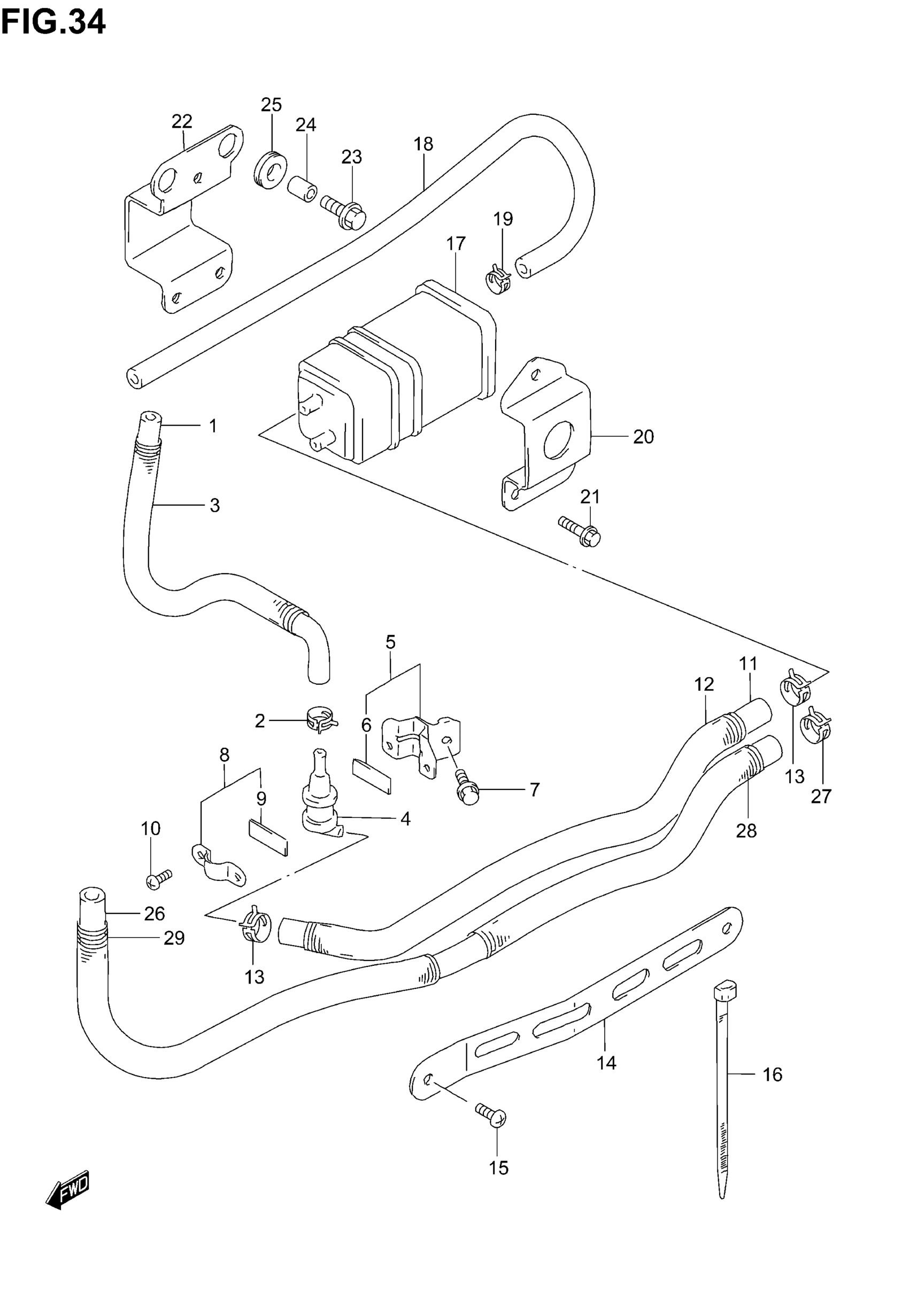

Suzuki DR650SE (2005) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, BREATHER VALVE This part replaces 44434-32E00.

44434-29F00

Unavailable

2

CLIP

09401-11413

$2.26

3

SPRING

09440-13012

Unavailable

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE,BRTHR VALVE | Includes Item(s) 6

44890-32E00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

11

HOSE, VALVE & CANISTER | L:600!460

09355-54116-600

$12.06

12

SPRING

09440-13043

$6.04

13

CLIP

09401-11413

$2.26

14

PLATE,CANISTER HOSE

44945-32E00

Unavailable

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

16

CLAMP

09407-14403

$2.26

17

CANISTER

17210-14A00

$156.07

18

HOSE,6.5X11.5X6 | L:600!320 This part replaces 09355-70125-600.

44421-12FR0

$12.33

19

CLIP This part replaces 09401-11407.

09401-11415

$2.23

20

PLATE,CSTR UPPER

44921-32E00

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

PLATE,CSTR LOWER

44930-32E00

Unavailable

23

BOLT

09116-06167

$2.19

24

SPACER

09180-06286

$2.50

25

CUSHION

09320-10015

$2.54

26

HOSE, CANISTER & CARB | L:2000!620

09355-54115-00B

Unavailable

27

CLIP

09401-11413

$2.26

28

SPRING, NO.1

09440-13043

$6.04

29

SPRING, NO.2

09440-13053

Unavailable
