Partiron

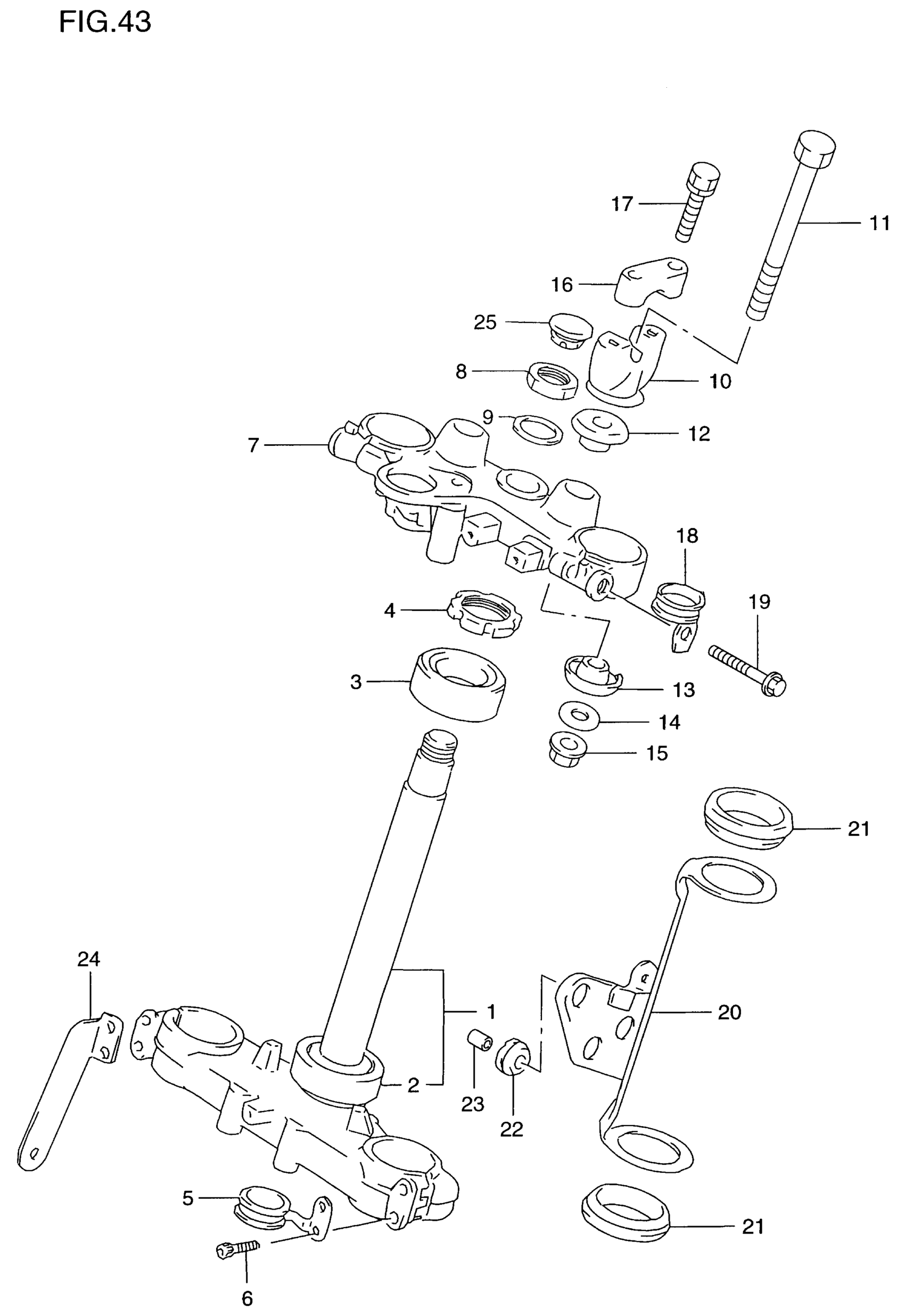

Suzuki DR650SE (2000) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER | Includes Item(s) 2 This part replaces 51410-32E00.

51410-32E01

$638.57

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

4

NUT STEERING

51631-28E00

$28.88

5

CLAMP, LOWER

51453-32E00

Unavailable

6

BOLT, LOWER

07130-08407

$3.14

7

HEAD,STEERING STEM

51311-32E00

$375.05

8

NUT

51353-32E00

$30.42

9

WASHER

51356-27C00

$6.75

10

HOLDER, HANDLE LOWER

56221-12E00

Unavailable

11

BOLT

56321-28C00

$8.28

12

RUBBER, UPPER

56241-14A00

$33.65

13

RUBBER, LOWER

56242-14200

$36.08

14

WASHER

09160-10035

$1.78

15

NUT

08319-31107

$2.73

16

HOLDER, HANDLE UPPER

56211-12E00

Unavailable

17

BOLT This part replaces 01570-08353.

01570-0835A

$3.16

18

CLIP

51288-32E00

$29.83

19

BOLT This part replaces 01550-10403.

01550-1040A

$3.55

20

COVER,FORK RH

51530-32E00

$104.75

20

COVER,FORK LH

51540-32E00

Unavailable

21

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$5.00

22

CUSHION

09320-09018

$2.44

23

SPACER

09180-06310

$1.91

24

BRACKET, SIDE RH

35956-44B01

$11.83

24

BRACKET, SIDE LH

35957-44B01

$11.83

25

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92
