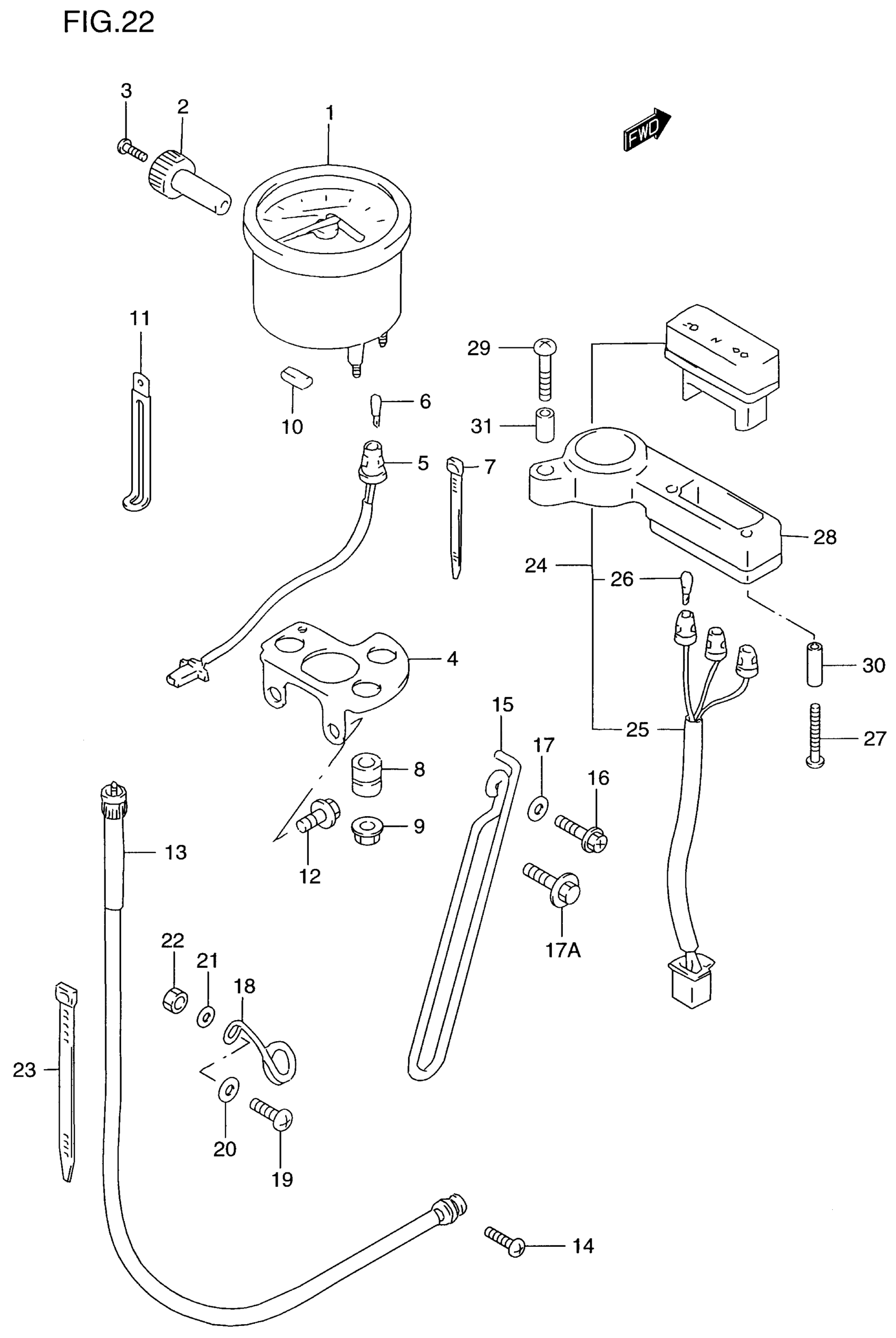

Suzuki DR650SE (2000) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL T This part replaces 34120-32E00.

34120-32E02

$489.68

1

SPEEDOMETER (MILE/KILO) | MODEL V/W This part replaces 34120-32E01.

34120-32E02

$489.68

1

SPEEDOMETER (MILE/KILO) | MODEL X/Y

34120-32E02

$489.68

1

SPEEDOMETER (KILO) | MODEL T E28

34120-32E10

Unavailable

1

SPEEDOMETER (KILO) | MODEL V/W E28

34120-32E11

Unavailable

1

SPEEDOMETER (KILO) | MODEL X/Y E28

34120-32E12

Unavailable

2

KNOB, TRIP

34124-44B30

$10.80

3

SCREW, TRIP KNOB

34184-12D00

$2.93

4

BRACKET,METER

34950-32E10

$37.53

5

SOCKET | MODEL T/V/W/X This part replaces 34170-15D20.

34170-15D21

$21.12

5

SOCKET | MODEL Y

34170-15D21

$21.12

6

BULB (12V,3W) | MODEL T/V/W/X

09471-12085

$5.01

6

.BULB (12V1.7W) | MODEL Y

09471-12108

$3.42

7

CLAMP

34954-42A90

Unavailable

8

CUSHION

34189-30921

$3.41

9

NUT (M6)

09159-06076

$2.81

10

CUSHION

34161-03D00

Unavailable

11

CLAMP (L:97)

09404-10417

$2.72

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

14

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

15

GUIDE METER CABLE NO.2

34938-14D30

$10.63

16

SCREW | MODEL T/V/W This part replaces 02142-06203.

02142-0620A

$1.49

17

WASHER (6.5X20X1.6) | MODEL T/V/W

09160-06066

$1.89

17A

BOLT (6X20) | MODEL X/Y

09116-06167

$2.19

18

GUIDE, CABLE NO.1 | MODEL T This part replaces 34938-14D20.

34938-14D21

$8.65

18

GUIDE, CABLE NO.1 | MODEL V/W/X/Y

34938-14D21

$8.65

19

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

20

WASHER (6.5X18X1.6) | MODEL T/V This part replaces 09160-06057.

09160-06109

$1.49

20

WASHER (6.5X16X1.2) | MODEL W/X/Y

09160-06109

$1.49

21

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

22

NUT This part replaces 08310-00063.

08310-0006A

$1.84

23

CLAMP

09407-11401

$2.63

24

BOX ASSY, PILOT LAMP

36380-32E20

Unavailable

24

BOX ASSY,PILOT LAMP | E28; Includes Item(s) 25 - 26

36380-32E10

$175.98

25

SOCKET, PILOT BOX

36394-32E00

$44.48

26

BULB (13.5V,2W)

09471-12118

$2.46

27

SCREW This part replaces 03511-14353.

03511-1435B

$2.58

28

HOLDER,PILOT BOX

36382-32E00

$19.07

29

SCREW, PILOT BOX HOLDER

09139-06029

$5.36

30

SPACER (4.5X6.5X25) | MODEL T This part replaces 09180-04016.

09180-04024

$5.00

30

SPACER (4.5X6.5X25) | MODEL V/W/X/Y

09180-04024

$5.00

31

SPACER (6.1X8X15.5) | MODEL T This part replaces 09180-06040.

09180-06251

$2.44

31

SPACER (6.1X8X15.5) | MODEL V/W/X/Y

09180-06251

$2.44
