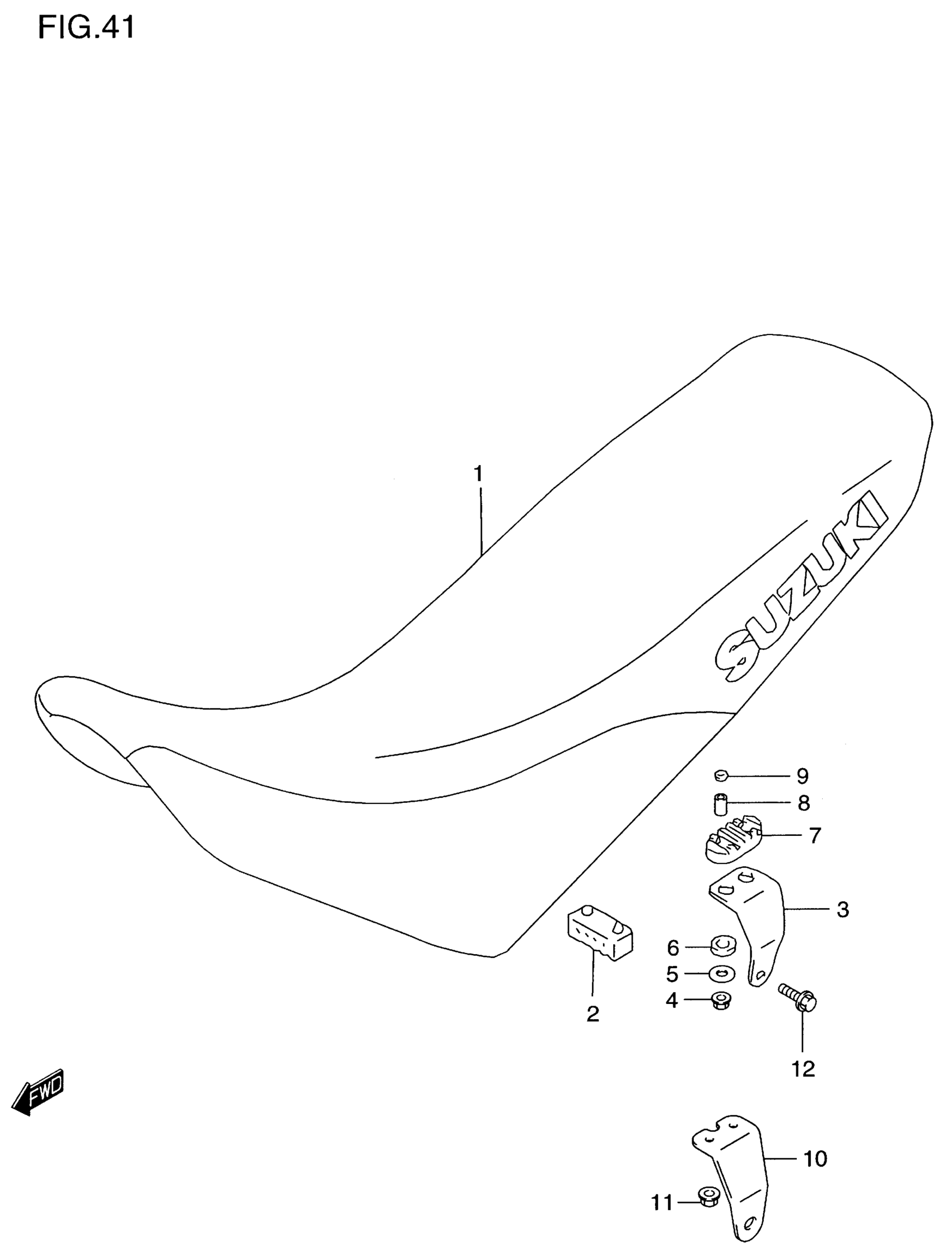

Suzuki DR650SE (2000) SEAT Diagram

#

Description
Price

1

SEAT SET | MODEL T/V This part replaces 45100-32E00-E8U.

45100-32E01-E8U

Unavailable

1

SEAT SET | MODEL W

45100-32E01-E8U

Unavailable

1

SEAT SET | MODEL X

45100-32E10-L3R

Unavailable

1

SEAT SET | MODEL Y FOR N9J

45100-32E20-N9K

Unavailable

1

SEAT SET | MODEL Y FOR J5F; Includes Item(s) 2 - 11

45100-32E20-N9M

Unavailable

2

CUSHION

45149-31300

$3.56

3

BRACKET | MODEL T/V

45117-32E00

Unavailable

4

NUT | MODEL T/V This part replaces 08316-10063.

08316-1006B

$2.50

5

.WASHER (6.5X20X1.6) | MODEL T/V

09160-06088

$1.65

6

CUSHION, LOWER | MODEL T/V

45147-32E00

Unavailable

7

CUSHION, UPPER | MODEL T/V

45149-32E00

Unavailable

8

SPACER | MODEL T/V

45219-32E00

Unavailable

9

WASHER | MODEL T/V

08322-01067

$2.13

10

BRACKET | MODEL W/X/Y

45117-32E10

$25.92

11

NUT | MODEL W/X/Y This part replaces 08316-10063.

08316-1006B

$2.50

12

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32
