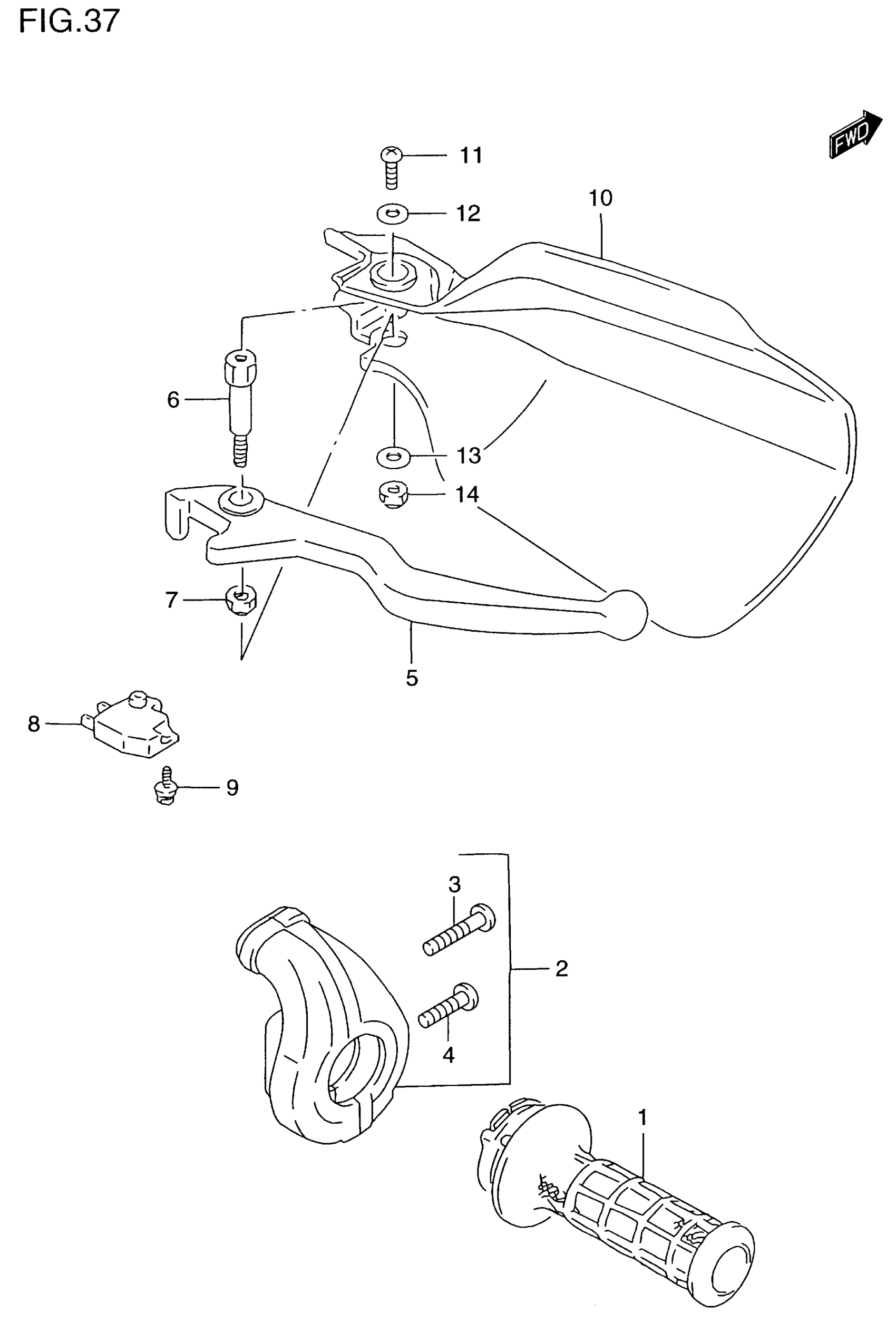

Suzuki DR650SE (2000) RIGHT HANDLE LEVER Diagram

#

Description
Price

1

GRIP THROTTLE

57110-12D11

$37.11

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$70.49

3

SCREW, UPPER

09125-05066

$1.65

4

SCREW This part replaces 02112-05203.

02112-0520B

$1.84

5

LEVER

57421-13001

$13.33

6

BOLT

57431-05D00

$13.20

7

.NUT | MODEL T/V/W This part replaces 08319-21063.

08319-2106B

$2.32

7

NUT,LEVER PIVOT | MODEL X/Y

57433-09F00

$3.56

8

SWITCH ASSY,FR BRAKE | Includes Item(s) 9 This part replaces 57460-17C00.

57460-14J02

$38.46

9

SCREW

57465-17C00

$2.19

10

COVER, KNUCKLE RH (PURPLE) | FOR E3D

57341-05D00-Z16

$47.07

10

COVER,KNUCKLE RH (BLACK) | FOR L9W,N9J This part replaces 57341-05D00-019.

57341-05D10-019

$43.88

10

COVER,KNUCKLE RH (WHITE) | FOR J5F This part replaces 57341-05D00-30H.

57341-05D10-30H

$45.37

11

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

12

WASHER (5.5X16X1.2) | MODEL T/V This part replaces 09160-05017.

09160-05043

$2.30

12

WASHER | MODEL W/X/Y

09160-05043

$2.30

13

.WASHER (6.5X16X1.6) | MODEL T/V This part replaces 09160-06042.

09160-06130

$1.91

13

.WASHER (6.5X16X1.6) | MODEL W/X/Y

09160-06130

$1.91

14

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
