Description

Price

1

HUB,REAR WHEEL

64111-15D10

$481.20

2

SPACER, HUB BEARING

64731-15D00

$22.30

3

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

4

OIL SEAL (26X47X5)

09283-26019

$11.61

5

DISC, REAR BRAKE | MODEL T MODEL V ~F.NO.JS1SP46AV2100919 This part replaces 69211-32E00.

69211-32E01

$310.70

5

DISC, REAR BRAKE | MODEL V F.NO.JS1SP46AV2100920~ MODEL W/X/Y

69211-32E01

$310.70

6

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

7

AXLE, REAR

64710-32E10

$141.12

8

SPACER, RH

64741-05D00

$17.82

9

SPACER, LH

64751-15D00

$22.90

10

WASHER

09160-19022

$4.90

11

NUT This part replaces 08314-40183.

08314-4018A

$4.64

12

SPROCKET, REAR (NT:42)

64511-32E00

$82.02

13

BOLT (8X30.5)

09120-08010

$2.36

14

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

15

NUT

08319-31087

$2.32

16

ADJUSTER, CHAIN, RH

61410-32E00

$21.98

17

DRUM,REAR SPROCKET MOUNTING

64611-15D01

$178.35

18

ABSORBER,REAR HUB SHOCK

64651-32E00

$8.73

19

RETAINER, SPROCKET DRUM

64733-15D00

$30.10

20

BEARING (25X52X15)

09262-25061

$33.12

21

OIL SEAL (34X52X6)

09283-34003

$9.29

22

RIM, REAR WHEEL (17XMT2.50) This part replaces 65311-32E00.

65311-32E01

$488.28

23

SPOKE SET,REAR WHEEL

65320-32E00

$98.40

24

TIRE,REAR This part replaces 65110-32E00.

65110-32E01

$95.55

25

TUBE ASSY, WHEEL INNER

65200-32E00

$63.03

26

PROTECTOR,WHEEL INNER TUBE This part replaces 65261-32E00.

65261-32E01

$8.18

27

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

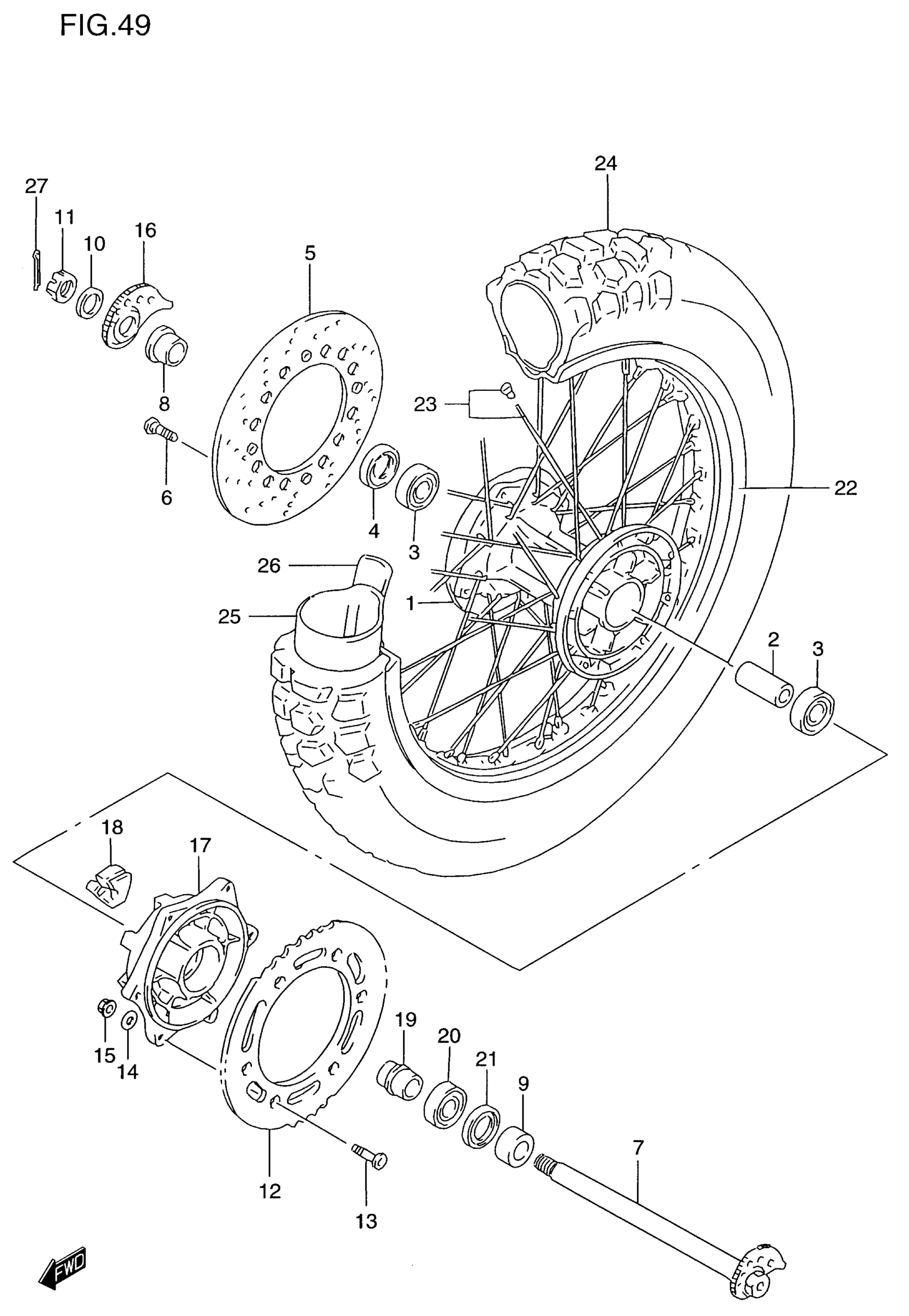

Suzuki DR650SE (2000) REAR WHEEL Diagram
