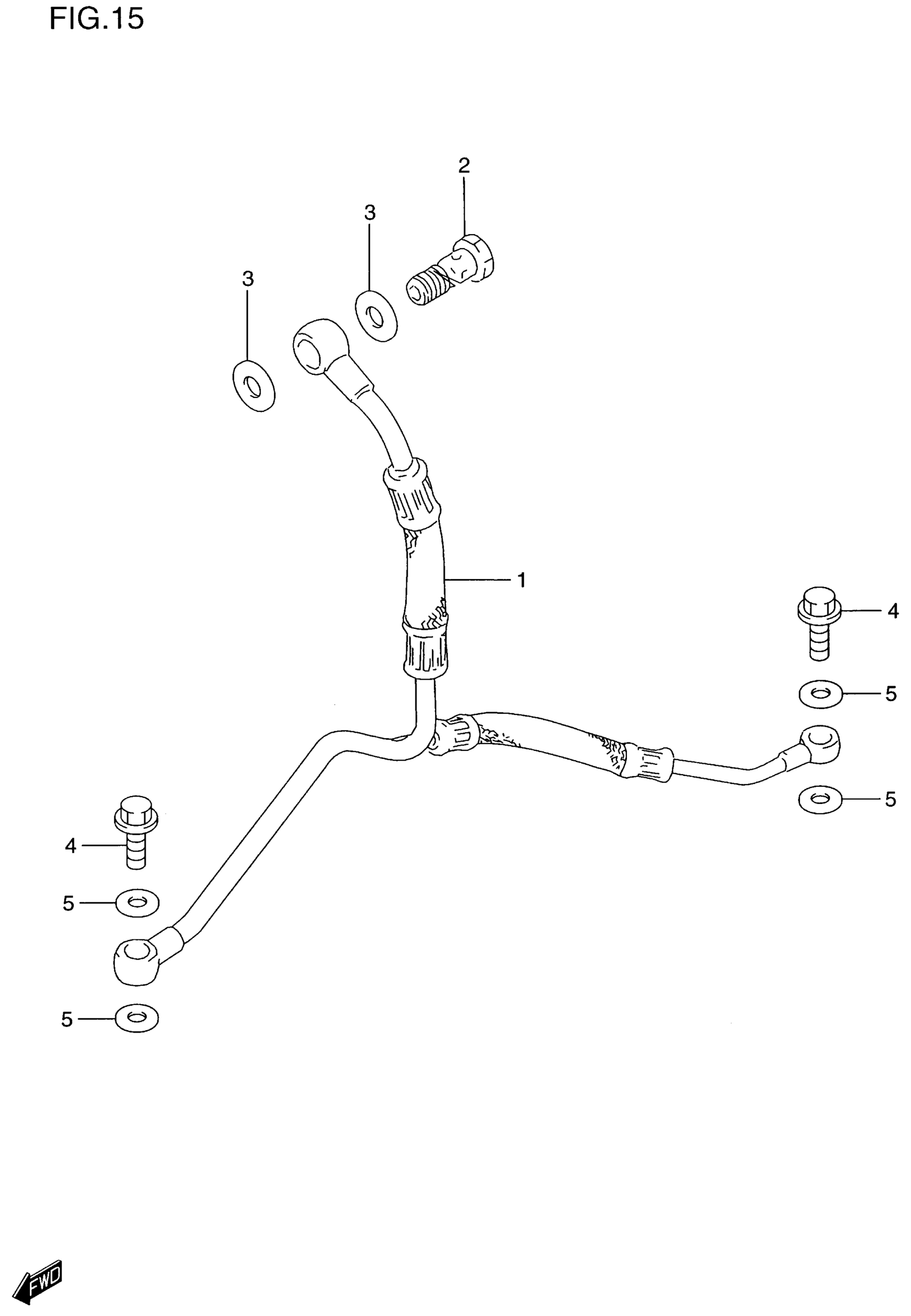

Suzuki DR650SE (2000) OIL PIPE Diagram

#

Description

Price

1

PIPE, T/M & SHAFT OIL | MODEL T/V

16480-32E00

Unavailable

1

PIPE,T/M&CSHAFT OIL | MODEL W/X/Y

16480-32E10

$200.88

2

BOLT, UNION (12X27) This part replaces 09360-12010.

09360-12008

$9.65

3

GASKET

09168-12017

$1.95

4

UNION BOLT This part replaces 09360-10032.

09360-10055

$4.83

5

GASKET

09168-10007

$1.71
