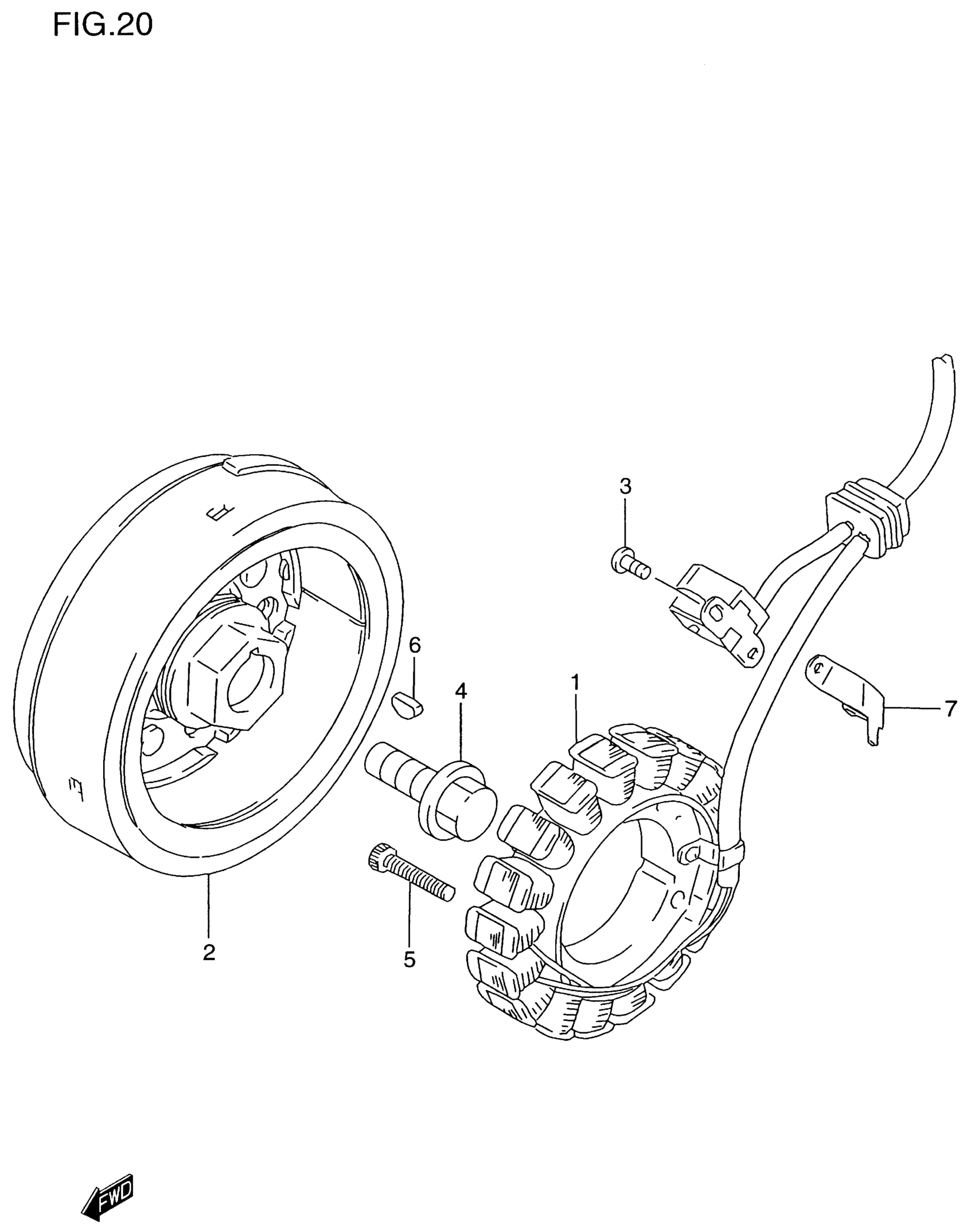

Suzuki DR650SE (2000) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-32E00.

32101-32E01

$736.75

2

ROTOR ASSY

32102-32E00

$901.13

3

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

4

BOLT (14X43)

09103-14001

$11.82

5

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

6

KEY

09420-05007

$4.60

7

CLAMP

32371-32E00

$6.30
