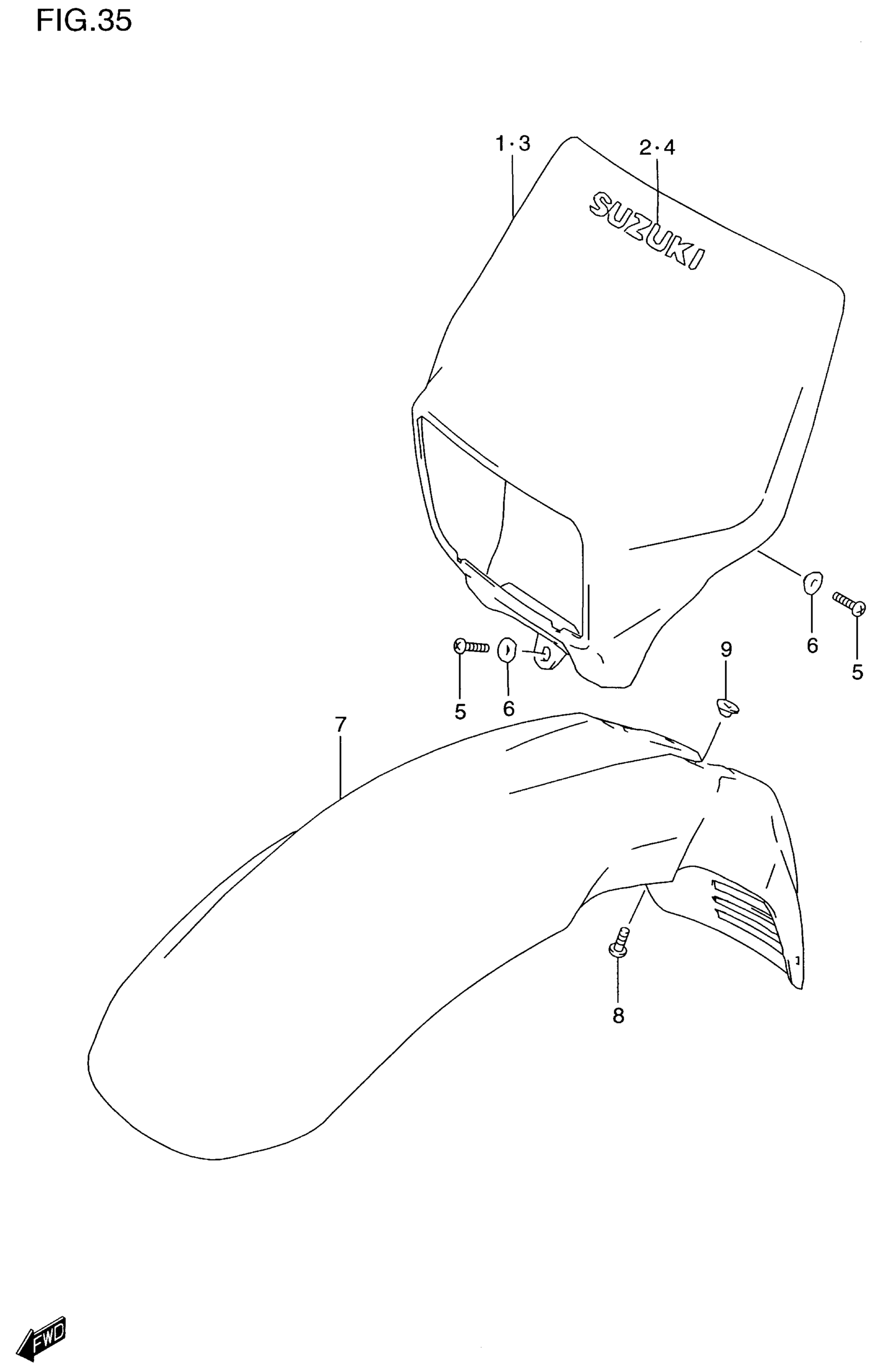

Suzuki DR650SE (2000) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEAD LAMP (WHITE) | MODEL T/V/W/X FOR E3D,L9W

51811-32E00-30H

Unavailable

2

EMBLEM, SUZUKI | MODEL T/V FOR E3D

68171-44B00-E9G

Unavailable

2

EMBLEM, SUZUKI | MODEL W FOR E3D

68171-44B00-F6F

Unavailable

2

EMBLEM, SUZUKI | MODEL X FOR L9W

68171-44B00-L5D

Unavailable

3

COVER, HEAD LAMP (BLACK) | MODEL Y FOR J5F

51811-32E00-019

Unavailable

3

COVER, HEAD LAMP (WHITE) | MODEL Y FOR N9J

51811-32E00-30H

Unavailable

4

EMBLEM, SUZUKI | MODEL Y FOR J5F

68171-44B00-87N

Unavailable

4

EMBLEM, SUZUKI | MODEL Y FOR N9J

68171-44B00-8YM

$12.48

5

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

6

WASHER, COVER SIDE

09169-06033

$1.50

7

FENDER,FRONT (WHITE) | MODEL T/V/W/X FOR E3D,L9W

53111-13E00-30H

$159.40

7

FENDER,FRONT (BLACK) | MODEL Y FOR J5F

53111-13E00-019

$130.23

7

FENDER,FRONT (WHITE) | MODEL Y FOR N9J

53111-13E00-30H

$159.40

8

BOLT

09116-06170

$2.50

9

WASHER

09169-06073

$3.42
