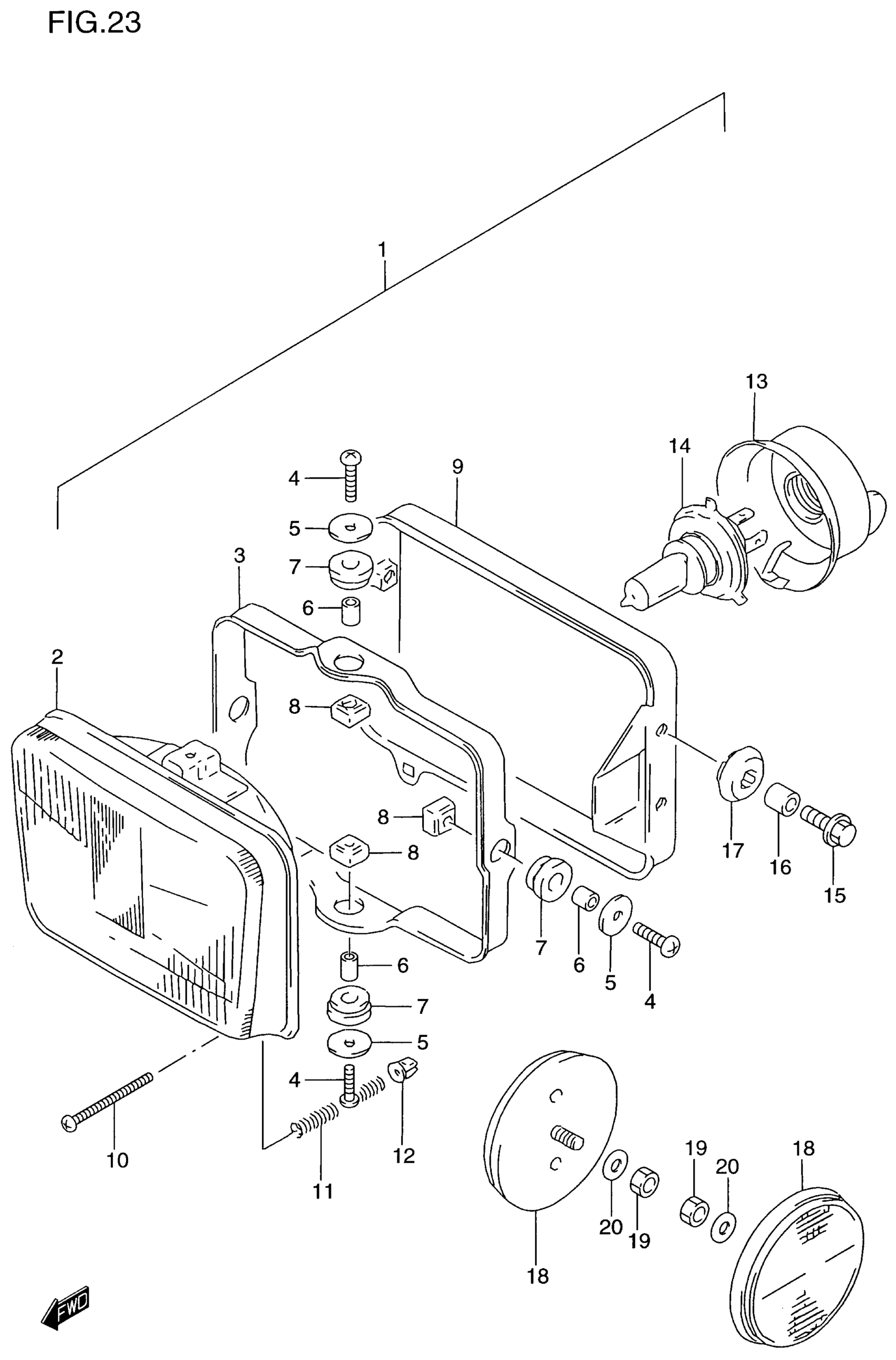

Suzuki DR650SE (2000) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13 This part replaces 35100-12E30-999.

35100-12E31-999

Unavailable

2

UNIT ASSY

35121-12E30

Unavailable

3

RING, MOUNTING

35130-12E20

Unavailable

4

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

5

WASHER (5.5X18X1) | MODEL T/V/W/X This part replaces 09160-05003.

09160-05045

$1.93

5

WASHER | MODEL Y

09160-05045

$1.93

6

SPACER

35133-45230

$3.30

7

CUSHION

35139-45230

$1.98

8

NUT

35135-45900

$3.25

9

HOUSING

35141-12E20

Unavailable

10

SCREW, ADJUSTER

09125-04501

$3.16

11

SPRING, ADJUSTING

35154-12E20

Unavailable

12

.NUT ADJUSTING

35135-12E20

$3.72

13

.COVER SOCKET

35173-01440

$17.37

14

BULB (12V,60/55W H4)

09471-12060

$25.15

15

BOLT

09116-06167

$2.19

16

SPACER (6.5X10X10) | MODEL T This part replaces 09180-06030.

09180-06310

$1.91

16

SPACER (6.8X10X10) | MODEL V/W/X/Y

09180-06310

$1.91

17

CUSHION

09320-09018

$2.44

18

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$15.23

19

NUT This part replaces 08313-10053.

08313-1005B

$2.70

20

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84
