2000 Suzuki DR650SE Grip - Carrier Diagram

← All diagrams

Find the part on the Grip - Carrier diagram for your 2000 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

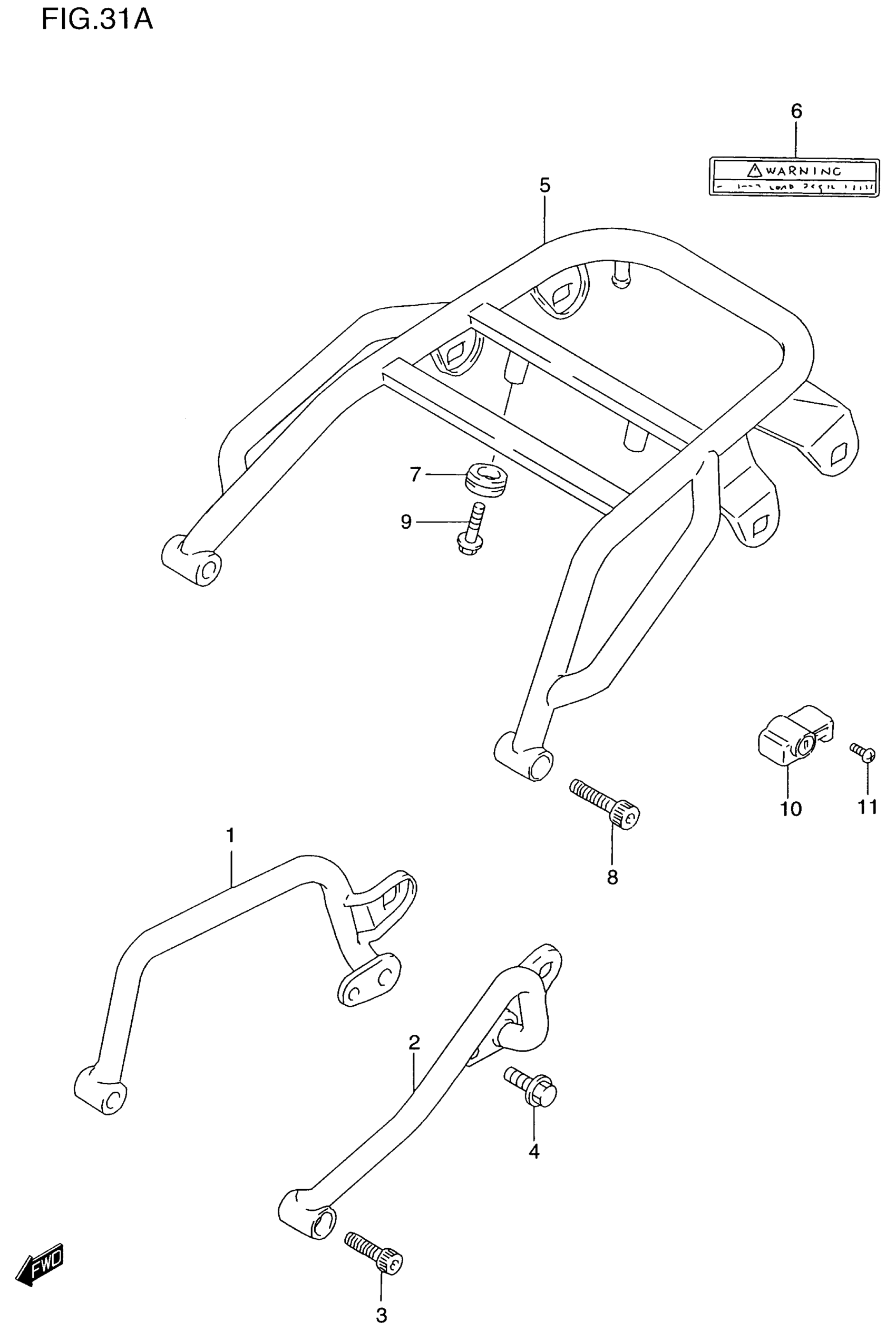

2000 Suzuki DR650SE Grip - Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, REAR RH (CHARCOAL) | FOR J5F

43970-32E00-24K

1
Out of stock

1

GRIP, REAR RH (WHITE) | FOR N9J

43970-32E00-1TS

1
Out of stock

2

GRIP, REAR LH (CHARCOAL) | FOR J5F

43980-32E00-24K

1
Out of stock

2

GRIP, REAR LH (WHITE) | FOR N9J

43980-32E00-1TS

1
Out of stock

3

BOLT, FRONT

07130-08257

2
Out of stock

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

5

DR650 REAR RACK | OPT; Includes Item(s) 6 - 9 This part replaces 46300-32810-20H.

46300-32822-20H

1
Out of stock

6

LABEL, WARNING CARRIER | OPT

68391-32E00

1
Out of stock

7

GROMMET | OPT

09308-13001

2
Out of stock

8

BOLT, FRONT | OPT

07130-08357

2
Out of stock

9

BOLT | OPT This part replaces 01550-06163.

01550-0616A

2
Out of stock

10

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

1
Out of stock

11

SCREW

09139-06089

1
Out of stock
