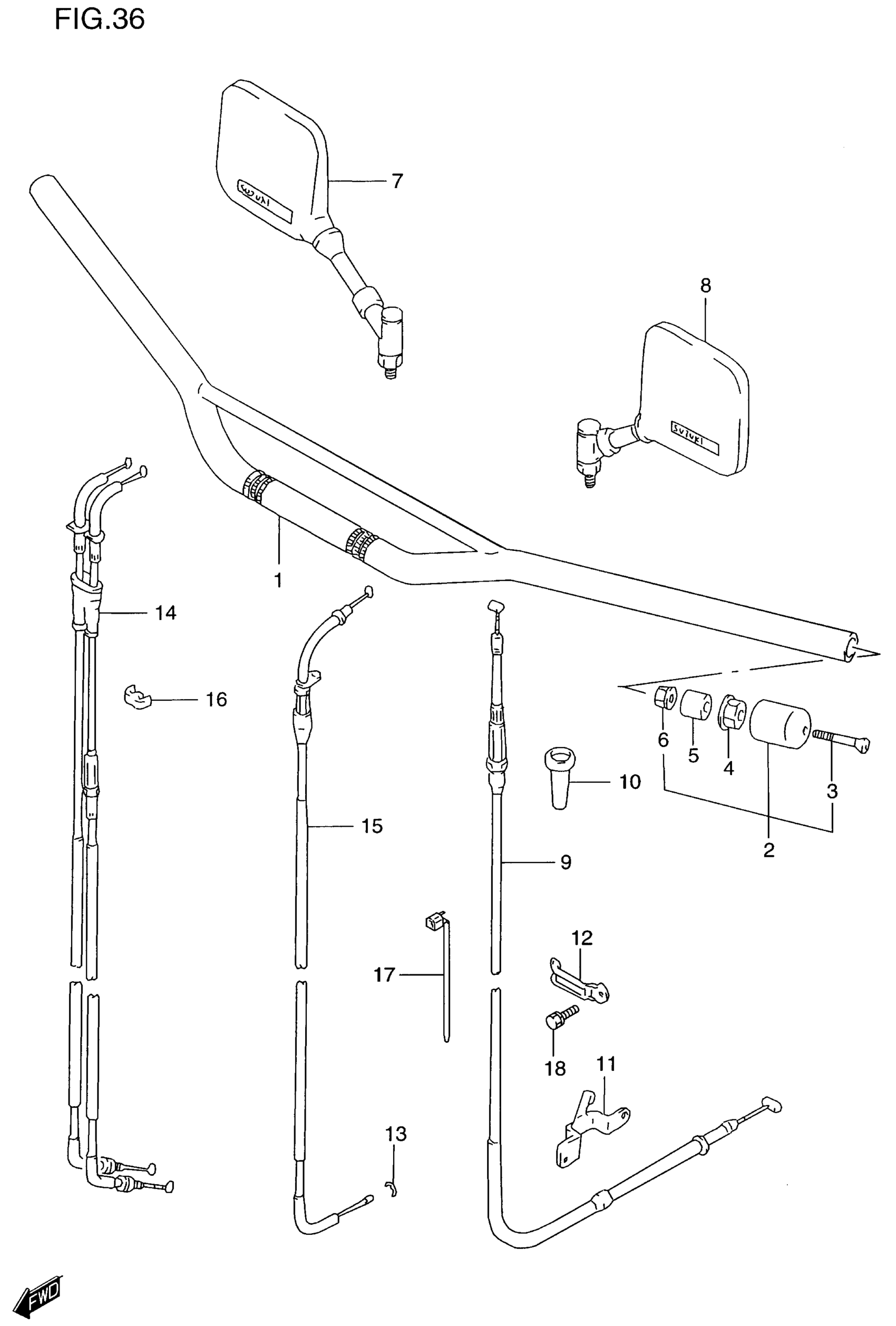

Suzuki DR650SE (2000) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-32E00-291

$135.05

2

BALANCER SET,HA | Includes Item(s) 3 - 6 This part replaces 56200-32821.

56200-32823

$28.07

3

SCREW This part replaces 02122-06803.

02122-0680B

$4.03

4

NUT This part replaces 08316-10083.

08316-1008B

$2.65

5

EXPANDER

56272-44500

$4.16

6

NUT

09159-06024

$2.12

7

MIRROR ASSY RR VIEW R This part replaces 56500-12D02.

56500-06G30

$167.98

8

MIRROR ASSY RR VIEW L This part replaces 56600-12D02.

56600-06G30

$167.98

9

CABLE ASSY,CLUTCH | MODEL T This part replaces 58200-32E00.

58200-32E01

$35.12

9

CABLE ASSY,CLUTCH | MODEL V/W/X/Y

58200-32E01

$35.12

10

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

11

STOPPER,CLUTCH CABLE

58634-32E00

$16.92

12

CLAMP This part replaces 09403-09307.

09403-09328

$1.97

13

E RING This part replaces 08332-11033.

08332-1103A

$2.35

14

CABLE ASSY,THROTTLE

58300-32E00

$77.05

15

CABLE,STARTER

58410-32E00

$34.57

16

CLIP

09408-00066

$2.25

17

CLAMP

09407-25401

$4.21

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
