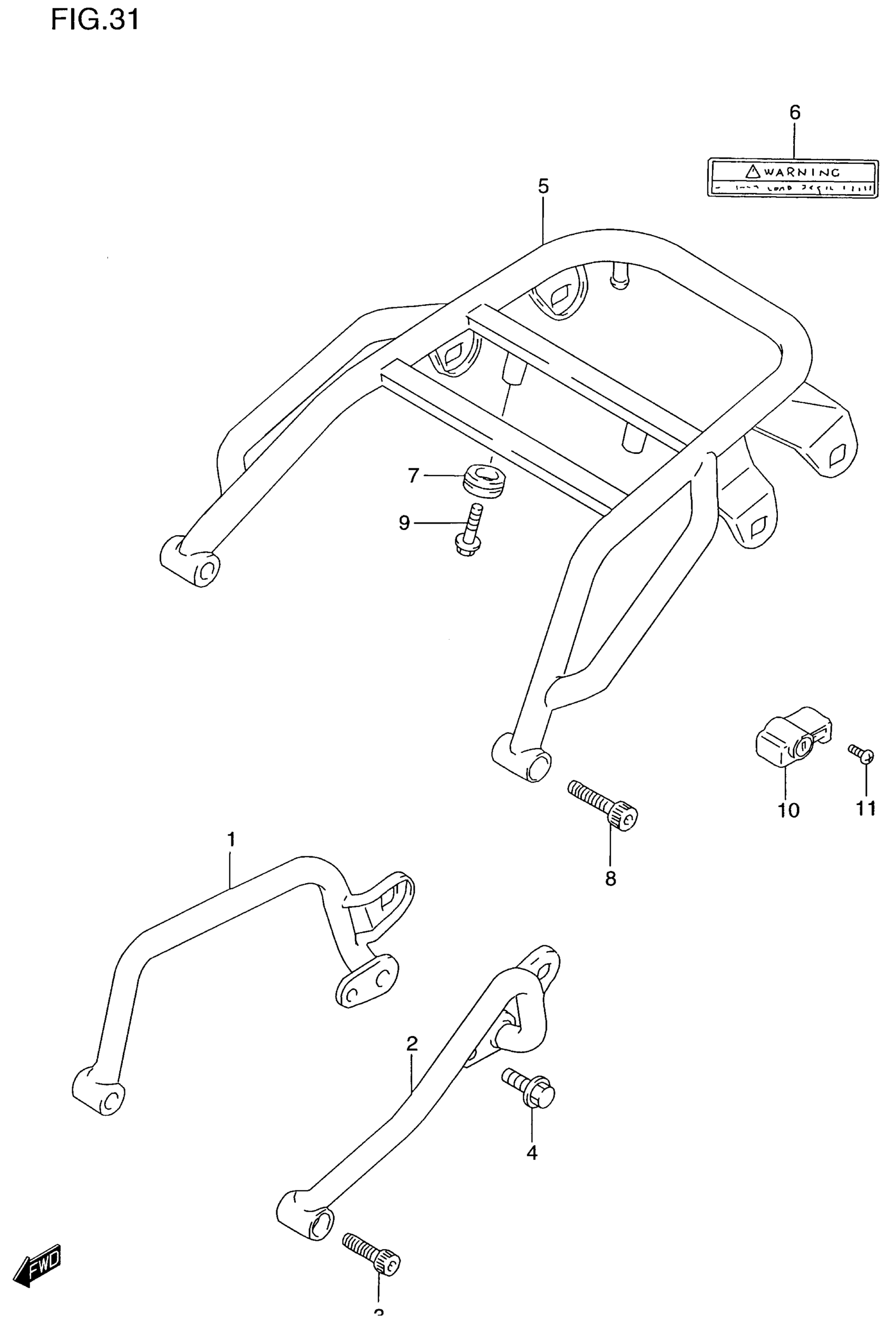

Suzuki DR650SE (2000) GRIP - CARRIER (MODEL T/V/W/X) Diagram

#

Description
Price

1

GRIP, REAR RH (PURPLE) | MODEL T FOR E3D

43970-32E00-Z16

Unavailable

1

GRIP, REAR RH (CHARCOAL) | MODEL V/W FOR E3D

43970-32E00-24K

Unavailable

1

GRIP, REAR RH (WHITE) | MODEL X FOR L9W

43970-32E00-1TS

Unavailable

2

GRIP, REAR LH (PURPLE) | MODEL T FOR E3D

43980-32E00-Z16

Unavailable

2

GRIP, REAR LH (CHARCOAL) | MODEL V/W FOR E3D

43980-32E00-24K

Unavailable

2

GRIP, REAR LH (WHITE) | MODEL X FOR L9W

43980-32E00-1TS

Unavailable

3

BOLT, FRONT

07130-08257

$3.43

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

5

DR650 REAR RACK | OPT; Includes Item(s) 6 - 9 This part replaces 46300-32810-20H.

46300-32822-20H

$169.95

6

LABEL, WARNING CARRIER | OPT

68391-32E00

Unavailable

7

GROMMET | OPT

09308-13001

$2.15

8

BOLT, FRONT | OPT

07130-08357

$3.18

9

BOLT | OPT This part replaces 01550-06163.

01550-0616A

$1.97

10

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

$152.77

11

SCREW

09139-06089

$3.03
