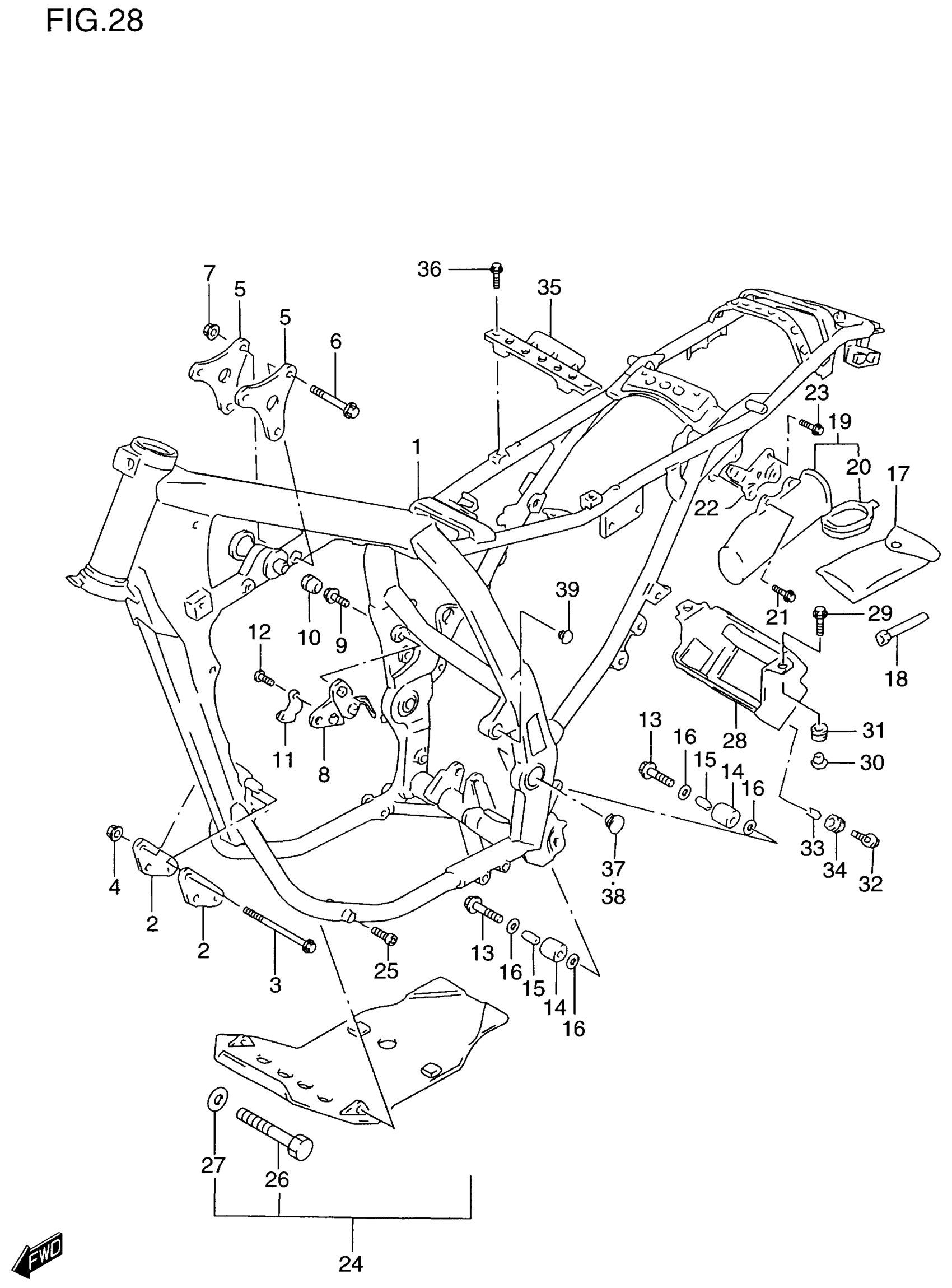

Suzuki DR650SE (2000) FRAME (MODEL T/V/W/X) Diagram

#

Description
Price

1

FRAME (PURPLE) | MODEL T/V FOR E3D

41100-32E00-Z16

Unavailable

1

FRAME (PURPLE) | MODEL W FOR E3D

41100-32E30-Z16

Unavailable

1

FRAME (CHARCOAL) | MODEL X FOR L9W

41100-32E30-24K

Unavailable

1

FRAME (PURPLE) | MODEL T/V/W E33 FOR E3D

41100-32E20-Z16

Unavailable

1

FRAME (CHARCOAL) | MODEL X E33 FOR 29W

41100-32E20-24K

Unavailable

2

PLATE, FRONT RH

41911-32E00

$18.17

3

BOLT, FRONT

09103-08139

$7.90

4

NUT | MODEL T/V/W This part replaces 08319-21083.

08319-2108A

$2.12

4

NUT | MODEL X This part replaces 08319-31083.

08319-3108A

$2.32

5

PLATE, UPPER

41991-32E00

$36.25

6

.BOLT (8X55) | MODEL T/V This part replaces 09103-08027.

09103-08339

$3.49

6

.BOLT (8X55) | MODEL W/X This part replaces 09103-08170.

09103-08339

$3.49

7

NUT This part replaces 08319-31083.

08319-3108A

$2.32

8

PLATE,ENG MTG,REAR RH (BLACK)

41930-32E00-019

Unavailable

9

BOLT, REAR | MODEL T/V

09103-08254

$3.03

9

BOLT | MODEL W/X This part replaces 01550-08203.

01550-0820A

$2.23

10

CAP

09250-20012

$9.00

11

BRACKET,STOP SWITCH

43251-32E00

Unavailable

12

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

13

BOLT

09103-08178

$4.69

14

ROLLER CHAIN CONTROL UPR

43911-13E00

$21.84

15

SPACER This part replaces 09180-08119.

09180-08156

$6.70

16

WASHER

08211-08201

$2.03

17

TOOL ASSY This part replaces 09800-21034.

09800-21084

$41.57

18

BOX SPANNER 16

09816-00100

Unavailable

19

HOLDER,TOOL | Includes Item(s) 20

41550-32E00

$72.82

20

CAP

41552-37210

$9.78

21

BOLT

09116-06006

$1.86

22

BRACKET,TOOL HOLDER | E33

47440-32E00

$17.03

23

BOLT | E33 This part replaces 01550-06163.

01550-0616A

$1.97

24

PROTECTOR SET, ENGINE | OPT; Includes Item(s) 25 - 27

42500-32810

$199.95

25

BOLT | OPT

09106-08098

$4.64

26

BOLT, MOUNT | OPT

09103-10154

$20.45

27

WASHER | OPT

09160-10091

Unavailable

28

HOLDER,BATTERY

41540-32E00

Unavailable

29

BOLT, UPPER

09116-06167

$2.19

30

SPACER | MODEL T This part replaces 41570-47D00.

09169-06065

$4.32

30

SPACER | MODEL V/W/X

09169-06065

$4.32

31

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

32

BOLT, SIDE

09116-06168

$2.50

33

SPACER

09180-06038

$1.98

34

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

35

PLATE,BATTERY FITTING

41561-32E00

$22.60

36

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

37

PLUG,FRAME PIVOR RH

43585-32E00

$4.55

38

PLUG,FRAME PIVOR LH

43595-32E00

$4.55

39

PLUG,FRAME BOSS

43586-32E00

$4.88
