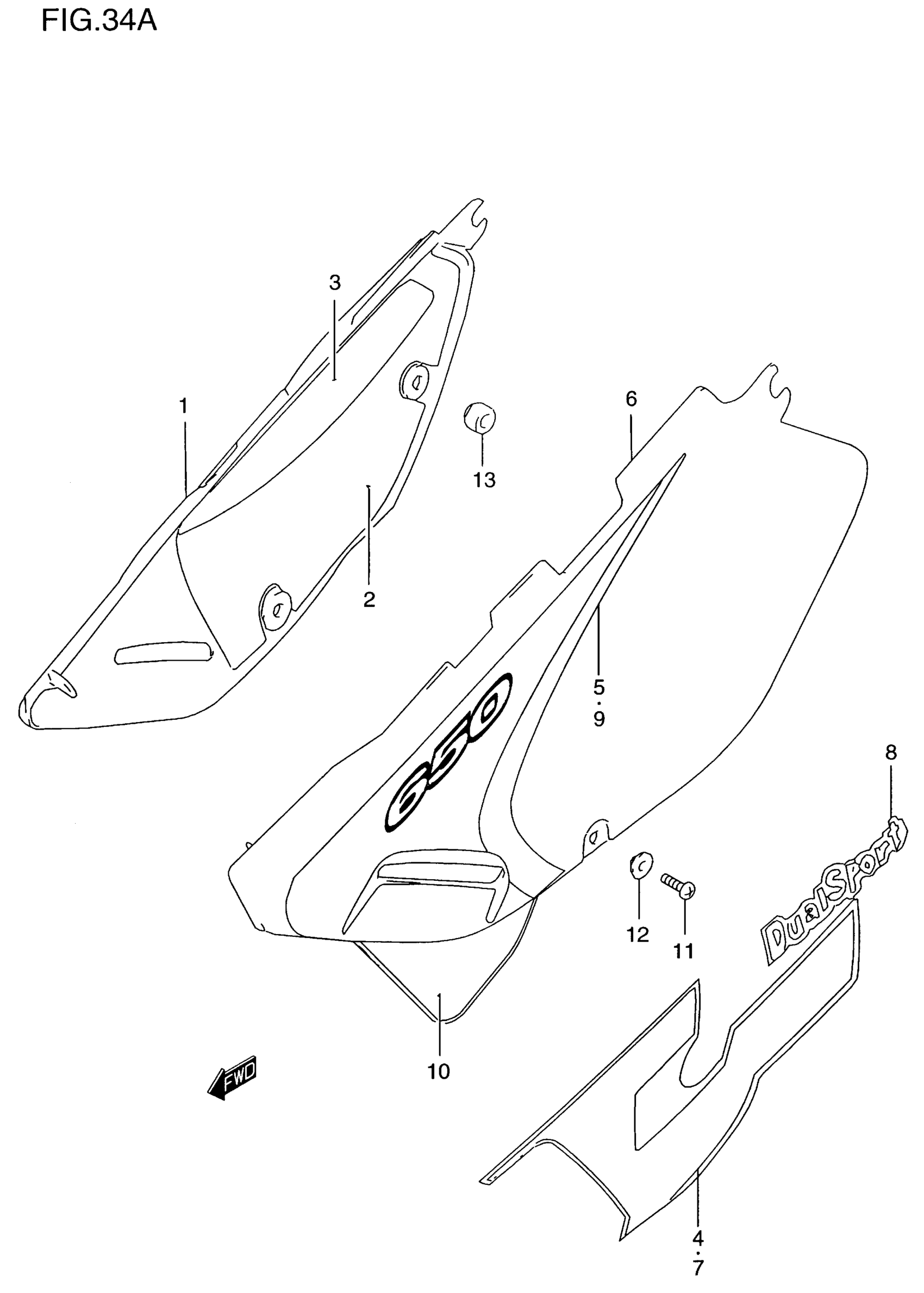

Suzuki DR650SE (2000) FRAME COVER (MODEL W/X) Diagram

#

Description
Price

1

COVER,FRAME RH (WHITE) | FOR E3D,L9W This part replaces 47111-32E00-30H.

47111-32E10-30H

$137.28

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

4

TAPE, RH | MODEL W FOR E3D

68135-32E20-J6Z

Unavailable

5

TAPE, RH | MODEL X FOR L9W

68135-32E30-L5C

Unavailable

6

COVER,FRAME LH (WHITE) | FOR E3D,L9W This part replaces 47211-32E00-30H.

47211-32E10-30H

$137.28

7

TAPE, LH | MODEL W FOR E3D

68145-32E20-J6Z

Unavailable

8

EMBLEM | MODEL W FOR E3D

68131-32E00-J7B

Unavailable

9

TAPE, LH | MODEL X FOR L9W

68145-32E30-L5C

Unavailable

10

TAPE, NO.2, LH

68146-32E00

$15.08

11

SCREW

02142-06167

$1.49

12

WASHER This part replaces 09169-06028.

09169-06041

$2.20

13

CUSHION, MUFFLER

09321-10019

$4.90
