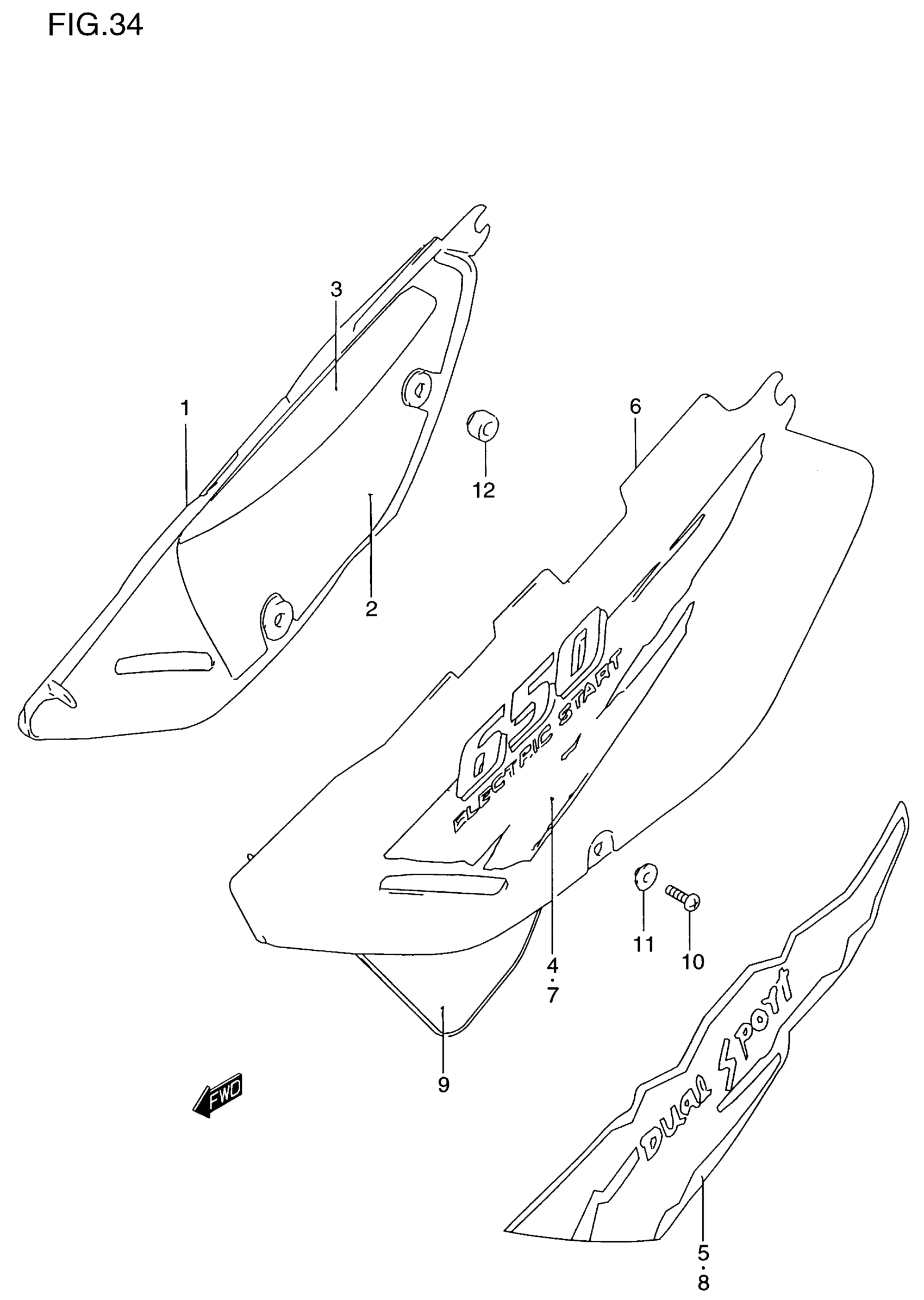

Suzuki DR650SE (2000) FRAME COVER (MODEL T/V) Diagram

#

Description

Price

1

COVER,FRAME RH (WHITE) | FOR E3D This part replaces 47111-32E00-30H.

47111-32E10-30H

$137.28

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

4

TAPE, RH | MODEL T FOR E3D

68135-32E00-Z65

Unavailable

5

TAPE, RH | MODEL V FOR E3D

68135-32E10-G3M

Unavailable

6

COVER,FRAME LH (WHITE) | FOR E3D This part replaces 47211-32E00-30H.

47211-32E10-30H

$137.28

7

TAPE, LH | MODEL T FOR E3D

68145-32E00-Z65

Unavailable

8

TAPE, LH | MODEL V FOR E3D

68145-32E10-G3M

Unavailable

9

TAPE, NO.2, LH

68146-32E00

$15.08

10

SCREW

02142-06167

$1.49

11

WASHER This part replaces 09169-06028.

09169-06041

$2.20

12

CUSHION, MUFFLER

09321-10019

$4.90
