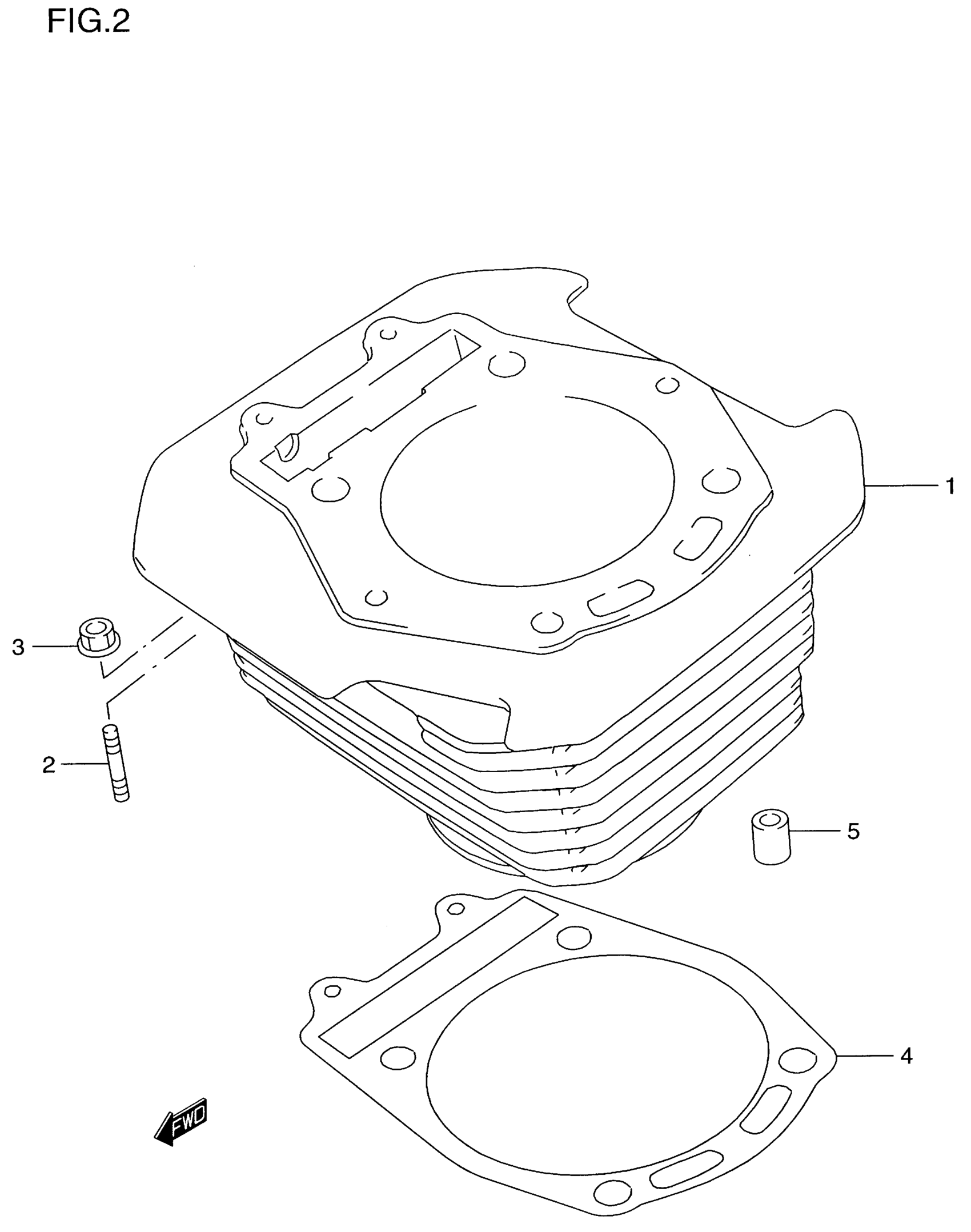

Suzuki DR650SE (2000) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL T This part replaces 11211-32E00-0F0.

11211-32E02-0F0

Unavailable

1

CYLINDER | MODEL V This part replaces 11211-32E01-0F0.

11211-32E02-0F0

Unavailable

1

CYLINDER | MODEL W/X/Y

11211-32E02-0F0

Unavailable

2

STUD BOLT | MODEL T/V/W/X This part replaces 01421-06208.

01421-0620A

$1.91

2

STUD BOLT | MODEL Y This part replaces 01421-06203.

01421-0620A

$1.91

3

NUT This part replaces 08316-10063.

08316-1006B

$2.50

4

GASKET, CYLINDER | MODEL T/V/W This part replaces 11241-32E00.

11241-04F20

$20.43

4

GASKET, CYLINDER | MODEL X/Y This part replaces 11241-04F00.

11241-04F20

$20.43

5

PIN

04211-13189

$2.19
