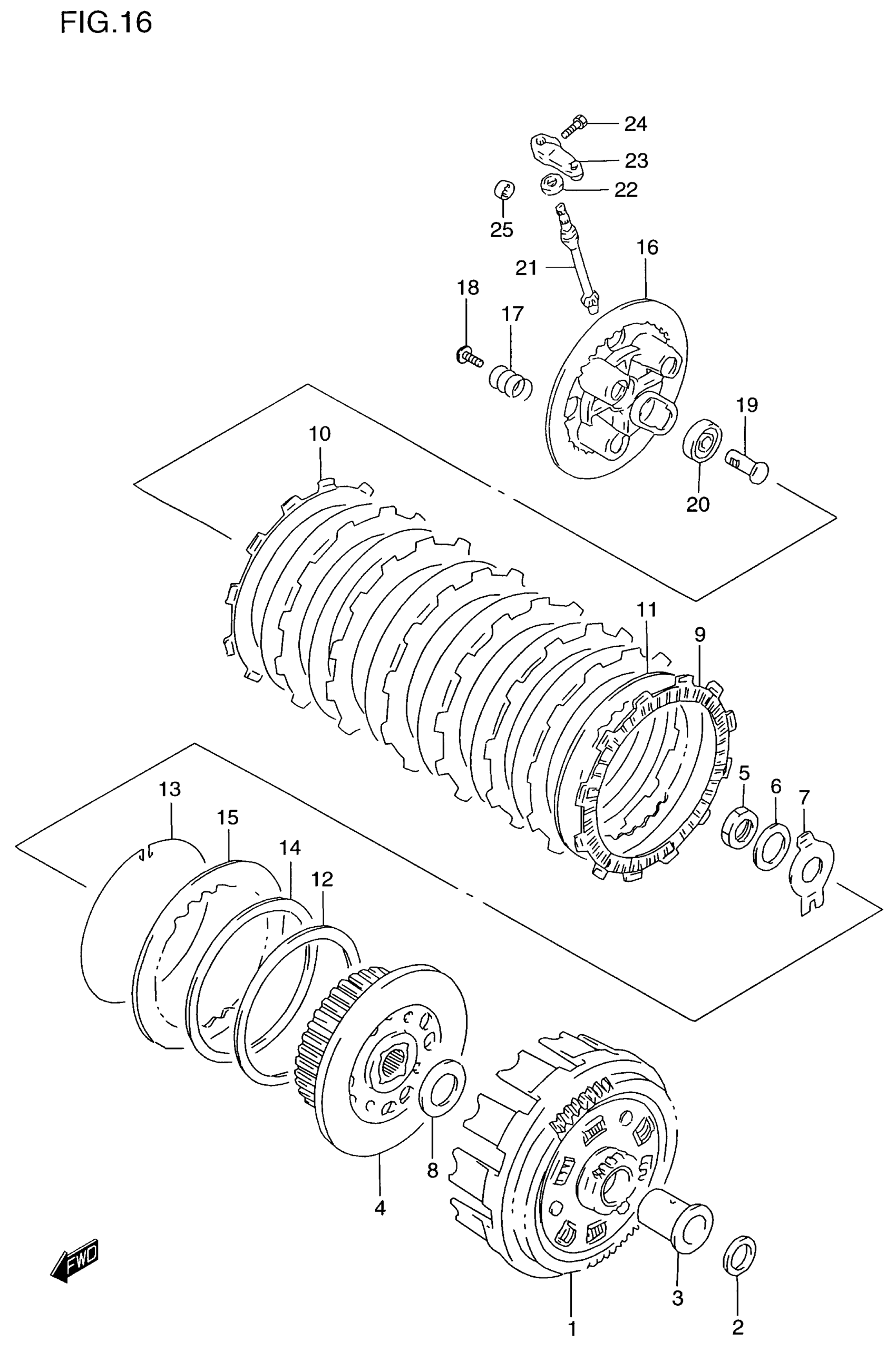

Suzuki DR650SE (2000) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY (NT:20/61) | MODEL T/V This part replaces 21200-44B12.

21200-44B21

$416.73

1

GEAR, PRIMARY (NT:20/61) | MODEL W/X/Y This part replaces 21200-44B13.

21200-44B21

$416.73

2

WASHER (22X32X3.0)

09160-22032

$5.33

3

SPACER,PRIMARY DRIVEN GEAR

21251-32E00

$26.35

4

HUB,CLUTCH SLEEVE

21410-44B00

$143.92

5

NUT | MODEL T This part replaces 09140-20002.

09140-20001

$3.37

5

NUT | MODEL V/W/X/Y

09140-20001

$3.37

6

WAVE WASHER

09164-20002

$3.70

7

WASHER (20.2X44X13)

09169-20005

$2.73

8

WASHER (22X44X2.0)

09160-22068

$10.72

9

PLATE, DRIVE (T:3)

21441-31D00

$26.88

10

PLATE, DRIVE (T:3)

21441-44B01

$22.52

11

PLATE, DRIVEN,NO.1 | T:1.6

21451-44B00

$10.69

12

SEAT, WAVE WASHER

21471-49100

$9.78

13

RING, WAVE WASHER STOPPER

21481-45100

$5.80

14

WASHER (117X132.5X1.2)

09164-00003

$12.67

15

PLATE (117X132.5X1.20) | T:2

21451-49200

$9.79

16

DISK, PRESSURE

21462-31D00

$57.40

17

SPRING

09440-20016

$5.24

18

BOLT (6X16)

09116-06168

$2.50

19

RACK,CLUTCH RELEASE

23165-31D00

$25.75

20

BEARING | MODEL T

08130-62007

Unavailable

20

BEARING | MODEL V/W/X/Y

08150-62007

$19.82

21

PINION,CLUTCH RELEASE

23261-32E00

$57.67

22

OIL SEAL (10X17X5)

09285-10004

$3.37

23

ARM, RELEASE

23271-31D00

$42.45

24

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

25

BEARING (12X16X10)

09263-12024

$12.67
