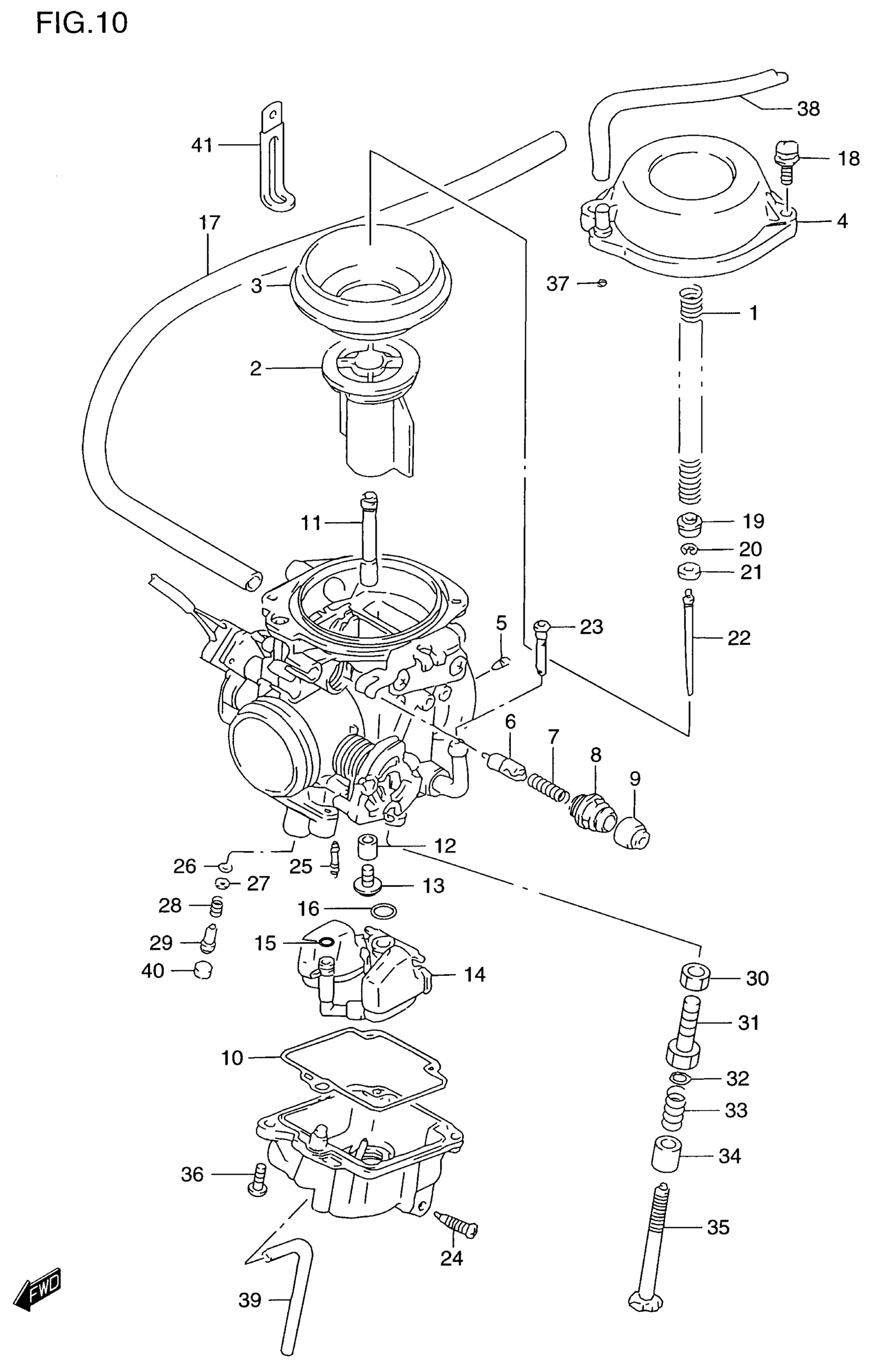

Suzuki DR650SE (2000) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL T/V/W/X This part replaces 13200-32E10.

13200-32E12

$991.90

CARBURETOR ASSY | MODEL Y This part replaces 13200-32E11.

13200-32E12

$991.90

CARBURETOR ASSY | MODEL T E28

13200-32E50

Unavailable

CARBURETOR ASSY | MODEL T/V/W/X E33 This part replaces 13200-32E60.

13200-32E61

$1,029.70

CARBURETOR ASSY | MODEL Y E33; Includes Item(s) 1 - 24

13200-32E61

$1,029.70

1

SPRING

13417-17D00

$7.18

2

VALVE, PISTON

13501-32E00

$90.25

3

.DIAPHRAGM This part replaces 13507-07D01.

13507-07D02

$26.78

4

COVER, DIAPHRAGM

13502-41C00

$49.42

5

JET, PILOT AIR (1.0)

09493-20007

$14.20

6

PLUNGER ASSY

13411-12D00

$26.55

7

SPRING

13417-22010

$3.56

8

HOLDER, GUIDE

13418-43410

$7.22

9

.CAP This part replaces 13681-04010.

13681-04011

$4.93

10

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

11

JET, NEEDLE (Y-5M)

09494-00884

$51.93

11

JET, NEEDLE (Y-5) | MODEL T E28

09494-00882

Unavailable

12

RING

13331-07D00

$6.63

13

.JET, MAIN (#140)

09491-28010

$9.69

14

FLOAT/NEEDLE VALVE ASSY This part replaces 13250-12E00.

13250-12EH0

$116.02

15

.O RING

13374-46710

$4.48

16

O RING This part replaces 13374-44080.

13374-35C00

$5.99

17

.HOSE This part replaces 13683-32E00.

13683-32E01

$12.12

18

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

19

RING

13331-12D00

$6.63

20

E RING

13394-31210

$4.64

21

RING

13387-07D00

$5.44

22

NEEDLE, JET (6F23-1)

13383-32E10

$15.68

22

NEEDLE, JET (6F19-3) | MODEL T E28

13383-32E00

Unavailable

23

FILTER

13236-12C00

$10.34

24

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

25

.JET, PILOT (#42.5) | Includes Item(s) 26 - 40

09492-42010

$9.32

26

O-RING This part replaces 13295-29900.

13295-29901

$4.34

27

WASHER

13291-29900

$1.98

28

.SPRING (NT:45)

13268-47070

$4.34

29

SCREW, PILOT (1,1/2)

13279-47070

$13.36

30

NUT This part replaces 13607-37010.

08310-00087

$2.13

31

ADJUSTER

13267-31D00

$34.22

32

WASHER

13615-43010

$3.25

33

SPRING

13271-33C00

$6.03

34

RING

13432-95210

$7.37

35

ADJUSTER

13267-31D10

$18.48

36

SCREW This part replaces 13601-05148.

13601-05148-XC0

$3.11

37

O RING

13278-02340

$1.91

38

HOSE(4.5X8.5X60 | L:600(r)250 MODEL T This part replaces 09354-45853-600.

09355-45001-600

$9.48

38

HOSE(4.5X8.5X60 | L:600(r)250 MODEL V/W/X/Y This part replaces 09355-45855-600.

09355-45001-600

$9.48

39

HOSE (3X5X425) | MODEL T E28

13684-32E00

Unavailable

39

HOSE (3X5X425) | E33 ~E.NO.107127

13684-32E00

Unavailable

39

HOSE(3X5X450) | E33 E.NO.107128~ This part replaces 13684-32E10.

13684-32E11

$8.98

40

PLUG | MODEL T E3,E33 MODEL V/W/X/Y

13281-05A00

$4.60

41

CLAMP | MODEL T/V This part replaces 09404-06431.

09404-06039

$1.74

41

CLAMP | MODEL W/X/Y This part replaces 09404-06432.

09404-06039

$1.74
