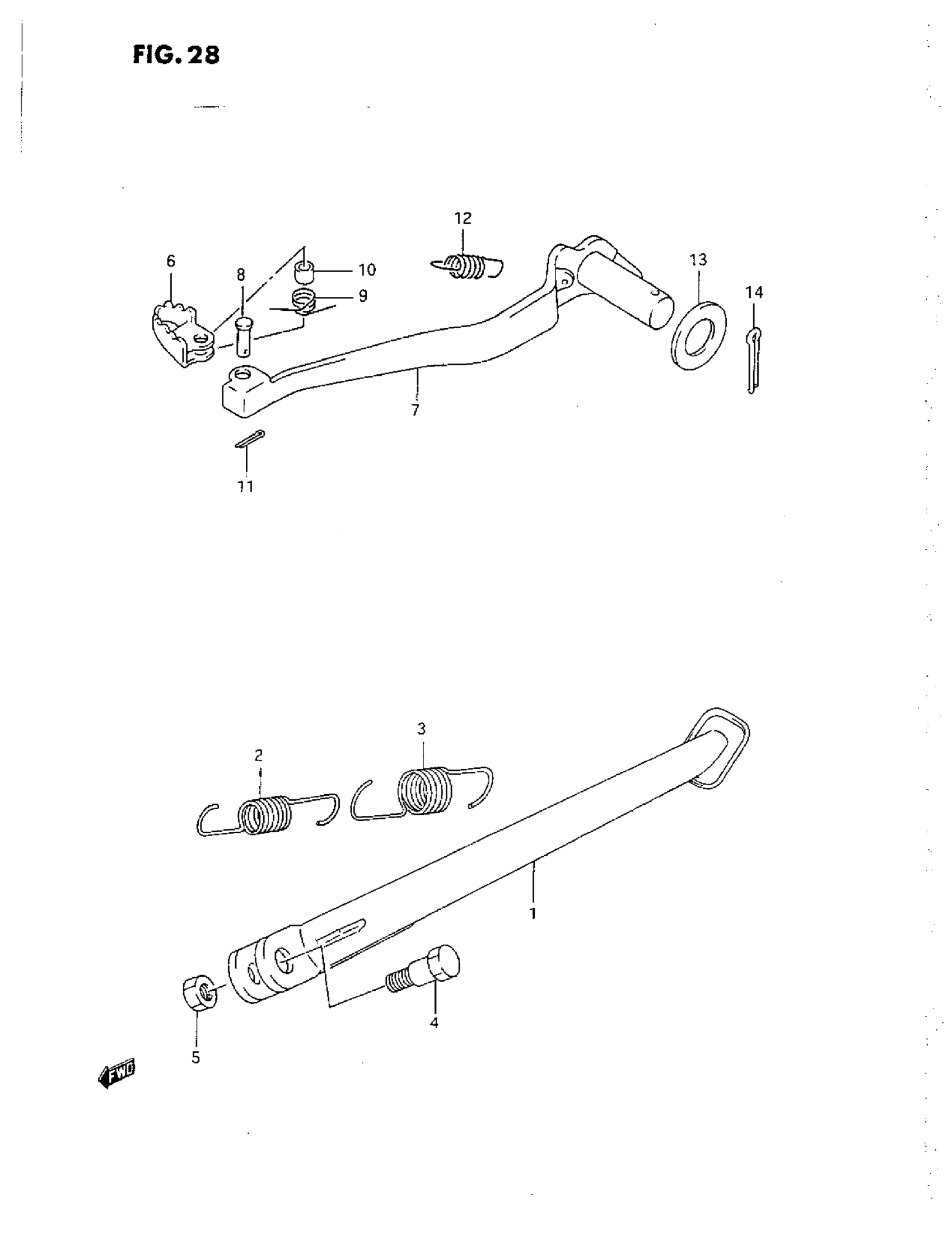

Suzuki DR650S (1993) STAND-REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP (BLACK)

42310-12E00-019

Unavailable

2

SPRING This part replaces 09443-14030.

09443-14030-XC0

Unavailable

3

SPRING, OUTER

09443-22003

Unavailable

4

BOLT

09111-10047

$4.11

5

NUT | MODEL N/P This part replaces 08310-22105.

09140-10043

$2.68

5

NUT | MODEL R

09159-10097

$5.66

6

PEDAL, BRAKE

43110-14130

$16.15

7

ARM, PEDAL

43120-12D00

Unavailable

8

PIN

09200-06038

$2.38

9

SPRING | MODEL N/P This part replaces 09444-11004.

09444-11005

$2.86

9

SPRING | MODEL R

09444-11005

$2.86

10

SPACER | MODEL N/P

09180-06137

Unavailable

10

SPACER | MODEL R This part replaces 09180-06165.

09180-06257

$2.83

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

SPRING, RETURN

09443-10033

$3.78

13

WASHER,17.5X34X | MODEL N/P This part replaces 09160-17021.

09160-17501-XC0

$2.28

13

WASHER,17.5X34X | MODEL R This part replaces 09160-17501.

09160-17501-XC0

$2.28

14

PIN This part replaces 04111-30308.

04111-3030A

$1.49
