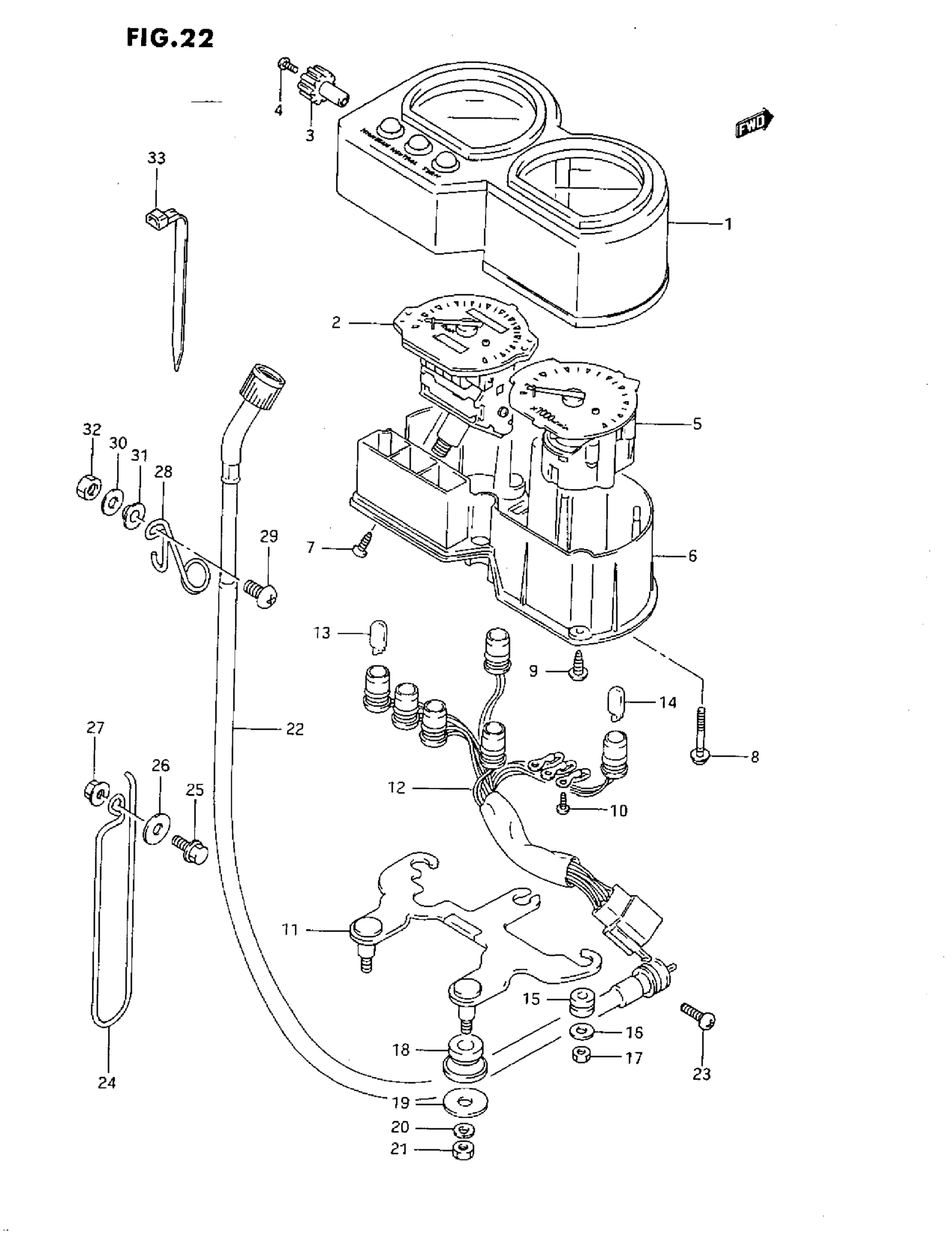

Suzuki DR650S (1993) SPEEDOMETER-TACHOMETER (N/P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 34150-12E00.

34150-12E10

Unavailable

2

SPEEDOMETER (MILE/KILO)

34120-12E00

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 34980-29B50.

34124-34A00

Unavailable

4

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

5

TACHOMETER

34220-12E00

Unavailable

6

CASE, METER

34111-12E00

Unavailable

7

SCREW This part replaces 02112-74106.

02112-7410B

$2.72

8

SCREW (4X36) This part replaces 34149-12E00.

34283-32B00

Unavailable

9

SCREW This part replaces 03511-04145.

03512-04149

Unavailable

10

SCREW This part replaces 02112-33106.

02112-3310B

$2.70

11

BRACKET, METER

34950-12E00

Unavailable

12

SOCKET

34170-12E00

Unavailable

13

BULB (12V, 3.4W)

09471-12028

$1.99

14

BULB (12V, 1.7W)

09471-12077

$3.55

15

CUSHION

34189-32B00

$5.78

16

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

17

NUT This part replaces 08310-11057.

08310-00057

$1.84

18

CUSHION

34956-31001

$4.37

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

20

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

21

NUT This part replaces 08310-12085.

08310-0008A

$1.84

22

CABLE ASSY,SPEE This part replaces 34910-12E00.

34910-12E01

$48.67

23

SCREW This part replaces 02112-05168.

02112-05167

$1.97

24

GUIDE METER CABLE NO.2

34938-14D30

$10.63

25

BOLT This part replaces 01517-06207.

01550-06207

$2.30

26

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

27

NUT This part replaces 09159-06017.

08319-31067

$2.03

28

GUIDE, CABLE NO.1 This part replaces 34938-14D20.

34938-14D21

$8.65

29

SCREW

02142-06167

$1.49

30

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

31

WASHER (6.3X16X1)

09169-06053

$1.49

32

.NUT This part replaces 08310-11068.

08310-00067

$2.13

33

CLAMP

09407-14403

$2.26
