1993 Suzuki DR650S Seat Diagram

← All diagrams

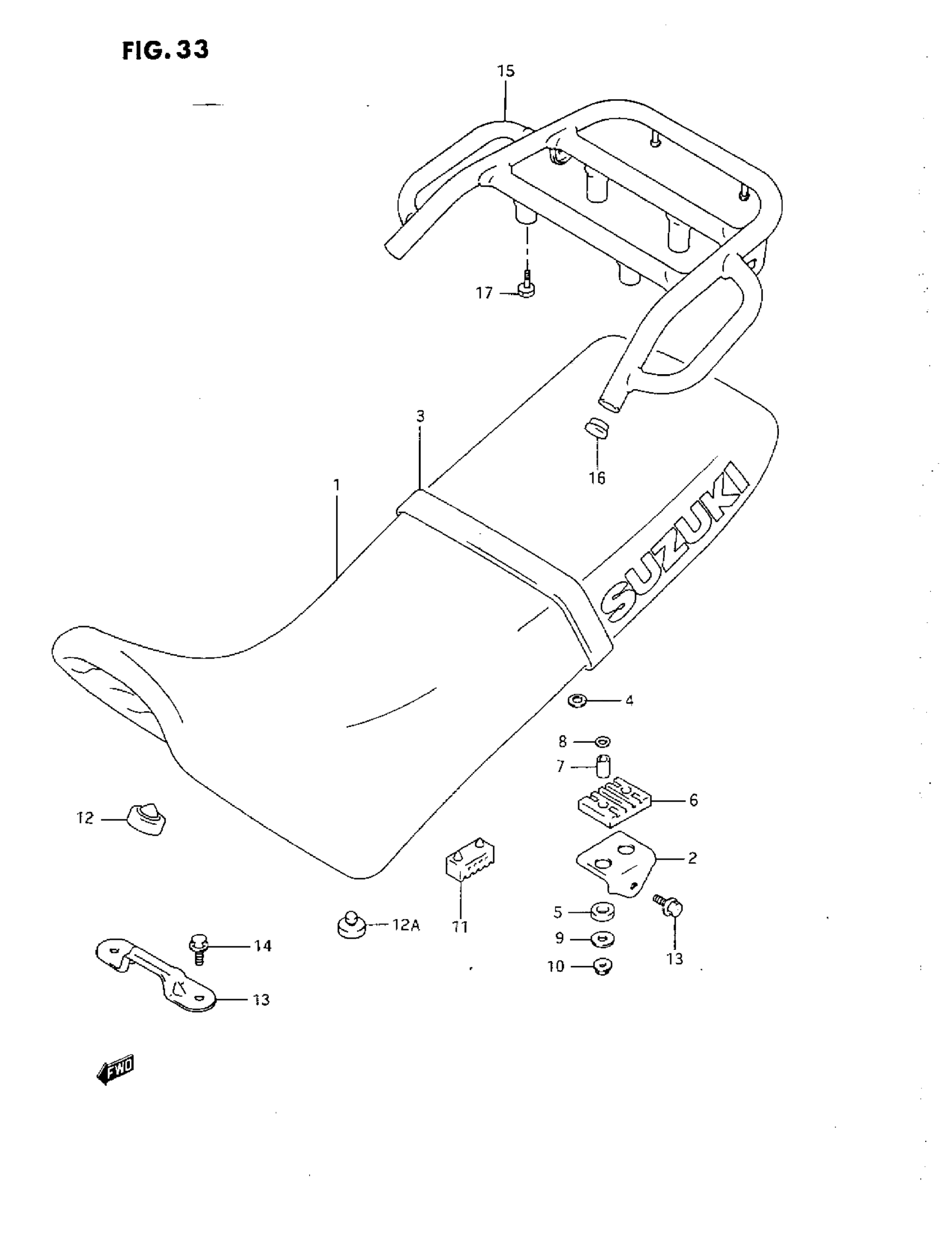

Find the part on the Seat diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR650S Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 45100-12E10-9DD.

45100-12E51-9DD

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 45100-12E40-9DD.

45100-12E41-9DD

1
Out of stock

2

BRACKET, SEAT RH

45210-12E00

2
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 45180-12E10-4UZ.

45180-12E50-4UZ

1
Out of stock

4

WASHER | MODEL N/P This part replaces 09169-06034.

09169-06071

2
Out of stock

4

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

2
Out of stock

5

CUSHION, SEAT HEAD

45147-23450

4
Out of stock

6

CUSHION, UPPER

45150-23450

2
Out of stock

7

SPACER

45219-44B00

4
Out of stock

8

WASHER, UPPER

08212-06201

6
Out of stock

9

.WASHER This part replaces 08322-21066.

08322-0106B

6
Out of stock

10

NUT This part replaces 08316-26066.

08316-1006B

6
Out of stock

11

CUSHION

45149-31300

6
Out of stock

12

CUSH10N

45149-12E00

2
Out of stock

12

CUSHION, FRONT | MODEL R

09321-10011

2
Out of stock

13

PLATE, FRONT HOOK

45119-12E00

1
Out of stock

14

BOLT (8X16) | MODEL R This part replaces 01550-08163.

01550-0816A

2
Out of stock

15

CARRIER, REAR (SILVER)

46310-12E00-21R

1
Out of stock

16

CAP

09250-16014

2
Out of stock

17

BOLT | MODEL N/P This part replaces 01517-06168.

01550-06167

4
Out of stock

17

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

4
Out of stock
