1993 Suzuki DR650S Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

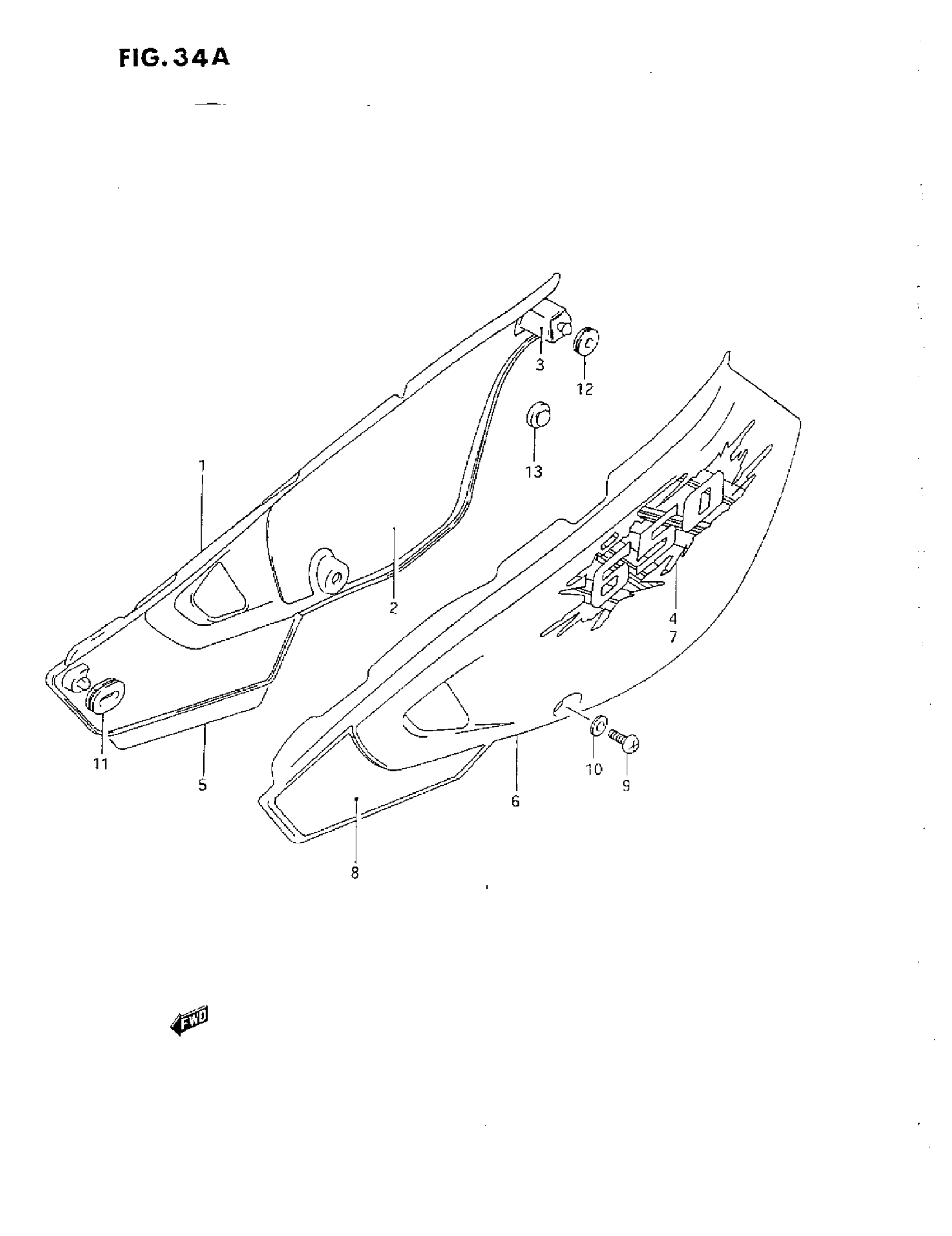

1993 Suzuki DR650S Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE)

47111-12E00-30H

1
Out of stock

2

SHIELD, COVER LOWER RH

47166-12E00

1
Out of stock

3

SHIELD, COVER UPPER RH

47167-12E00

1
Out of stock

4

EMBLEM, RH

68131-12E20-1YD

1
Out of stock

5

TAPE, RH NO.2

68136-12E00

1
Out of stock

6

COVER, FRAME LH (WHITE)

47211-12E00-30H

1
Out of stock

7

EMBLEM, LH

68131-12E20-1YD

1
Out of stock

8

TAPE, LH NO.2

68146-12E00

1
Out of stock

9

SCREW

02142-06167

2
Out of stock

10

2

$2.35

In stock

11

CUSHION, FRONT

09320-08029

2
Out of stock

12

CUSHION, REAR

09320-08028

2
Out of stock

13

CUSHION, MUFFLER

09321-10018

2
Out of stock
← Frame Cover Front Fender →
