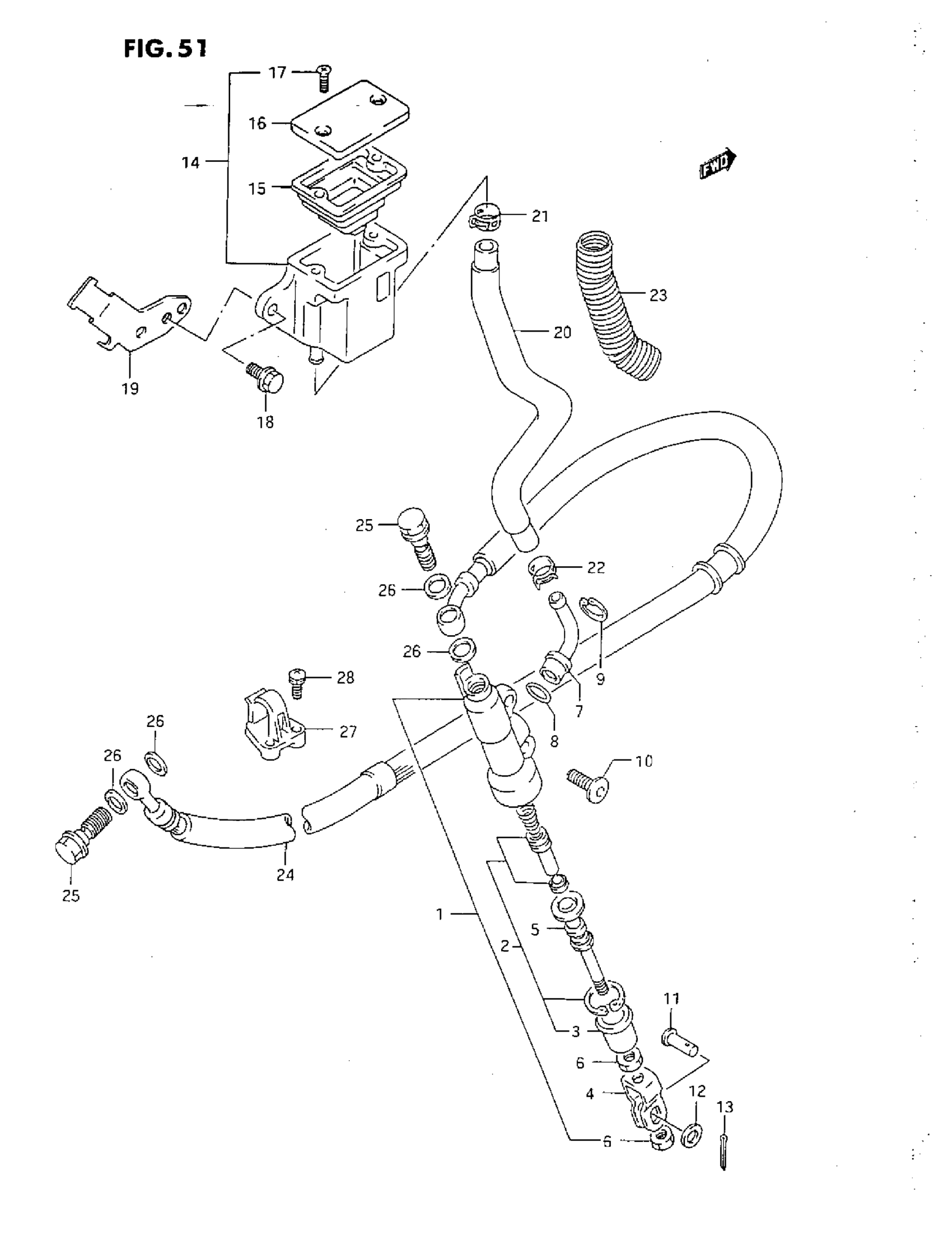

Suzuki DR650S (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-14A51

Unavailable

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-00B21

$29.25

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O-RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

BOLT

09106-06064

$6.02

11

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

12

WASHER | MODEL N/P This part replaces 08322-21067.

08322-01067

$2.13

12

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.26

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

14

TANK ASSY, REAR RESERVOIR

69740-38B21

$103.83

15

DIAPHRAGM

59667-04700

$9.78

16

CAP

59669-05D00

$16.76

17

SCREW

69689-04A00

$1.78

18

BOLT | MODEL N/P This part replaces 01517-06128.

01550-06127

$2.30

18

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

19

PLATE, RESERVOIR TANK | MODEL N/P

69750-12D02

Unavailable

20

HOSE, RESERVOIR TANK

69730-12D00

Unavailable

21

CLAMP This part replaces 09401-13413.

09401-13417

$2.26

22

CLIP | MODEL N/P This part replaces 09401-12402.

09401-12404

$2.34

22

CLAMP, HOSE LOWER | MODEL R

09401-12404

$2.34

23

SHIELD, HOSE | MODEL N/P This part replaces 69732-12D00.

69732-12D10

Unavailable

23

SHIELD, HOSE | MODEL R

69732-12D10

Unavailable

24

HOSE COMP, RR B This part replaces 69480-12D00.

69480-12DV0

Unavailable

25

BOLT, UNION | MODEL N/P

09360-10017

$3.42

25

UNION | MODEL R This part replaces 09360-10039.

09360-10061

$6.43

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

GUIDE, BRAKE HOSE

61196-03D00

$4.54

28

SCREW, OUTER | MODEL N/P This part replaces 02112-35168.

02112-35167

$2.63

28

SCREW | MODEL R This part replaces 02112-35163.

02112-3516A

$2.43
