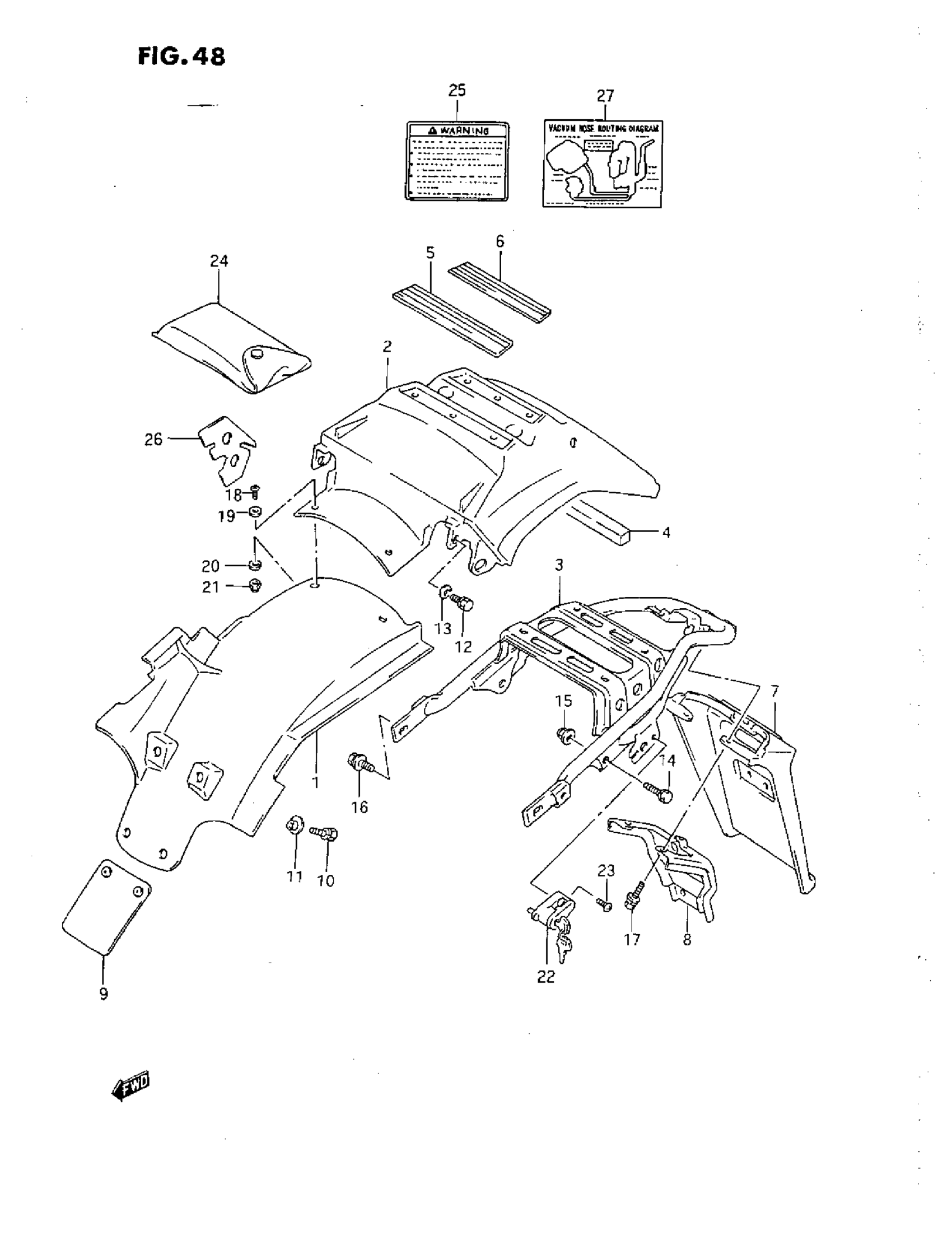

Suzuki DR650S (1993) REAR FENDER (N/P) Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-12E00

Unavailable

2

BODY, REAR FENDER REAR (WHITE)

63113-12E20-30H

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 63120-12E00.

63120-12E01

Unavailable

4

CUSHION, FENDER (L:125)

63192-12E00

Unavailable

5

CUSHION, FENDER (L:166.2)

63193-12E00

Unavailable

6

CUSHION, FENDER (L:149.5)

63193-12E10

Unavailable

7

EXTENSION, REAR FENDER

63311-03D20

Unavailable

8

REINFORCEMENT, EXTENSION

63320-03D03

Unavailable

9

MUD GUARD, REAR FENDER

63411-13700

Unavailable

10

BOLT This part replaces 01137-06167.

01570-06167

$3.03

11

WASHER

09169-06016

$1.65

12

BOLT This part replaces 01137-06128.

01570-06127

$2.50

13

WASHER This part replaces 09169-06028.

09169-06041

$2.20

14

BOLT This part replaces 01137-08255.

01570-0825A

$3.15

15

NUT

08319-31087

$2.32

16

BOLT, REINF

09118-08128

Unavailable

17

BOLT, EXTENSION

09116-06152

$2.36

18

SCREW | MODEL N This part replaces 02142-05128.

02142-05127

$1.97

18

SCREW (5X16) | MODEL P

02142-05167

$1.49

19

WASHER (5.5X16X1.2) | MODEL P This part replaces 09160-05017.

09160-05043

$2.30

20

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

21

NUT

08319-21057

$2.07

22

LOCK SET,HELMET This part replaces 95700-03810.

95700-03811

$75.97

23

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

24

TOOL ASSY This part replaces 09800-20052.

09800-21023

Unavailable

25

LABEL,GENERAL W This part replaces 68319-15D00.

68319-33E02

$7.25

26

SHIELD, REAR FENDER

63116-12E01

Unavailable

27

LABEL, PIPING DIAGRAM | CALIFORNIA ONLY

68387-14A00

Unavailable

28

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN

68332-14A60

Unavailable

29

MANUAL, OWNER'S | MODEL N

99011-12E50-03A

Unavailable

29

MANUAL, OWNER'S | MODEL P DRAWING NOT SHOWN

99011-12E51-03A

Unavailable
