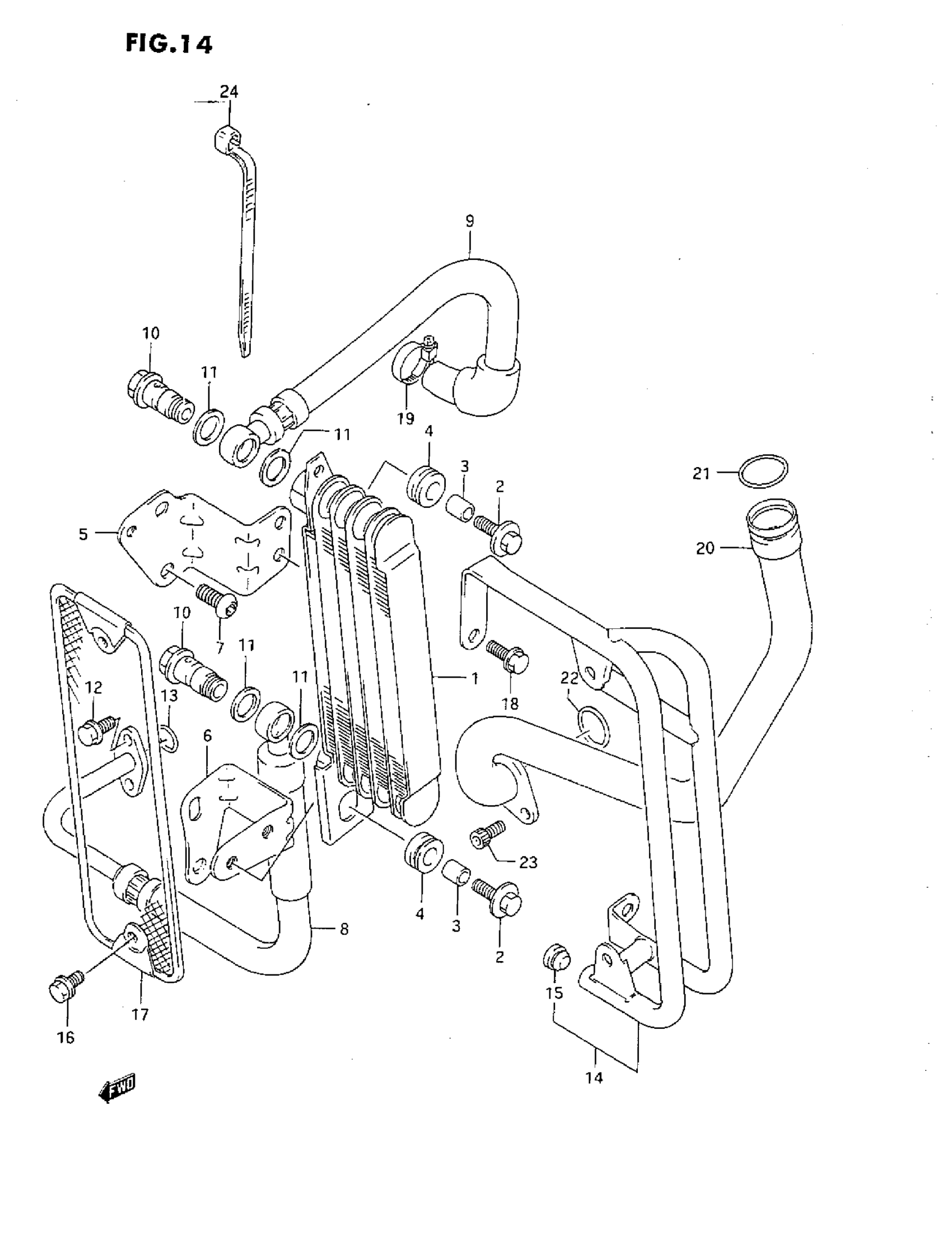

Suzuki DR650S (1993) OIL COOLER Diagram

COOLER ASSY, OIL

16600-14A10

Unavailable

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

CUSHION, OIL COOLER

09320-10015

$2.54

BRACKET, OIL COOLER UPPER

16620-14A10

Unavailable

BRACKET, OIL COOLER LOWER

16630-14A10

Unavailable

BOLT (8X12)

09106-08116

$3.20

HOSE, OIL COOLER NO.1

16460-14A10

Unavailable

HOSE, OIL COOLER NO.2

16470-14A10

Unavailable

BOLT, UNION (M:12XL:28.5) | MODEL N/P This part replaces 09360-12004.

09360-12006

$14.73

BOLT, UNION (M:12XT-:28.5) | MODEL R

09360-12006

$14.73

GASKET (14X20X1.5)

09168-14011

$1.85

BOLT | MODEL N/P This part replaces 01547-06165.

01547-0616B

$2.45

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.45

O-RING (D:2.4, ID:12.3)

09280-12008

$2.76

GUARD, OIL COOLER | MODEL N This part replaces 16640-14A10.

16640-14A12

Unavailable

GUARD, OIL COOLER | MODEL P This part replaces 16640-14A11.

16640-14A12

Unavailable

GUARD, OIL COOLER | MODEL R

16640-14A12

Unavailable

PLUG, PIPE

09250-09005

Unavailable

BOLT, CLAMP | MODEL N/P This part replaces 01517-06125.

01550-0612A

$1.97

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

BUMPER, OIL COOLER

16650-14A10

Unavailable

BOLT | MODEL N/P

01547-06127

$1.65

BOLT | MODEL R

07130-06127

Unavailable

CLAMP, LOWER This part replaces 09402-15502.

09402-17511

Unavailable

PIPE, OIL RETURN

11160-12D01

Unavailable

O-RING (D:3.7, ID:21.7)

09280-22016

$5.58

O RING (D:2.4,ID:23.7) | MODEL N/P This part replaces 09280-22010.

09280-24010

$5.64

O RING (D:2.4,ID:23.7) | MODEL R This part replaces 09280-24005.

09280-24010

$5.64

BOLT | MODEL N/P This part replaces 07110-06167.

07130-06167

$3.16

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.39

CLAMP

09407-14403

$2.26
