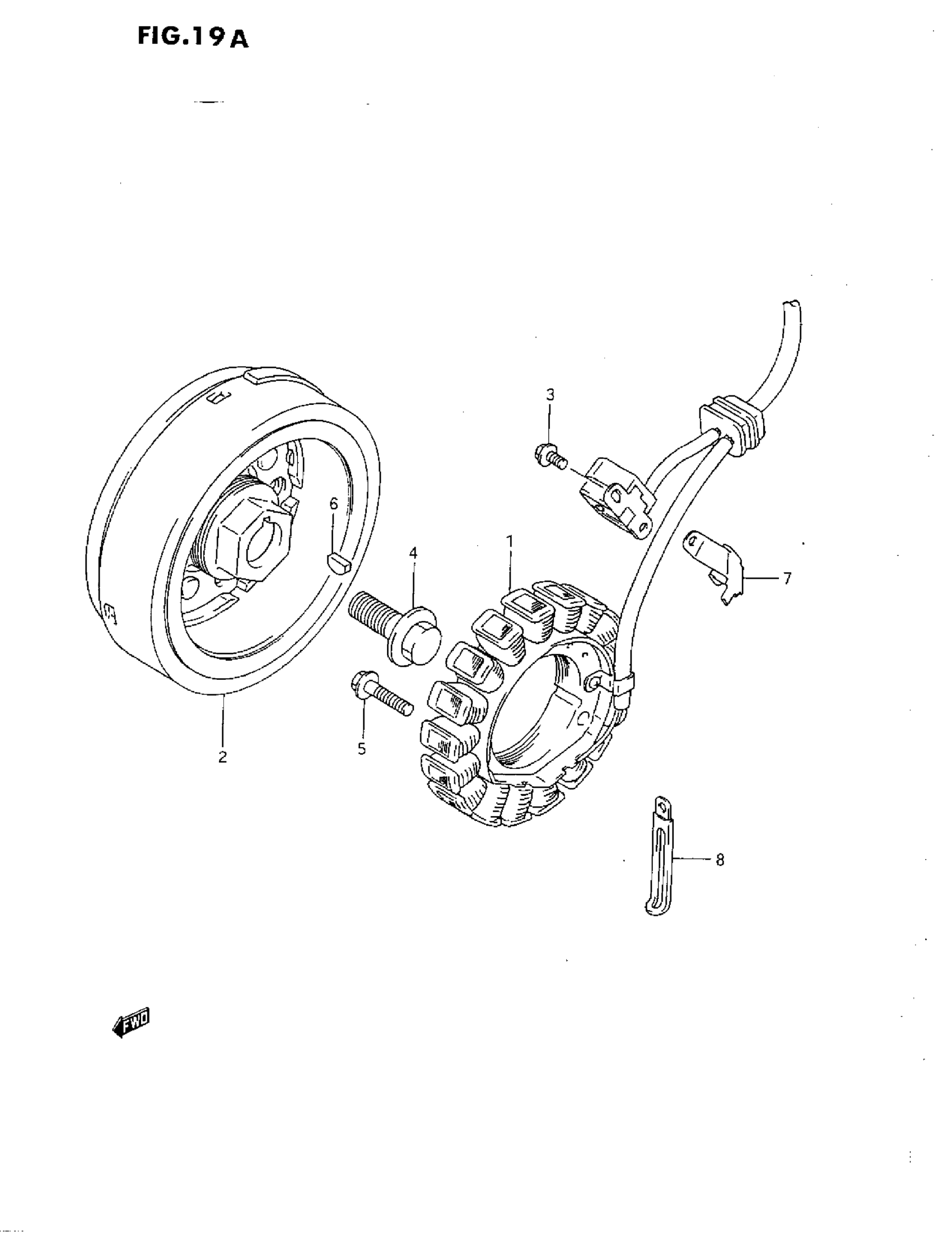

Suzuki DR650S (1993) MAGNETO (R) Diagram

#

Description

Price

1

STATOR ASSY

32101-12D10

Unavailable

2

ROTOR

32102-12D10

Unavailable

3

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

4

BOLT

09103-14001

$11.82

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

KEY

09420-05007

$4.60

7

CLAMP

32371-12D20

Unavailable

8

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
