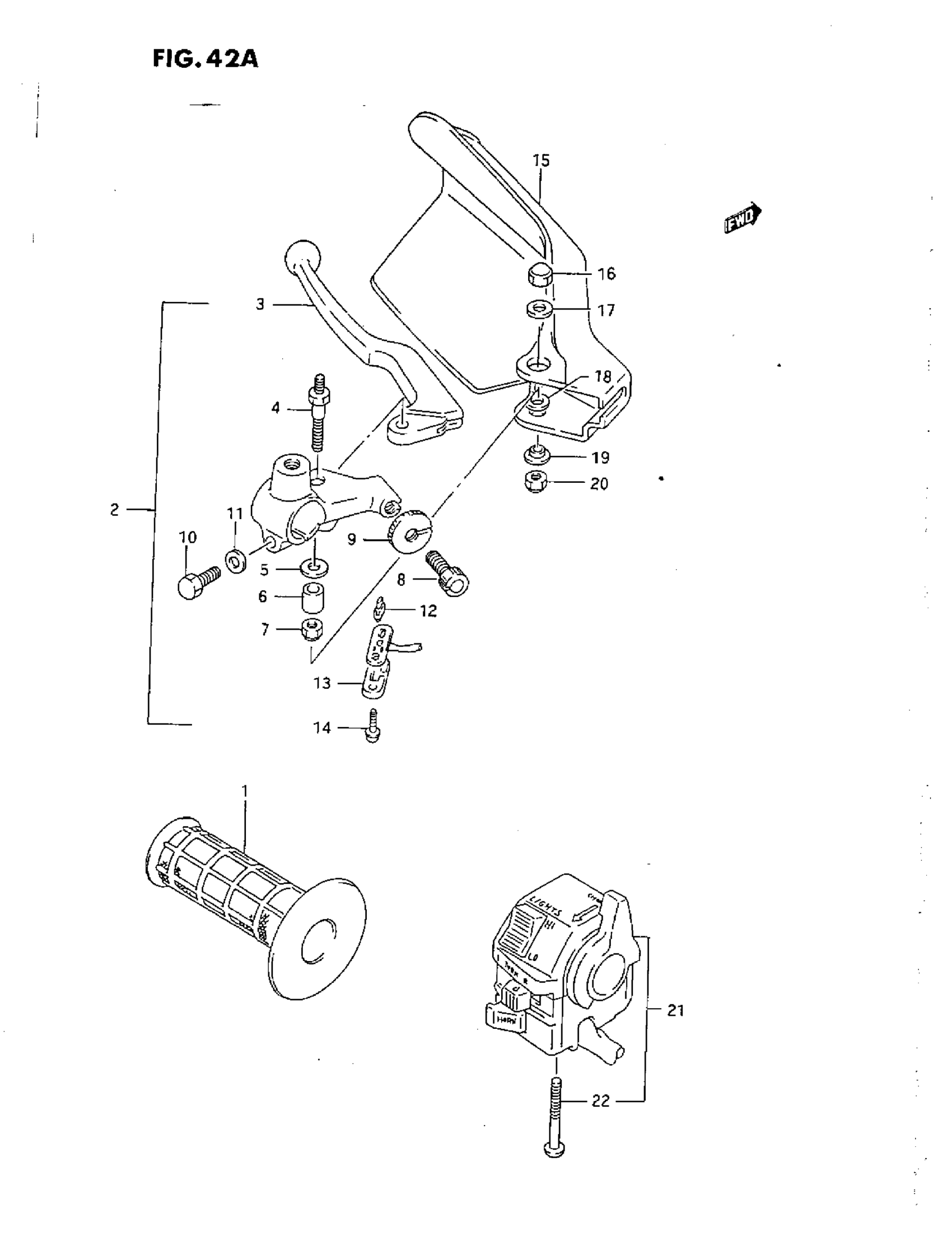

Suzuki DR650S (1993) LEFT HANDLE SWITCH (R) Diagram

#

Description
Price

1

GRIP L

57211-12D00

$16.70

2

LEVER ASSY,CLUT This part replaces 57500-12E11.

57500-12E51

$85.43

3

LEVER, CLUTCH

57620-20A02

$18.77

4

BOLT This part replaces 57531-44B00.

57531-44B01

$7.51

5

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

6

SPACER

57532-44B00

$4.10

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

8

ADJUSTER, CABLE

57441-44400

$6.28

9

NUT

57442-11010

$2.79

10

BOLT

01204-06204

$2.72

11

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

12

CONTACT

57465-18601

$4.34

13

COVER

57481-33010

$5.84

14

SCREW

57484-49110

$1.98

15

COVER,KNUCKLE,L This part replaces 57541-31D00-0NF.

57541-31D30-0NF

Unavailable

16

NUT This part replaces 08313-10063.

08313-1006A

$1.84

17

.WASHER (6.5X20X1.6)

09160-06088

$1.65

18

WASHER

09160-06019

$1.49

19

WASHER

09169-06055

$2.27

20

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

21

SWITCH ASSY, HANDLE LH This part replaces 37400-12E10.

37400-12E11

Unavailable

22

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

22

NO DESCRIPTION AVAILABLE This part replaces 59300-44B03.

59300-44BV0

Unavailable
