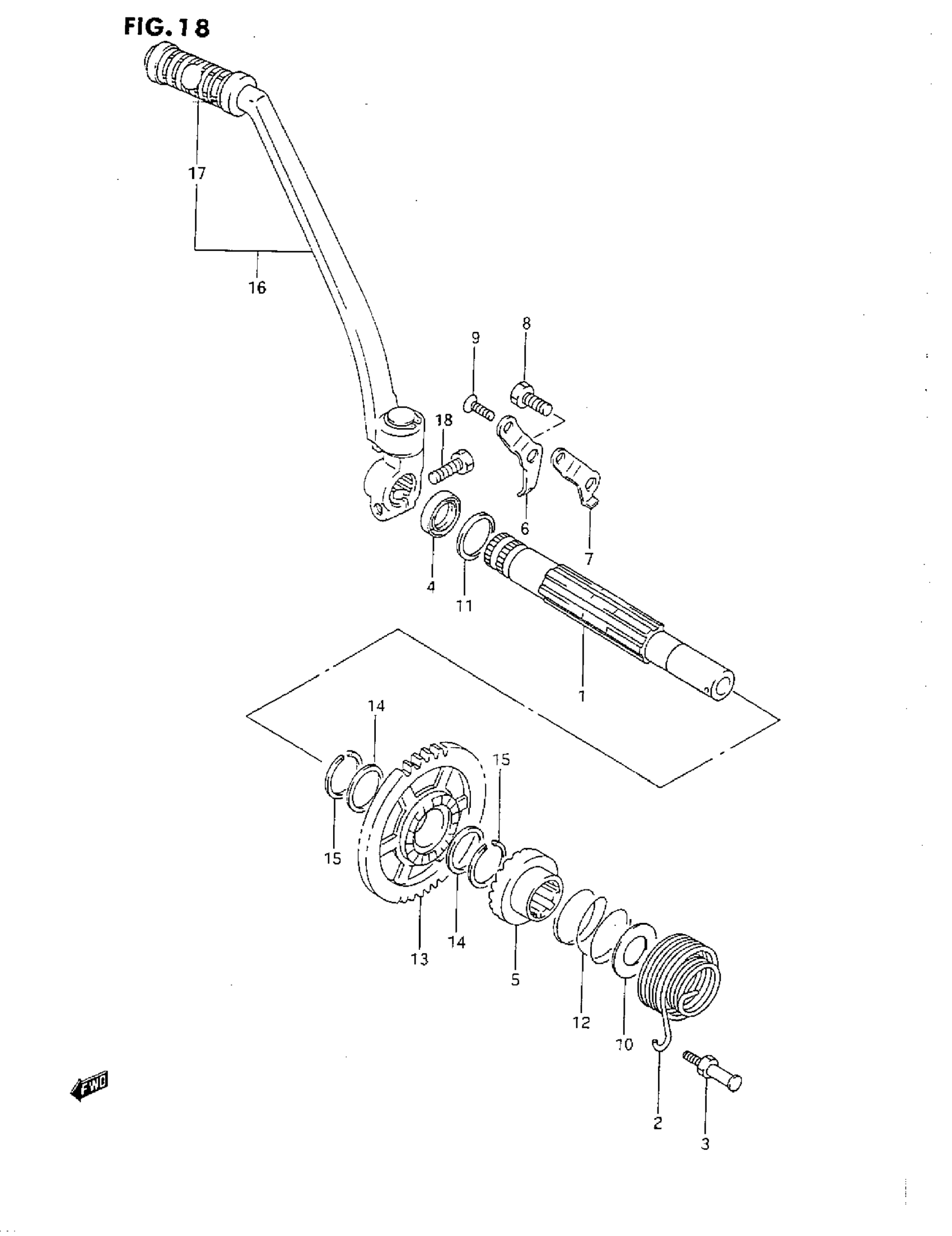

Suzuki DR650S (1993) KICK STARTER (N/P) Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-14A02

Unavailable

2

SPRING

09448-41003

$9.05

3

BOLT

26237-14500

Unavailable

4

OIL SEAL (20X27X6)

09283-20044

$6.02

5

STARTER, KICK This part replaces 26231-38201.

26231-38202

$34.45

6

LIFTER

26232-14A00

Unavailable

7

STOPPER

26233-14A01

Unavailable

8

BOLT This part replaces 01107-08206.

01500-0820A

$2.28

9

SCREW

02122-06167

$1.49

10

WASHER

08211-17341

$2.50

11

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

$2.62

12

SPRING

09440-32006

$2.38

13

GEAR, DRIVE (NT:40)

26240-14A00

Unavailable

14

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

15

CIRCLIP

09380-22006

$3.10

16

LEVER ASSY, KICK STARTER

26300-14A03

Unavailable

17

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

18

BOLT

09100-08194

Unavailable
