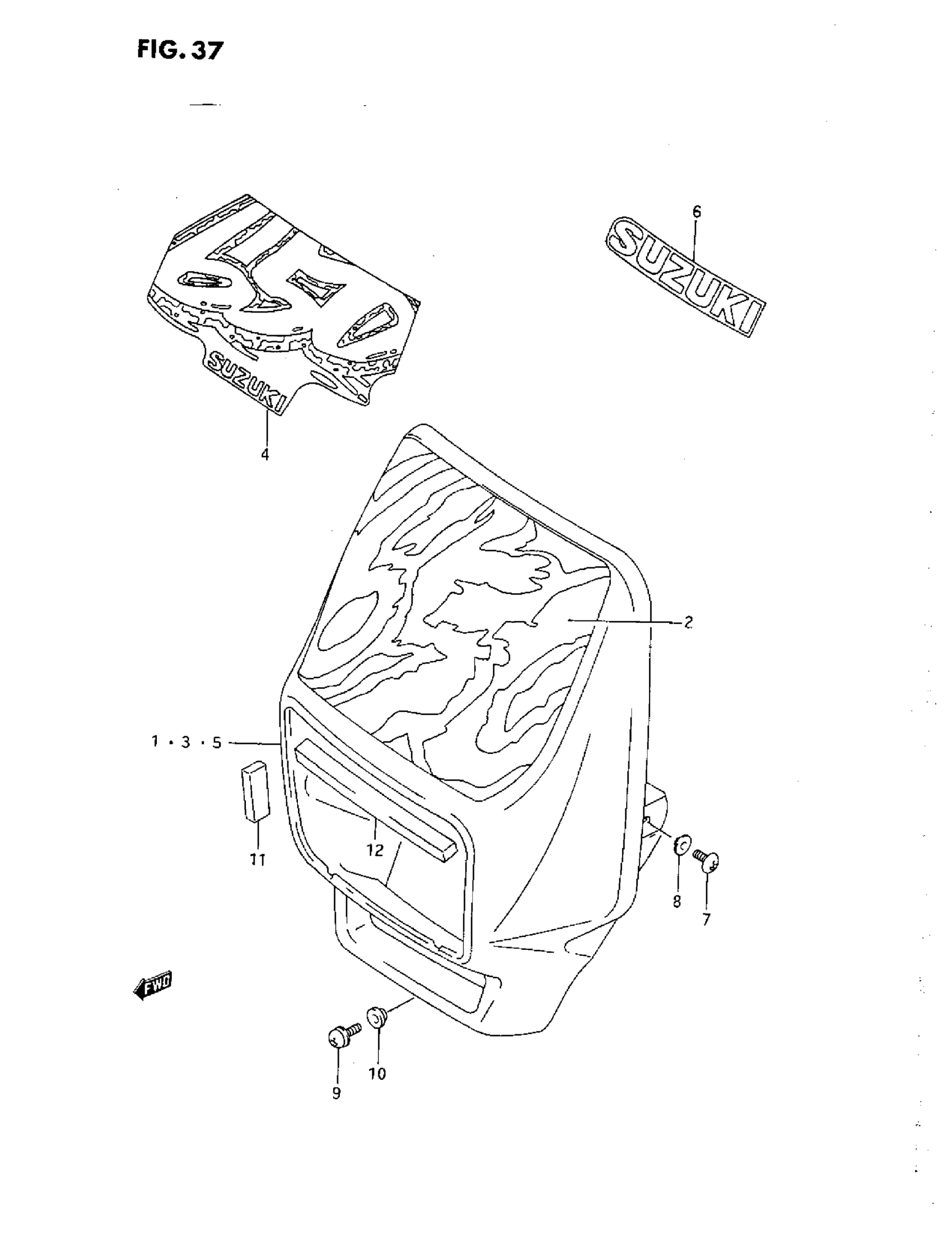

Suzuki DR650S (1993) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEAD LAMP (WHITE) | MODEL N This part replaces 51800-12E10-28X.

51811-12E00-30H

Unavailable

2

TAPE, HEADLAMP COVER | MODEL N

68725-12E10-M82

Unavailable

3

COVER, HEAD LAMP (WHITE) | MODEL P This part replaces 51800-12E20-28X.

51811-12E00-30H

Unavailable

4

TAPE, HEADLAMP COVER | MODEL P

68725-12E20-A4F

Unavailable

5

COVER, HEAD LAMP (WHITE) | MODEL R This part replaces 51800-12E40-30H.

51811-12E00-30H

Unavailable

6

EMBLEM, SUZUKI | MODEL R

68174-35B00-A2L

Unavailable

7

SCREW, COVER SIDE

02142-06127

$1.49

8

WASHER, COVER SIDE

09169-06011

$3.45

9

SCREW, LOWER | MODEL N/P This part replaces 02142-15128.

02142-15127

$2.72

9

SCREW, COVER LOWER | MODEL R

02142-05127

$1.97

10

WASHER, COVER LOWER

09161-05017

$3.18

11

CUSHION This part replaces 51827-12E00.

51827-01A00

$6.17

12

CUSHION, UPPER

51828-12E00

Unavailable
