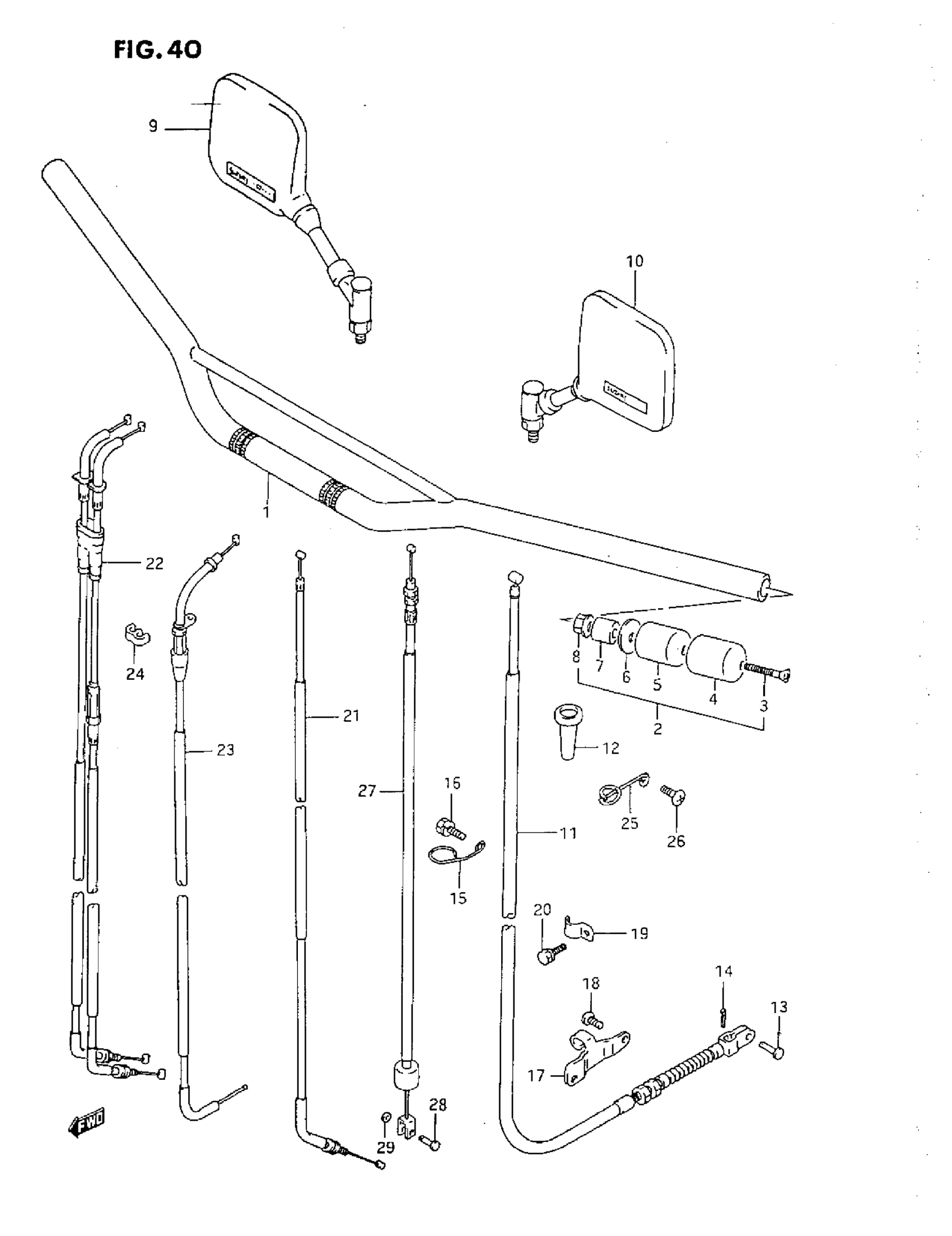

Suzuki DR650S (1993) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL N ->56110-12E00-291 This part replaces 56110-12E10-291.

56110-12E01-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL P ->56110-12E01-291 This part replaces 56110-12E00-291.

56110-12E01-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL R

56110-12E01-291

Unavailable

2

BALANCER SET,HA | MODEL N/P This part replaces 56200-36810.

56200-12813

Unavailable

2

BALANCER SET,HA | MODEL R This part replaces 56200-12810.

56200-12813

Unavailable

3

SCREW | MODEL N/P This part replaces 02132-06655.

02122-0665B

$2.76

3

SCREW | MODEL R This part replaces 02122-06653.

02122-0665B

$2.76

4

CAP | BLACK ->56274-31300 This part replaces 56274-05350.

56274-31300

Unavailable

4

CAP

56274-31300

Unavailable

5

BALANCER

56271-49420

Unavailable

6

SPACER This part replaces 56275-34400.

56275-34401

$4.02

7

EXPANDER

56272-44500

$4.42

8

NUT

09159-06024

$2.11

9

MIRROR ASSY RR VIEW R This part replaces 56500-12D02.

56500-06G30

$156.05

10

MIRROR ASSY RR VIEW L This part replaces 56600-12D02.

56600-06G30

$156.05

11

CABLE ASSY, CLUTCH

58200-12E00

Unavailable

12

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

13

PIN

09200-06004

$2.20

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

GUIDE, CABLE | MODEL N/P

58621-17200

Unavailable

16

BOLT | MODEL N/P This part replaces 01137-06165.

01570-0616A

$2.23

16

BOLT | MODEL R This part replaces 01570-06163.

01570-0616A

$2.23

17

STOPPER, CABLE

58634-37410

Unavailable

18

SCREW | MODEL N/P This part replaces 02112-06125.

02112-0612A

$1.49

18

BOLT | MODEL R This part replaces 01547-06123.

01547-0612B

$1.49

19

CLAMP

09403-09306

Unavailable

20

BOLT, CLAMP | MODEL N/P This part replaces 01517-06125.

01550-0612A

$1.97

20

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

21

CABLE ASSY, DECOMPRESSION | MODEL N/P

58900-12E00

Unavailable

22

CABLE ASSY, THROTTLE

58300-12E01

Unavailable

23

CABLE ASSY, STARTER | MODEL N/P This part replaces 58410-12E00.

58410-12E02

Unavailable

23

CABLE ASSY, STARTER | MODEL R This part replaces 58410-12E01.

58410-12E02

Unavailable

24

CLIP

09408-00066

$2.07

25

GUIDE,CLUTCH CA This part replaces 58294-27C00.

58294-27C01

$6.18

26

SCREW | MODEL N This part replaces 02152-06125.

02112-0612A

$1.49

26

SCREW | MODEL P This part replaces 02152-06127.

02112-06127

$1.84

26

SCREW | MODEL R This part replaces 02112-16123.

02112-1612B

$3.03

27

CABLE ASSY, DECOMPRESSION | MODEL R

58900-12D11

Unavailable

28

PIN | MODEL R

09209-04020

Unavailable

29

E RING | MODEL R This part replaces 08332-11033.

08332-1103A

$2.15
