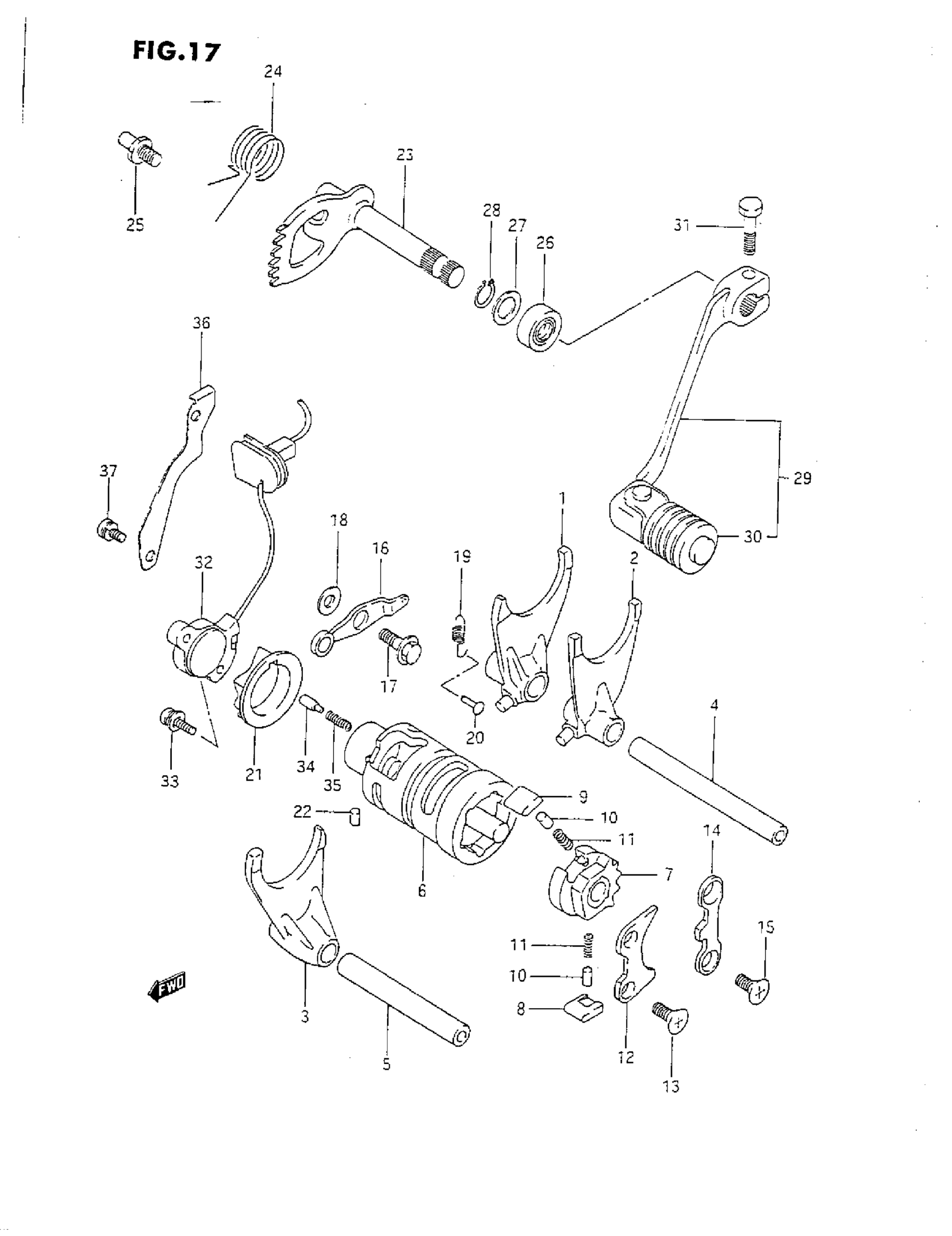

Suzuki DR650S (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO,1 This part replaces 25211-37400.

25211-37401

$90.20

2

FORK,GEAR SHIFT,NO,2 This part replaces 25221-37400.

25221-37401

$90.20

3

FORK,GEAR SHIFT,NO.3 This part replaces 25231-14A00.

25231-14A01

$84.50

4

SHAFT, FORK NO.1 | MODEL N/P, L:95 This part replaces 25411-14500.

25411-20A11

Unavailable

4

SHAFT, FORK NO.1 | MODEL R, L:95

25411-20A11

Unavailable

5

SHAFT, FORK NO.2 | MODEL N/P, L:75 This part replaces 25421-14A01.

25421-14A02

$23.07

5

SHAFT, FORK NO.2 | MODEL R, L:75

25421-14A02

$23.07

6

CAM, GEAR SHIFTING

25310-37400

$135.23

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER,GEAR SHIFT POLE

25331-14A00

$7.64

13

SCREW | MODEL N/P This part replaces 02122-06128.

02122-06127

$1.84

13

SCREW | MODEL R This part replaces 02122-06123.

02122-0612A

$1.49

14

GUIDE, CAM

25341-40001

$12.17

15

SCREW | MODEL N/P This part replaces 02122-06128.

02122-06127

$1.84

15

SCREW | MODEL R This part replaces 02122-06123.

02122-0612A

$1.49

16

STOPPER

25350-37400

$15.42

17

BOLT | MODEL N/P This part replaces 09111-06019.

09111-06054

$3.70

17

BOLT | MODEL R

09111-06054

$3.70

18

WASHER

08211-06141

$1.59

19

SPRING

09443-08020

$2.90

20

HOOK

09223-04001

$1.68

21

PLATE,GEAR SHIFT CAM STOPPER | MODEL N/P This part replaces 25381-37400.

25381-37401

$20.77

21

PLATE,GEAR SHIFT CAM STOPPER | MODEL R

25381-37401

$20.77

22

PIN This part replaces 06211-04063.

04221-04069

$2.12

23

SHAFT,GEAR SHIFT This part replaces 25510-14A02.

25510-32E00

$98.40

24

SPRING This part replaces 09444-26012.

09444-26013

$3.10

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

27

WASHER

08212-12201

$1.72

28

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

29

LEVER ASSY, GEAR SHIFTING | MODEL N/P

25600-12D01

Unavailable

29

LEVER ASSY, GEAR SHIFTING | MODEL R

25600-12D11

Unavailable

30

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$5.05

31

BOLT, GEAR SHIFT LINK | MODEL N/P This part replaces 01107-06205.

01500-0620A

$1.78

31

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01500-06203.

01500-0620A

$1.78

32

BODY, GEAR SHIFTING SWITCH

37720-14A11

Unavailable

33

SCREW | MODEL N/P This part replaces 02112-75168.

02112-7516A

$2.41

33

SCREW | MODEL R This part replaces 02112-75163.

02112-7516A

$2.41

34

CONTACT

09209-05011

$2.20

35

SPRING

09440-04010

$1.54

36

CLAMP

37721-14A00

Unavailable

37

SCREW | MODEL N/P

02112-36108

Unavailable

37

SCREW | MODEL R

02112-36103

Unavailable
