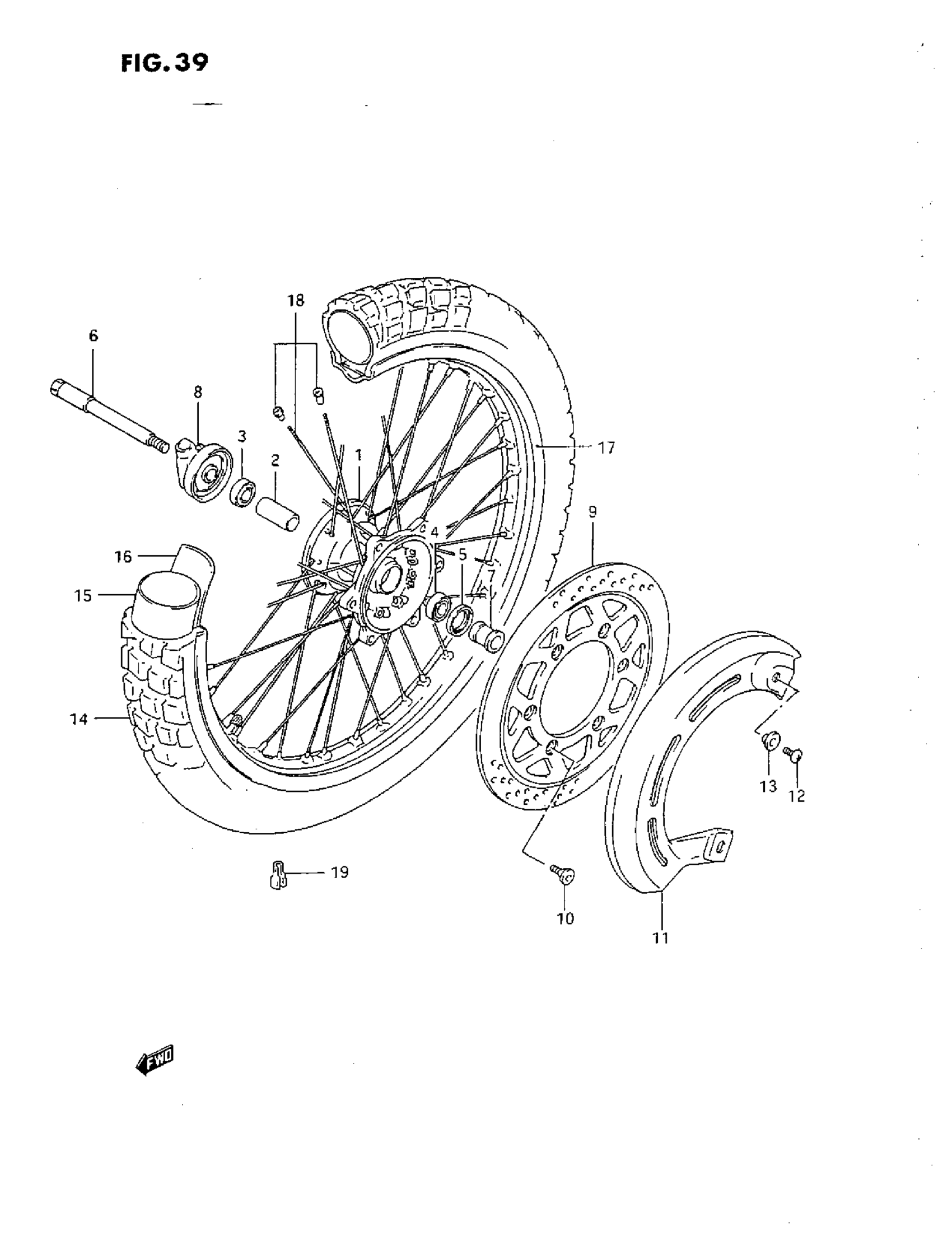

Suzuki DR650S (1993) FRONT WHEEL Diagram

#

Description
Price

1

HUB,FRONT WHEEL This part replaces 54111-31D00.

54111-31D01

$310.70

2

SPACER, FRONT HUB

54731-44B00

Unavailable

3

BEARING, RH

08113-62027

$14.40

4

BEARING, LH

08123-62027

$18.57

5

SEAL, HUB LH

09284-22004

$9.73

6

AXLE, FRONT | MODEL N

54711-14D00

Unavailable

6

AXLE, FRONT | MODEL P/R ->54711-14D00 This part replaces 54711-14D10.

54711-14D00

Unavailable

7

SPACER, AXLE, LH

54751-14D00

Unavailable

8

BOX ASSY, SPEEDOMETER GEAR

54600-14D00

Unavailable

9

DISC, FRONT BRAKE

59221-12D00

Unavailable

10

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

11

COVER, BRAKE DISC (WHITE) | MODEL N

59231-31D10-30H

Unavailable

11

COVER, BRAKE DISC (BLUE) | MODEL P/R

59231-31D10-0NF

Unavailable

12

SCREW

02142-06127

$1.49

13

WASHER This part replaces 09169-06028.

09169-06041

$2.20

14

TIRE, FRONT (90/90-2154S) BRIDGESTONE

55100-12E00

Unavailable

15

TIRE, FRONT This part replaces 55200-44B10.

55200-16511

$36.73

16

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

17

RIM, FRONT WHEEL (1.85X21)

55311-44B00

$488.28

18

SPOKE SET,FRONT WHEEL

55320-31D00

$103.33

19

BALANCER, WHEEL (20G) | 0-2, U.R. This part replaces 55412-38A00.

55412-41F00

$8.12

19

BALANCER WHEEL (30G) | 0-2, U.R. This part replaces 55413-38A00.

55413-41F00

$7.50
