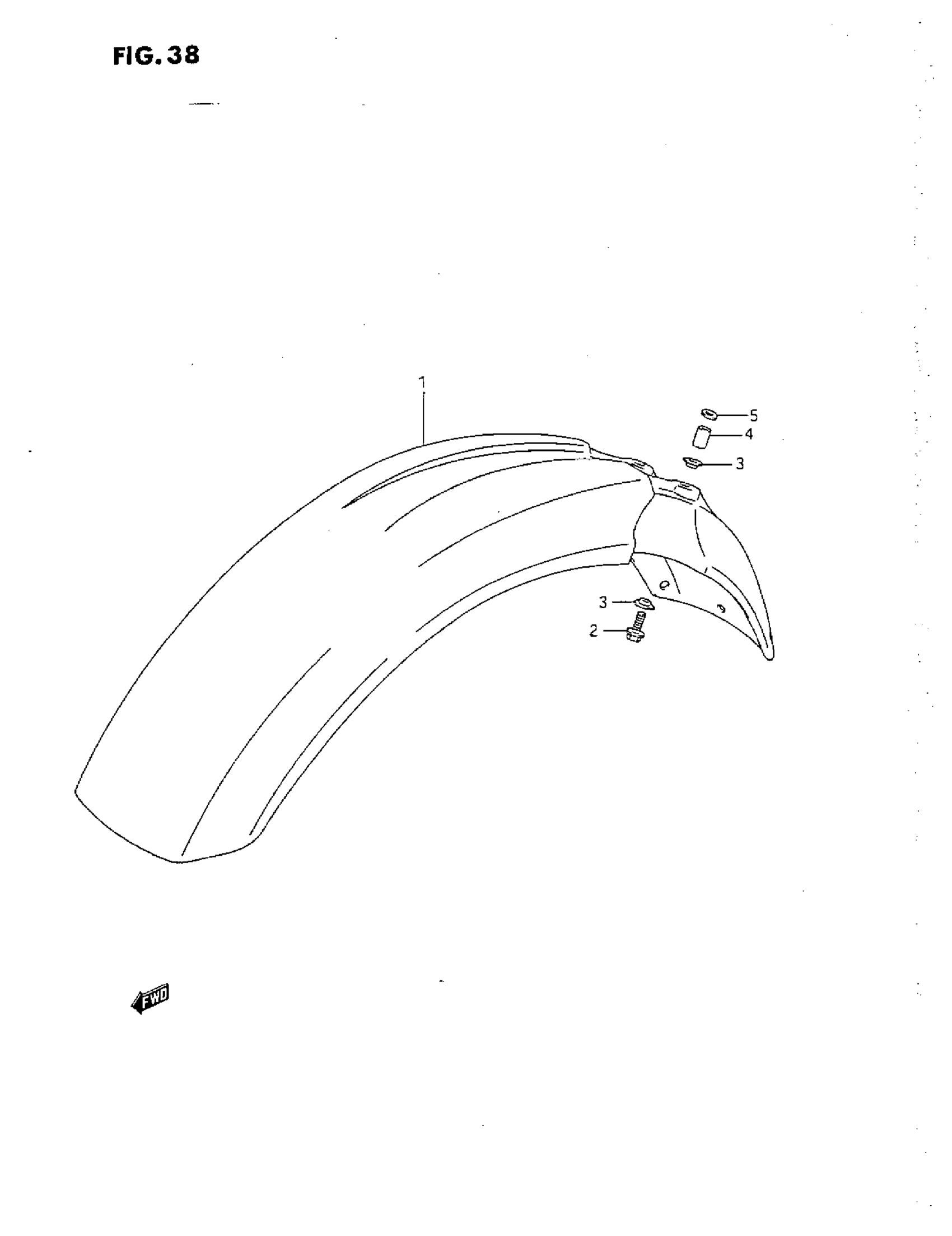

Suzuki DR650S (1993) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (WHITE)

53111-14D11-30H

$136.88

2

BOLT | MODEL N/P This part replaces 01517-06307.

01550-06307

$2.69

2

BOLT | MODEL R This part replaces 01550-06303.

01550-0630A

$2.32

3

WASHER (6.3X16X1)

09169-06053

$1.49

4

SPACER | MODEL N/P This part replaces 09180-06110.

09180-06295

$2.88

4

SPACER | MODEL R This part replaces 09180-06128.

09180-06295

$2.88

5

WASHER This part replaces 09160-06006.

09160-06084

$1.78
