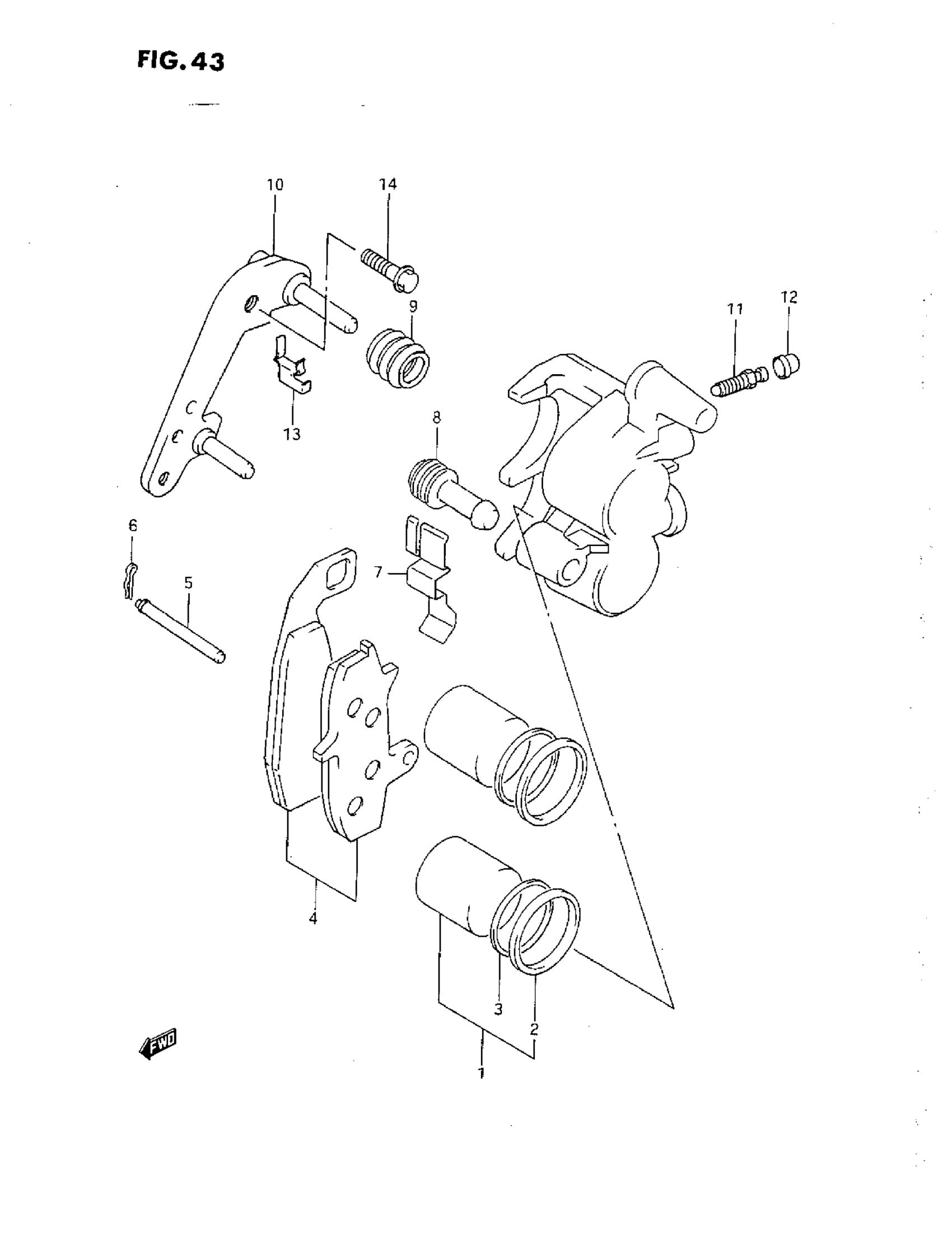

Suzuki DR650S (1993) FRONT CALIPER Diagram

#

Description
Price

1

PISTON SET This part replaces 59300-44841.

59300-44842

Unavailable

2

SEAL,PISTON This part replaces 59107-27A10.

59107-27A20

$13.30

3

SEAL, WIPER

59108-27A10

$10.09

4

PAD SET

59300-44850

Unavailable

5

.PIN, PAD This part replaces 59141-44B00.

59141-44B01

$9.09

6

.CLIP, PAD PIN

69142-45000

$4.34

7

SPRING

59315-44B00

Unavailable

8

.INSULATOR, AXLE

59313-36500

$5.99

9

BOOT

59312-44B00

Unavailable

10

BRACKET

59350-44B00

Unavailable

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

GUIDE, PAD

59316-44B00

Unavailable

14

BOLT (8X29) This part replaces 09103-08156.

09103-08409

$4.17
