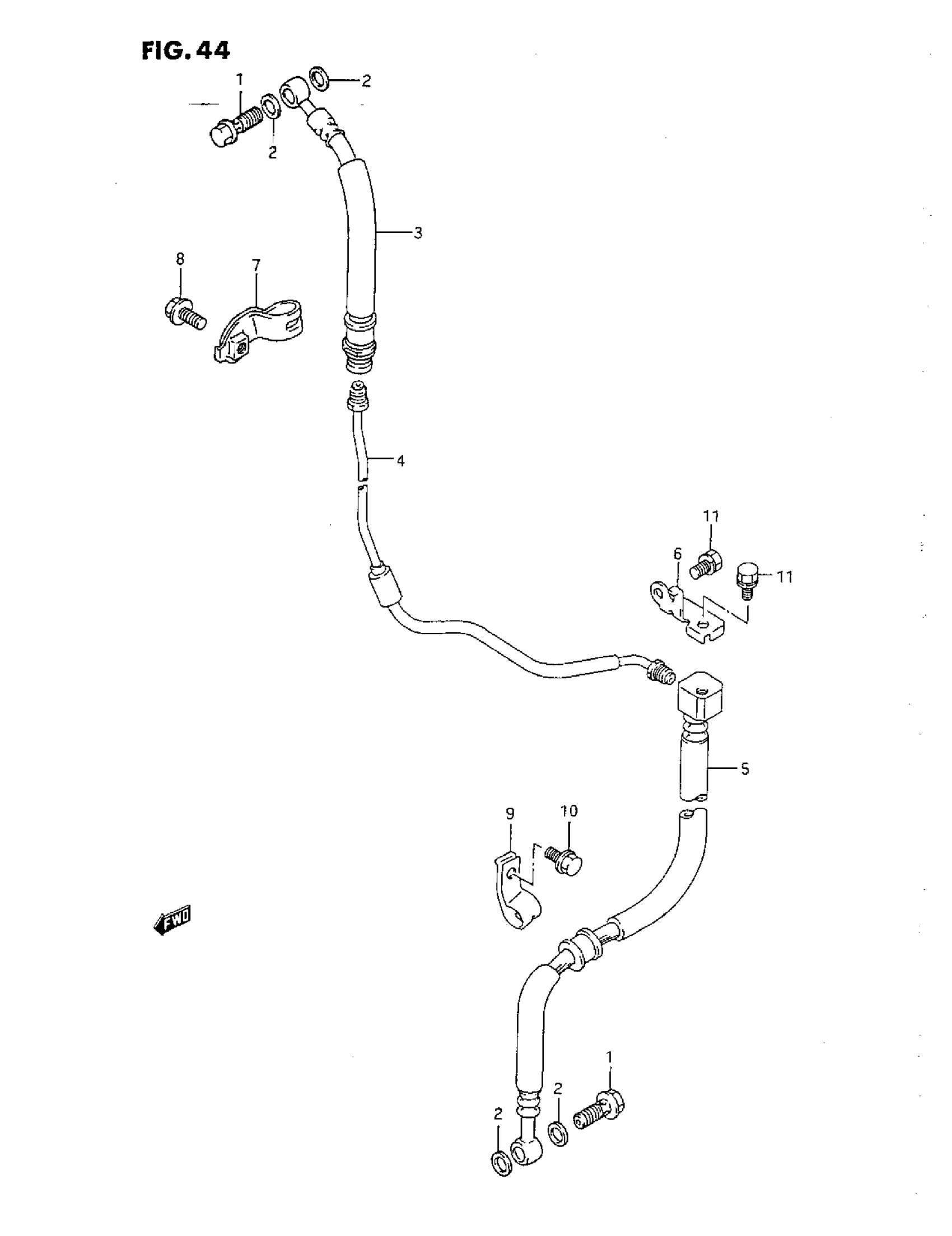

Suzuki DR650S (1993) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOLT | MODEL N/P

09360-10017

$3.42

1

UNION | MODEL R This part replaces 09360-10039.

09360-10061

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE, FRONT BRAKE NO.1

59480-12E00

Unavailable

4

PIPE, FRONT BRAKE

59250-12E01

Unavailable

5

HOSE, FRONT BRAKE NO.2

59240-12E00

Unavailable

6

BRACKET, BRAKE HOSE NO.2

59243-12D00

Unavailable

7

CLAMP, BRAKE HOSE NO.1

59460-12E00

Unavailable

8

BOLT, CLAMP | MODEL N/P This part replaces 01517-06125.

01550-0612A

$1.97

8

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

9

CLAMP, BRAKE HOSE NO.2

59268-12D00

Unavailable

10

BOLT, CLAMP NO.2

01547-06127

$1.65

11

BOLT | MODEL N/P This part replaces 01137-06105.

01570-0610A

Unavailable

11

BOLT | MODEL R This part replaces 01570-06103.

01570-0610A

Unavailable
