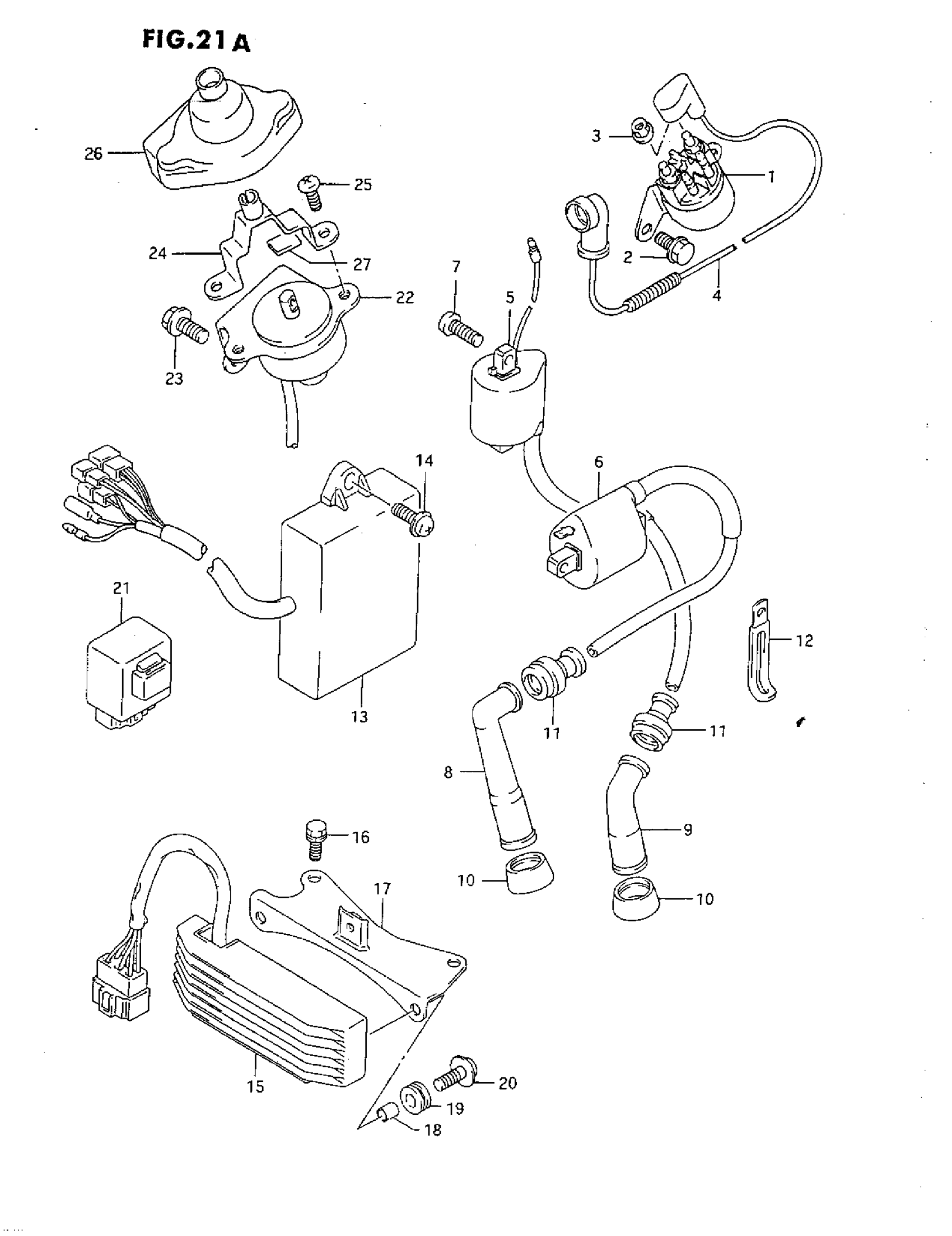

Suzuki DR650S (1993) ELECTRICAL (R) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR

31800-49100

$97.31

2

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR

33810-12E00

Unavailable

5

COIL ASSY, IGNITION

33410-12D10

Unavailable

6

COIL ASSY, IGNITION

33410-12D20

Unavailable

7

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

8

CAP, SPARK PLUG INNER

33510-45010

$24.99

9

CAP, SPARK PLUG OUTER

33510-43010

$24.99

10

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

12

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

13

CDI UNIT

32900-12D10

Unavailable

14

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

15

RECTIFIER ASSY This part replaces 32800-12E00.

32800-12E01

$320.45

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

17

BRACKET

32830-12E00

Unavailable

18

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

19

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

20

SCREW

09136-06081

$2.26

21

CONTROL UNIT, DECOMP

32910-31D00

Unavailable

22

SOLENOID ASSY, DECOMP

33970-12D00

Unavailable

23

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

24

HOLDER, DECOMP CABLE

33971-12D00

Unavailable

25

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

26

COVER, DECOMP

33973-12D00

Unavailable

27

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$6.03
