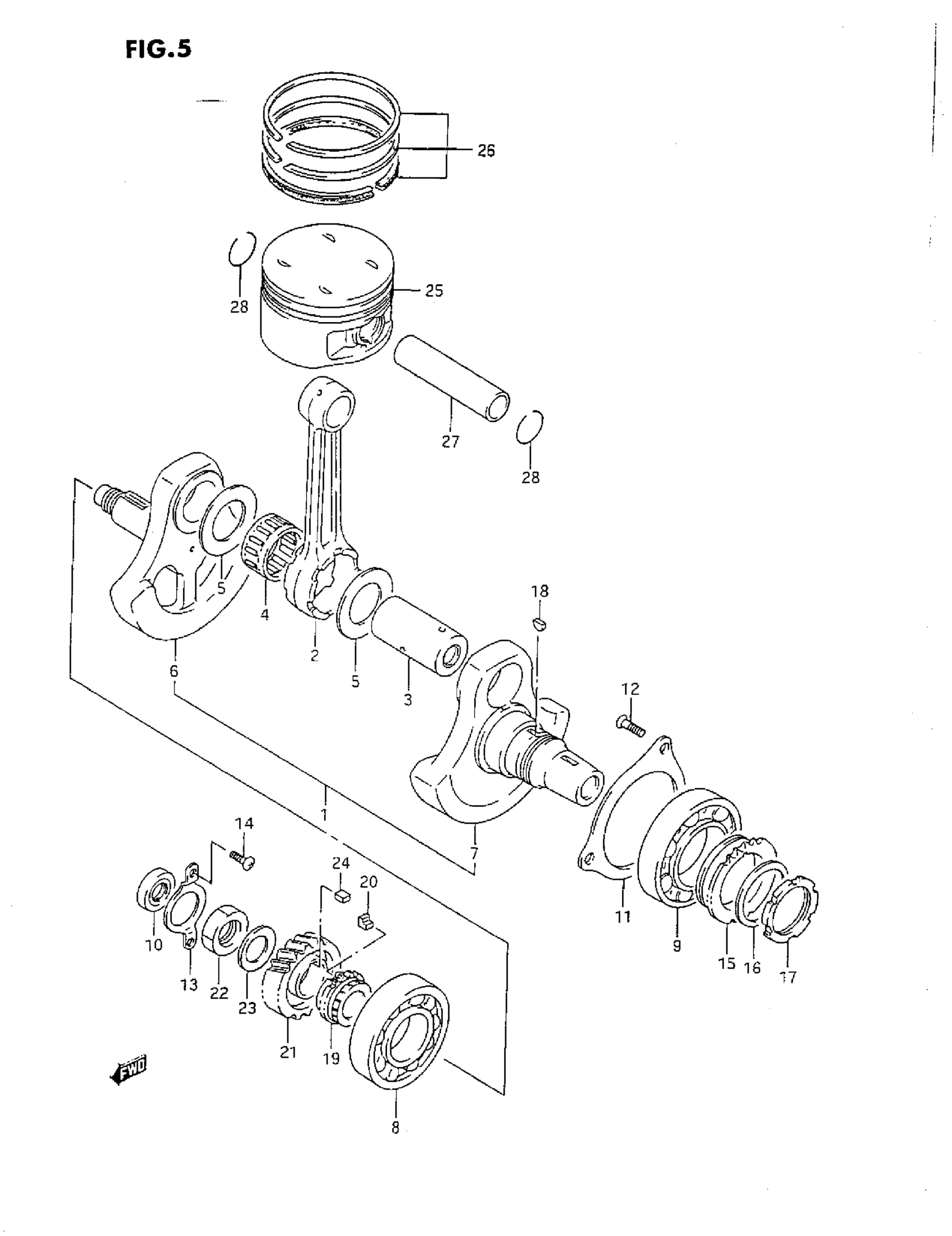

Suzuki DR650S (1993) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL N/P

12200-12D00

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 12200-12D10.

12200-12D20

Unavailable

2

ROD, CONNECTING

12161-12D00

Unavailable

3

PIN, CRANK This part replaces 12210-12D00.

12210-12D10

$89.43

4

RN 35X45X25 BRG This part replaces 09263-35031.

09263-35032

Unavailable

5

WASHER

09160-35005

$9.32

6

CRANKSHAFT, RH | MODEL N/P

12221-12D01

Unavailable

6

CRANKSHAFT, RH | MODEL R

12221-12D11

Unavailable

7

CRANKSHAFT, LH | MODEL N/P

12261-12D01

Unavailable

7

CRANKSHAFT, LH | MODEL R

12261-12D10

Unavailable

8

BEARING, RH (35X80X21)

09262-35009

$87.52

9

BEARING, LH This part replaces 09262-45003.

09262-45011

$88.02

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

PLATE, LH

12541-37400

Unavailable

12

SCREW | MODEL N/P

02122-06167

$1.49

12

SCREW | MODEL R This part replaces 02122-06163.

02122-0616A

$1.49

13

PLATE, RH

12548-37400

$6.37

14

SCREW | MODEL N/P

02112-05087

$1.49

14

SCREW | MODEL R This part replaces 02112-05083.

02112-0508A

$1.49

15

SPROCKET, BALANCER DRIVE NT:2 | MODEL N/P This part replaces 12662-37401.

12662-37402

Unavailable

15

SPROCKET, BALANCER DRIVE NT:25 | MODEL R

12662-37402

Unavailable

16

WASHER

09164-40003

Unavailable

17

NUT

12664-44B00

Unavailable

18

KEY

08341-31039

$1.89

19

SPROCKET, DRIVE (NT:21)

12731-37400

Unavailable

20

KEY

12749-32400

Unavailable

21

GEAR, PRIMARY DRIVE (NT:30)

21111-12D00

Unavailable

22

NUT This part replaces 09140-20008.

09140-20013

$4.26

23

LOCK WASHER

09164-20003

$3.85

24

KEY, GEAR

09421-07002

Unavailable

25

PISTON | -E.NO.101082 This part replaces 12111-12D06-0E0.

12111-12D09-0F0

Unavailable

25

PISTON | E.NO.101083- This part replaces 12111-12D08-0F0.

12111-12D09-0F0

Unavailable

25

PISTON SET,OS:0 | OPT, -E.NO.101082 This part replaces 12111-12D06-050.

12100-12D01-050

Unavailable

25

PISTON SET,OS:0 | OPT, E.NO.101083- This part replaces 12111-12D08-050.

12100-12D01-050

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT, -E.NO.101082 This part replaces 12111-12D06-100.

12100-12D01-100

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT, E.NO.101083- This part replaces 12111-12D08-100.

12100-12D01-100

Unavailable

26

RING SET, PISTON

12140-12D11

Unavailable

26

RING SET, PISTON (OS:0.5) | OPT

12140-12D11-050

Unavailable

26

RING SET, PISTON (OS:1.0) | OPT

12140-12D11-100

Unavailable

27

PIN, PISTON

12151-14A01

$23.40

28

CIRCLIP

09381-23003

$1.49
