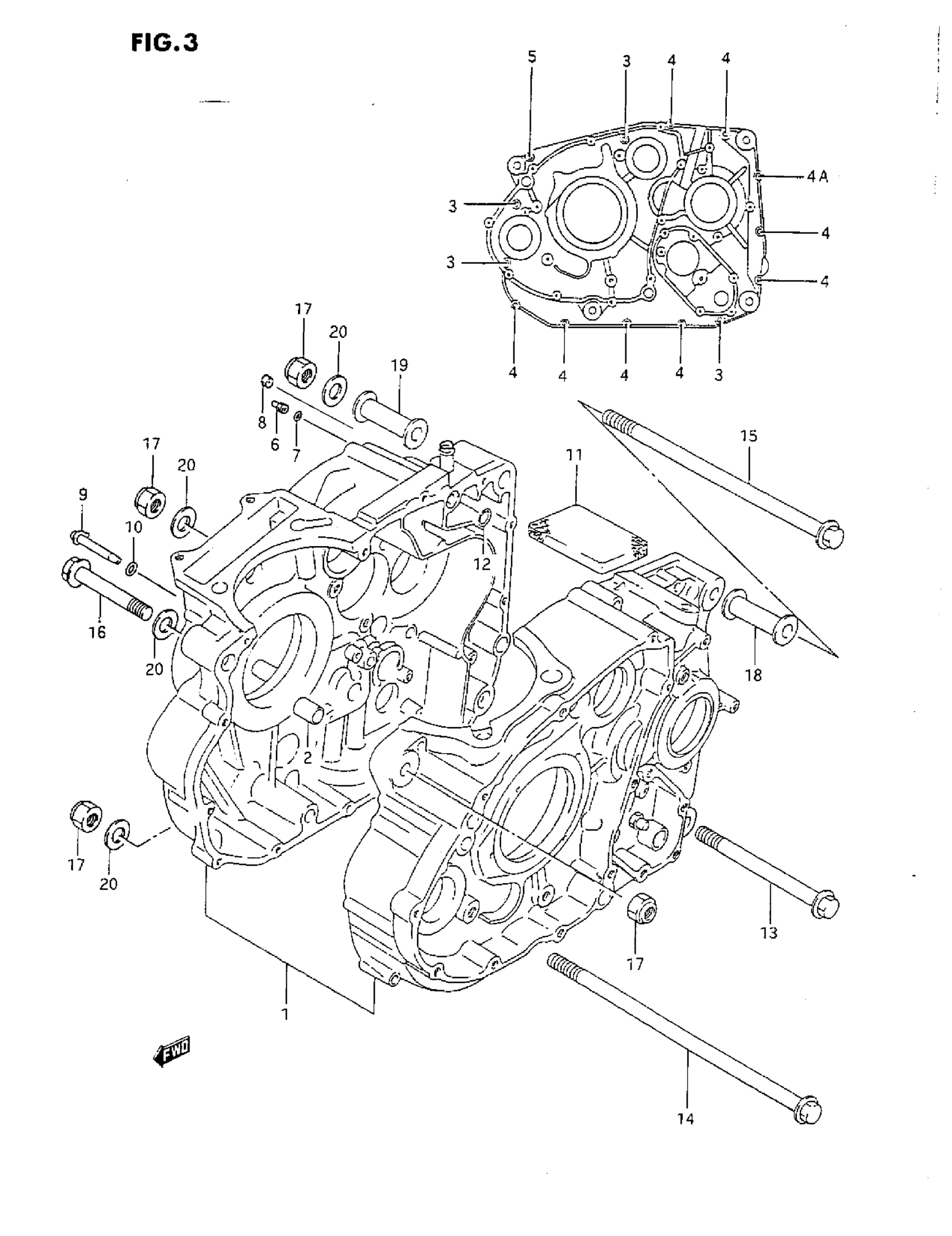

Suzuki DR650S (1993) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11301-12850.

11301-12851

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT (6X6O) | MODEL N/P

01547-06607

$3.18

3

BOLT | MODEL R This part replaces 01547-06603.

01547-0660B

$3.18

4

BOLT (6X4O) | MODEL N/R

01547-06407

$2.32

4

BOLT | MODEL R This part replaces 01547-06403.

01547-0640B

$2.75

4

BOLT (6X4O)

01547-06407

$2.32

5

BOLT (6X3O) | MODEL N/P

01547-06307

$2.03

5

BOLT, FINAL GEAR CASE | MODEL R This part replaces 01547-06303.

01547-0630B

$2.73

6

JET, OIL

09493-24012

Unavailable

7

O-RING

09280-04004

$1.91

8

JET, OIL GALLERY

11180-43410

Unavailable

9

PIPE, PISTON COOLING

11390-12D01

Unavailable

10

O RING, CRANKCASE (ID:7.8) | MODEL N This part replaces 09280-08016.

09280-08012

$3.68

10

O-RING | MODEL P/R

09280-08012

$3.68

11

SEPARATOR, OIL BREATHER This part replaces 11328-14A02.

11328-14A03

Unavailable

12

.O RING (D:1.9,ID:8.6) | MODEL N This part replaces 09280-09004.

09280-09005

$3.70

12

.O RING (D:1.9,ID:8.6) | MODEL P/R

09280-09005

$3.70

13

BOLT (1OX13O)

09103-10237

$9.68

14

BOLT,10X230 This part replaces 09103-10238.

09103-10238-XC0

$20.10

15

BOLT (1OX235)

09103-10239

$20.90

16

BOLT (1OX8O)

09103-10240

$6.28

17

NUT, REAR SWGARM BRACKET | MODEL N/P This part replaces 09159-10044.

09159-10115

$3.55

17

NUT, REAR SWGARM BRACKET | MODEL R This part replaces 09159-10058.

09159-10115

$3.55

18

SPACER (L:55)

11610-14A00

Unavailable

19

SPACER (L:65)

11610-45410

Unavailable

20

WASHER, KNUCKLE END | MODEL N/P This part replaces 08322-11104.

08322-0110A

$1.84

20

WASHER, KNUCKLE END | MODEL R This part replaces 08322-01103.

08322-0110A

$1.84
