1993 Suzuki DR650S Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

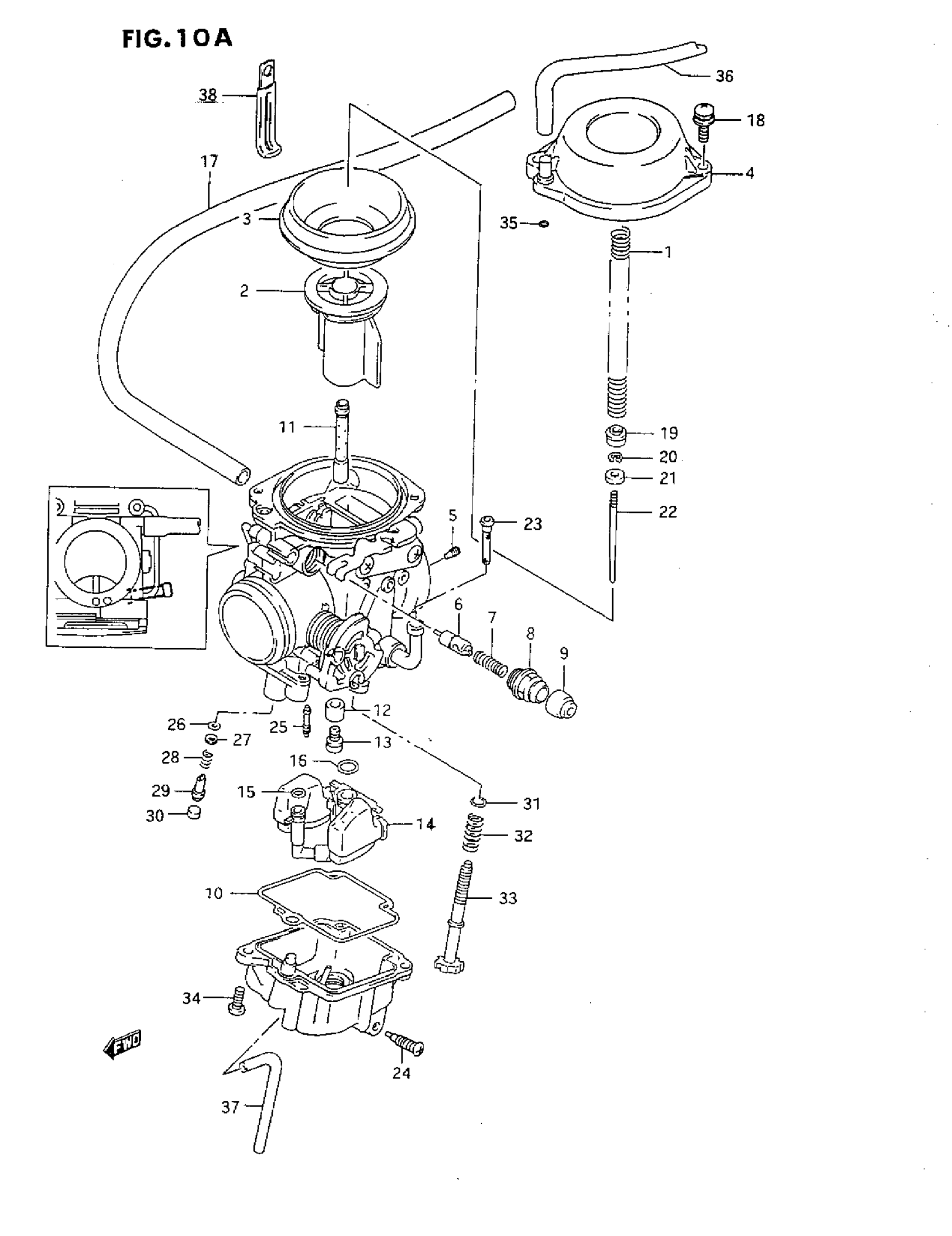

1993 Suzuki DR650S Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

13200-12EF0

1
Out of stock

1

CARBURETOR ASSY | CALIFORNIA ONLY

13200-12EG0

1
Out of stock

1

SPRING

13417-17D00

1
Out of stock

2

VALVE, PISTON

13501-12D00

1
Out of stock

3

.DIAPHRAGM This part replaces 13507-07D00.

13507-07D02

1
Out of stock

4

COVER, DIAPHRAGM

13502-12D00

1
Out of stock

5

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

1
Out of stock

6

PLUNGER ASSY

13411-12D00

1
Out of stock

7

SPRING

13417-22010

1
Out of stock

8

HOLDER, GUIDE

13418-43410

1

$7.20

In stock

9

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

10

GASKET, FLOAT CHAMBER

13258-44B00

1
Out of stock

11

JET, NEEDLE (Y-2)

09494-00754

1
Out of stock

12

RING

13331-07D00

1
Out of stock

13

JET, MAIN (137.5)

09491-27010

1
Out of stock

14

FLOAT/NEEDLE VALVE ASSY This part replaces 13250-12E00.

13250-12EH0

1
Out of stock

15

1

$2.01

In stock

16

1

$5.97

In stock

17

HOSE(6.5X11.5X6 | L:600->500 This part replaces 09354-65113-600.

09355-65001-600

1
Out of stock

18

SCREW This part replaces 02112-75163.

02112-7516A

2
Out of stock

19

RING

13331-12D00

1
Out of stock

20

E RING

13394-31210

1
Out of stock

21

RING This part replaces 13387-12E00.

13387-07D00

1
Out of stock

22

NEEDLE, JET (6F10-1)

13383-12E20

1
Out of stock

23

FILTER

13236-12C00

1
Out of stock

24

1

$4.97

In stock

25

JET, PILOT (52.5)

09492-52010

1
Out of stock

26

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

27

WASHER

13291-29900

1
Out of stock

28

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

29

SCREW, PILOT

13279-47070

1

$13.33

In stock

30

PLUG

13281-05A00

1
Out of stock

31

WASHER

13427-38300

1

$2.17

In stock

32

SPRING

13271-24D00

1
Out of stock

33

ADJUSTER

13267-13D01

1
Out of stock

34

SCREW This part replaces 13601-05148.

13601-05148-XC0

2
Out of stock

35

O-RING

13278-02340

1
Out of stock

36

HOSE(4.5X8.5X60 | L:600->250 This part replaces 09354-45853-600.

09355-45001-600

1
Out of stock

37

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

1
Out of stock

38

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock
