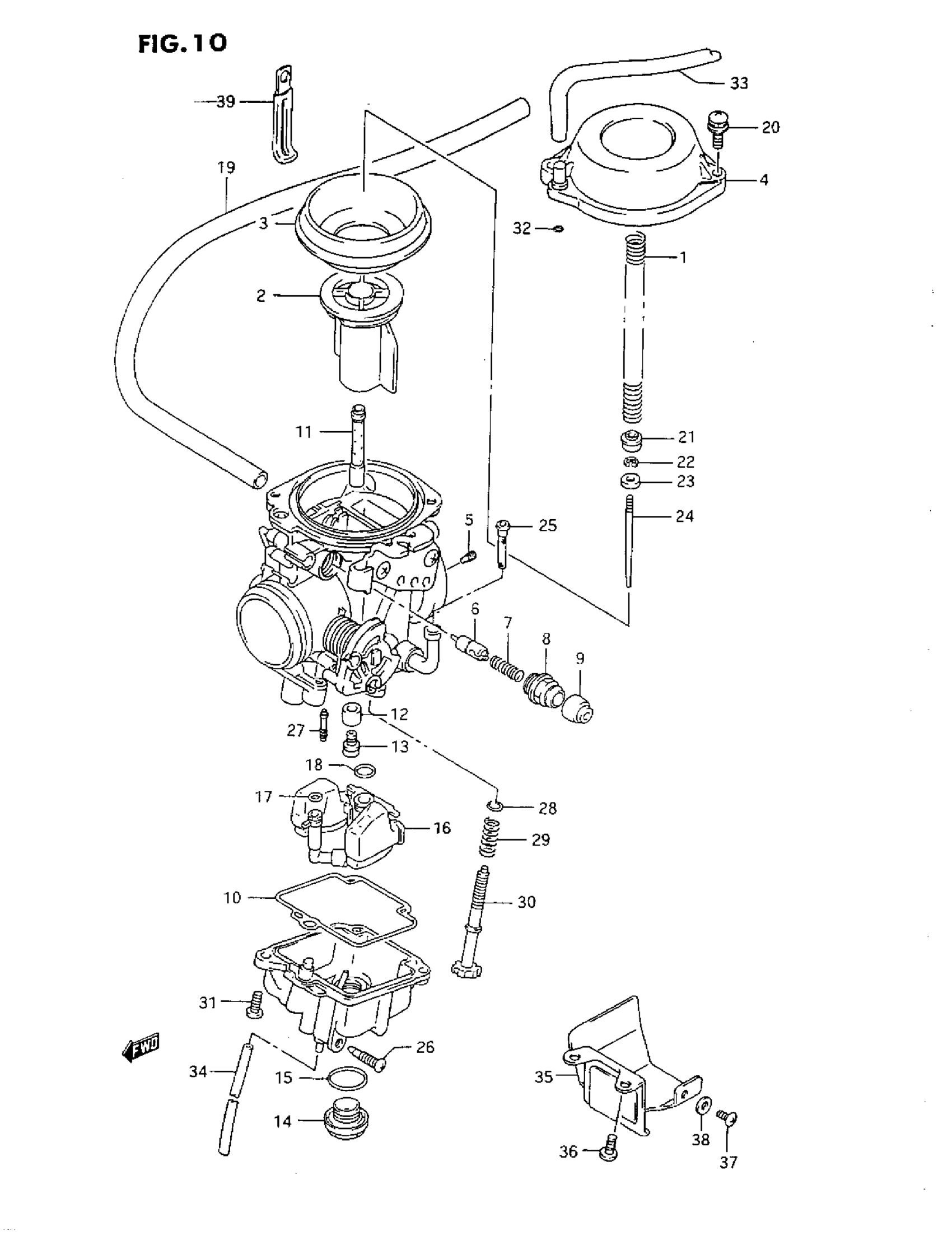

Suzuki DR650S (1993) CARBURETOR (N/P) Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-12E20

Unavailable

1

CARBURETOR ASSY | CALIFORNIA ONLY

13200-12E60

Unavailable

1

SPRING

13417-17D00

$6.75

2

VALVE, PISTON

13501-12D00

Unavailable

3

.DIAPHRAGM This part replaces 13507-07D00.

13507-07D02

$34.55

4

COVER, DIAPHRAGM

13502-12D00

Unavailable

5

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

$17.73

6

PLUNGER ASSY

13411-12D00

$29.97

7

SPRING

13417-22010

$3.26

8

HOLDER, GUIDE

13418-43410

$6.61

9

.CAP This part replaces 13681-04010.

13681-04011

$4.51

10

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

11

JET, NEEDLE (Y-2)

09494-00754

Unavailable

12

RING

13331-07D00

$7.48

13

JET, MAIN (137.5)

09491-27010

$13.18

14

PLUG, DRAIN

13247-32210

$17.20

15

O-RING, DRAIN

13249-41310

$4.03

16

FLOAT/NEEDLE VALVE ASSY This part replaces 13250-12E00.

13250-12EH0

$127.30

17

.O RING

13374-46710

$4.09

18

O RING This part replaces 13374-44080.

13374-35C00

$5.48

19

HOSE(6.5X11.5X6 This part replaces 13683-15A30.

09355-65001-600

$10.83

20

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

21

RING

13331-12D00

$7.48

22

E RING

13394-31210

$4.37

23

RING This part replaces 13387-12E00.

13387-07D00

$5.12

24

NEEDLE, JET (6F10-1)

13383-12E20

Unavailable

25

FILTER

13236-12C00

$9.73

26

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

27

JET, PILOT (52.5)

09492-52010

$13.43

28

WASHER

13427-38300

$2.17

29

SPRING

13271-24D00

Unavailable

30

ADJUSTER This part replaces 13267-28A00.

13267-14D10

Unavailable

31

SCREW This part replaces 02112-05168.

02112-05167

$1.97

32

O-RING

13278-02340

$1.91

33

HOSE(4.5X8.5X60 This part replaces 13684-36510.

09355-45001-600

$8.55

34

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

$7.83

35

PLATE | CALIFORNIA ONLY

13411-14A80

Unavailable

36

SCREW | CALIFORNIA ONLY This part replaces 13602-05129.

02112-05127

$1.97

37

SCREW | CALIFORNIA ONLY This part replaces 13602-04068.

02112-0406B

$1.55

38

WASHER | CALIFORNIA ONLY This part replaces 13606-02340.

08322-0104A

$1.92

39

CLAMP This part replaces 09404-06402.

09404-06039

$1.73
