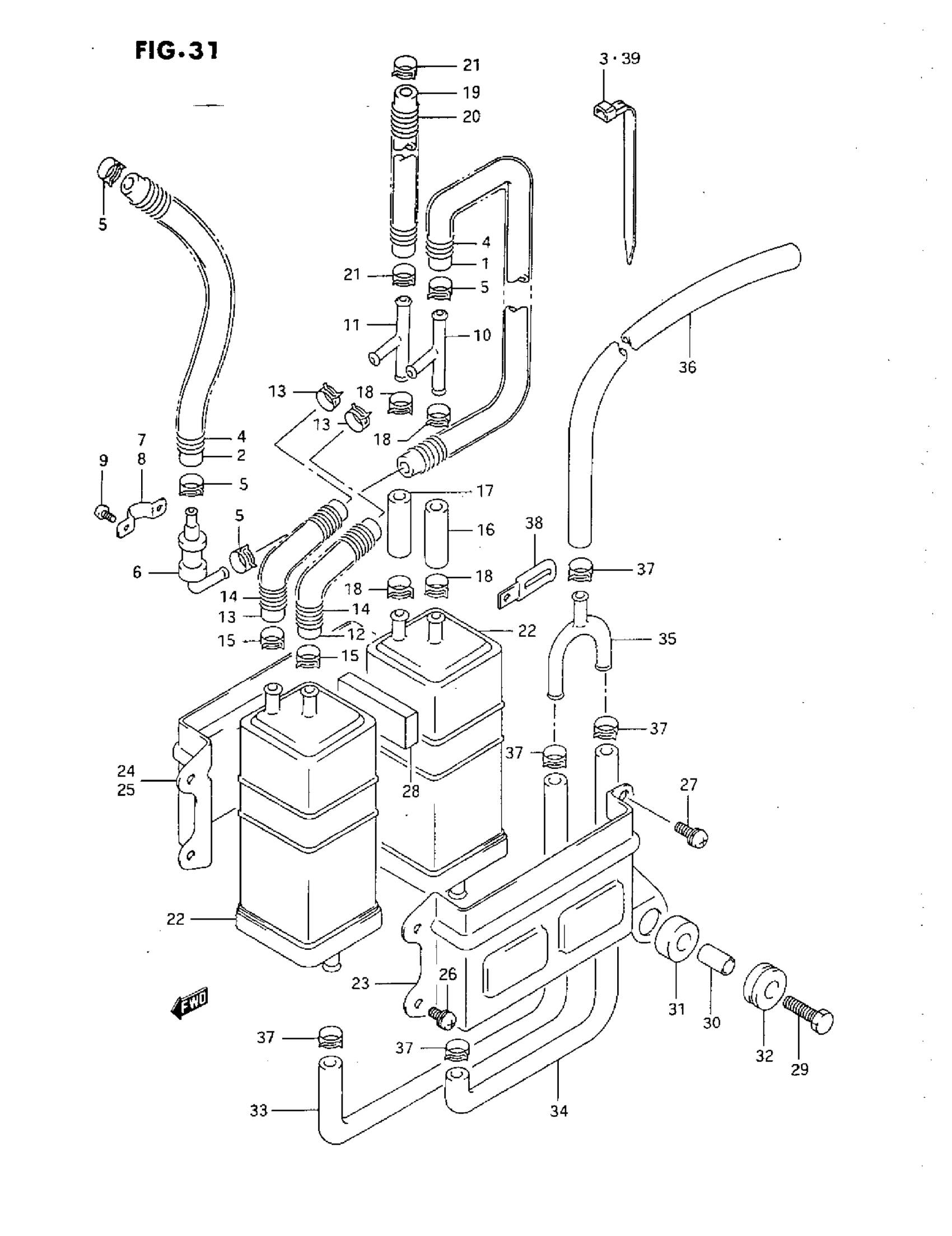

Suzuki DR650S (1993) CANISTER (FOR CALIFORNIA, N/P) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-300.

09355-54115-600

$14.59

2

HOSE, TANK & BREATHER VALVE | L:600->390 This part replaces 09358-54116-600.

09355-54115-600

$14.59

3

CLAMP

09407-18402

$2.19

4

SPRING

09440-13044

Unavailable

5

CLIP This part replaces 09401-11410.

09401-11413

$2.26

6

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

10

PIPE, IN

44950-14A00

Unavailable

11

PIPE, OUT

44940-14A00

Unavailable

12

HOSE, IN LH

09343-05306

Unavailable

13

HOSE, OUT LH

09343-05510

Unavailable

14

SPRING

09440-13044

Unavailable

15

CLIP This part replaces 09401-11410.

09401-11413

$2.26

16

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-300.

09355-54115-600

$14.59

17

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-300.

09355-54115-600

$14.59

18

CLIP This part replaces 09401-11410.

09401-11413

$2.26

19

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-600.

09355-54115-600

$14.59

20

SPRING This part replaces 09440-13037.

09440-13037-XC0

Unavailable

21

CLIP This part replaces 09401-11410.

09401-11413

$2.26

22

CANISTER

17210-14A00

$156.07

23

PLATE, OUTER

44881-14A00

Unavailable

24

PLATE, INNER

44890-14C00

Unavailable

25

CUSHION (10X30X2)

44894-24A00

$1.72

26

SCREW This part replaces 02112-75125.

02112-7512A

$2.42

27

SCREW This part replaces 02112-75165.

02112-7516A

$2.41

28

CUSHION, CENTER

44883-14A00

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 09116-06154.

09116-06129

Unavailable

30

SPACER,6.5X9X19 This part replaces 09180-06162.

09180-06272

$3.05

31

SPACER, OUTER

09180-10132

Unavailable

32

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

33

HOSE, CANISTER DRAIN FRONT

44884-12E00

Unavailable

34

HOSE, CANISTER DRAIN FRONT This part replaces 44884-14C10.

44884-14C00

Unavailable

35

PIPE, CANISTER DRAIN

44950-14C00

Unavailable

36

HOSE(7X11X600) This part replaces 09352-70113-600.

09352-70119-600

$10.40

37

CLIP This part replaces 09401-11410.

09401-11413

$2.26

38

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

39

CLAMP

09407-14403

$2.26
